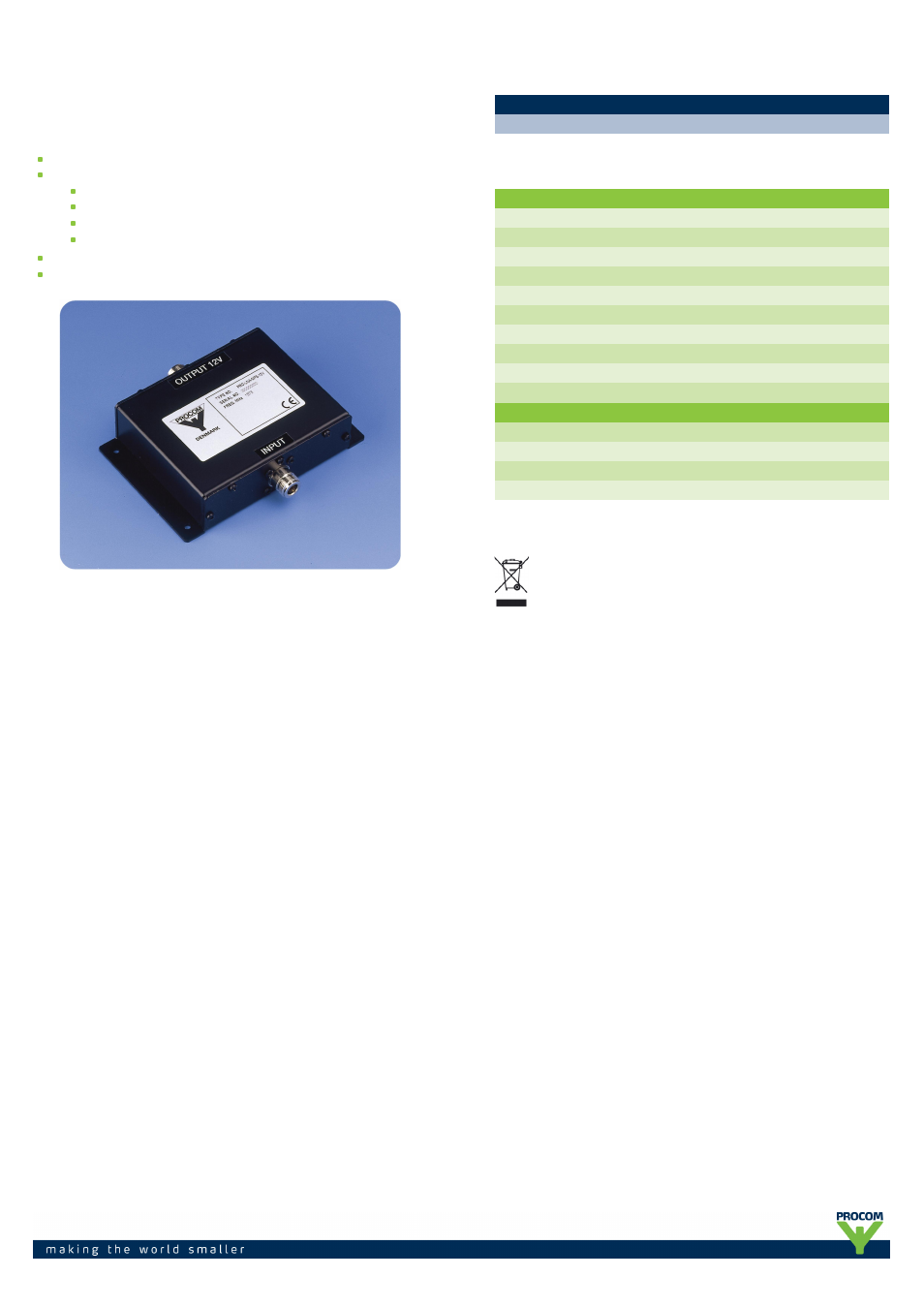

PRO-LNA-GPS-12V
Low-noise Preamplifier for 1575 MHz
DESCRIPTION
Miniature high-dynamic range low-noise preamplifier.
For use where additional preamplification is required:
receivers with long antenna cabling 1.
measuring instruments 2.
antenna distribution systems 3.
scanners 4.
Low noise figure: < 3 dB incl. input filter.
12 V operating voltage (24 V as option).
ORDERING DESIGNATIONS
TYPE NO. PRODUCT NO.
PRO-LNA-GPS-12V 210000307
SPECIFICATIONS
ELECTRICAL
MODEL PRO-LNA-GPS-12V
FREQUENCY RANGE 1575 MHz
GAIN [S21] 27 dB
NOISE FIGURE < 3 dB (incl. input filter)
3rd ORDER INTERCEPT POINT > 15 dBm
1 dB COMPRESSION POINT
> 10 dBm
ISELECTIVITY > 20 dB down at ± 100 MHz
IMPEDANCE Nom. 50 Ω
SWR (INPUT & OUTPUT) Max. 2.5, typically < 2.0
SUPPLY POWER 12 V @ 50 mA
MECHANICAL
TEMP. RANGE -30° C → +60° C
CONNECTORS N-female
DIMENSIONS (L x W x H) 138 (incl. conn.) x 152 (incl. flanges) x 35 mm
WEIGHT Approx. 500 g
PROCOM A/S reserve the right to amend specifications
without prior notice.
