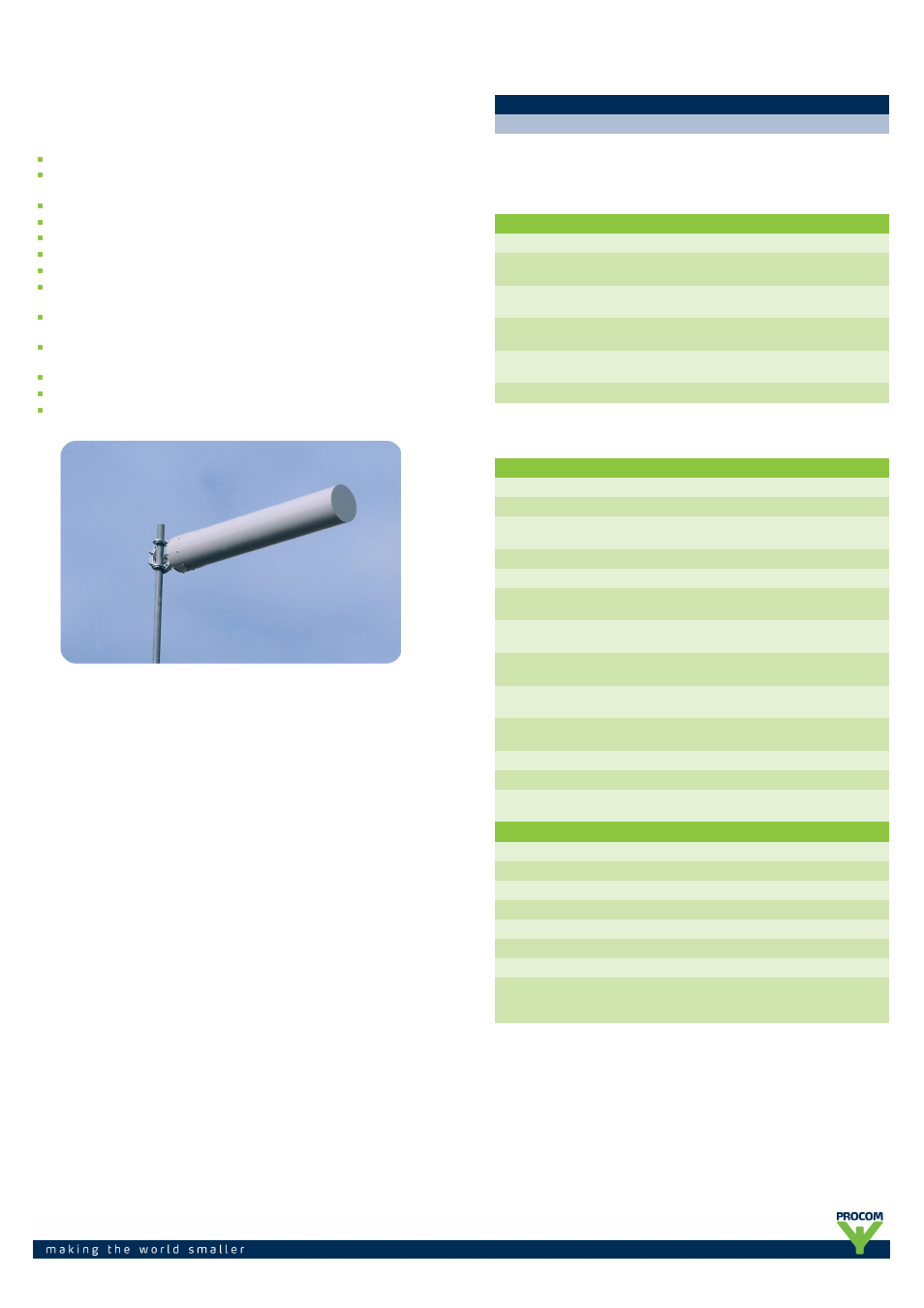

R 900/1800-12/14
Dual Band Yagi Antenna for the 900 & 1800 MHz Bands
DESCRIPTION
Dual band shrouded yagi antenna.
Covers the 900 MHz GSM band (880 – 960 MHz) as well as the
1800 MHz DCS-1800/PCN band (1710 – 1890 MHz).
12 dBd gain on 900 MHz and 14 dBd gain on 1800 MHz.
Linearly polarised with orthogonal polarisations for the two bands.
H-plane beam widths 35° and 29° for the 900 MHz and
1800 MHz bands respectively.
E-plane beam widths 33° and 26° for the two bands.
A sturdy glass reinforced plastic shroud ensures effective protection
against the weather.
All metal parts are DC grounded for noise reduction and lightning
protection.
Materials carefully chosen for minimum electrolytic corrosion and
intermodulation.
Supplied with circular cast alloy clamp for mounting on
25 – 50 mm mast tubes.
Reliable and robust design for optimum performance and long lifetime.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
R 900/1800-12/14 120000066
The antenna is supplied in the standard version with bracket suiting 25 - 50 mm dia. mast tube.
Available for 50 - 75 mm dia. mast tube as an option.
GENERAL SPECIFICATIONS
MODEL R 900/1800-12/14
ANTENNA TYPE Dual band yagi antenna
FREQUENCY GSM: 880–960 MHz
PCN: 1710–1890 MHz
GAIN GSM: 14 dBi 12 dBd
PCN: 16 dBi 14 dBd
H-PLANE BEAM WIDTH
(-3 DB POINTS)
GSM: 35°
PCN: 29°
E-PLANE BEAM WIDTH
(-3 DB POINTS)
GSM: 33°
PCN: 26°
MAXIMUM POWER 50 W
SPECIFICATIONS
ELETRICAL
MODEL R 900/1800-12/14
ANTENNA TYPE Dual band yagi antenna
FREQUENCY GSM: 880 – 960 MHz
PCN: 1710 – 1890 MHz
IMPEDANCE 50 Ω
POLARIZATION Two linear orthogonal
GAIN GSM: 14 dBi 12 dBd
PCN: 16 dBi 14 dBd
H-PLANE BEAM WIDTH
(-3 DB POINTS)
GSM: 35°
PCN: 29°
E-PLANE BEAM WIDTH
(-3 DB POINTS)
GSM: 33°
PCN: 26°
FRONT TO BACK
RATIO
20 dB
BANDWIDTH GSM : 80 MHz
PCN : 180 MHz
SWR ≤ 1.5 (typ. ≤ 1.3)
MAX. POWER 50 W
ANTISTATIC
PROTECTION
All metal parts DC-grounded
MECHANICAL
TEMP. RANGE -25°C → +60°C
CONNECTOR “N” type female
WIND LOAD 244 N @ 160 km/h
COLOUR Grey
SHROUD 183 mm dia. glass fiber tube
DIMENSIONS Length 1300 mm, diameter 183 mm
WEIGHT 5 kg
MOUNTING Supplied with circular cast alloy clamp for mounting
on
25 – 50 mm dia. mast tubes
