Cxl 70-3

CXL 70-3/...

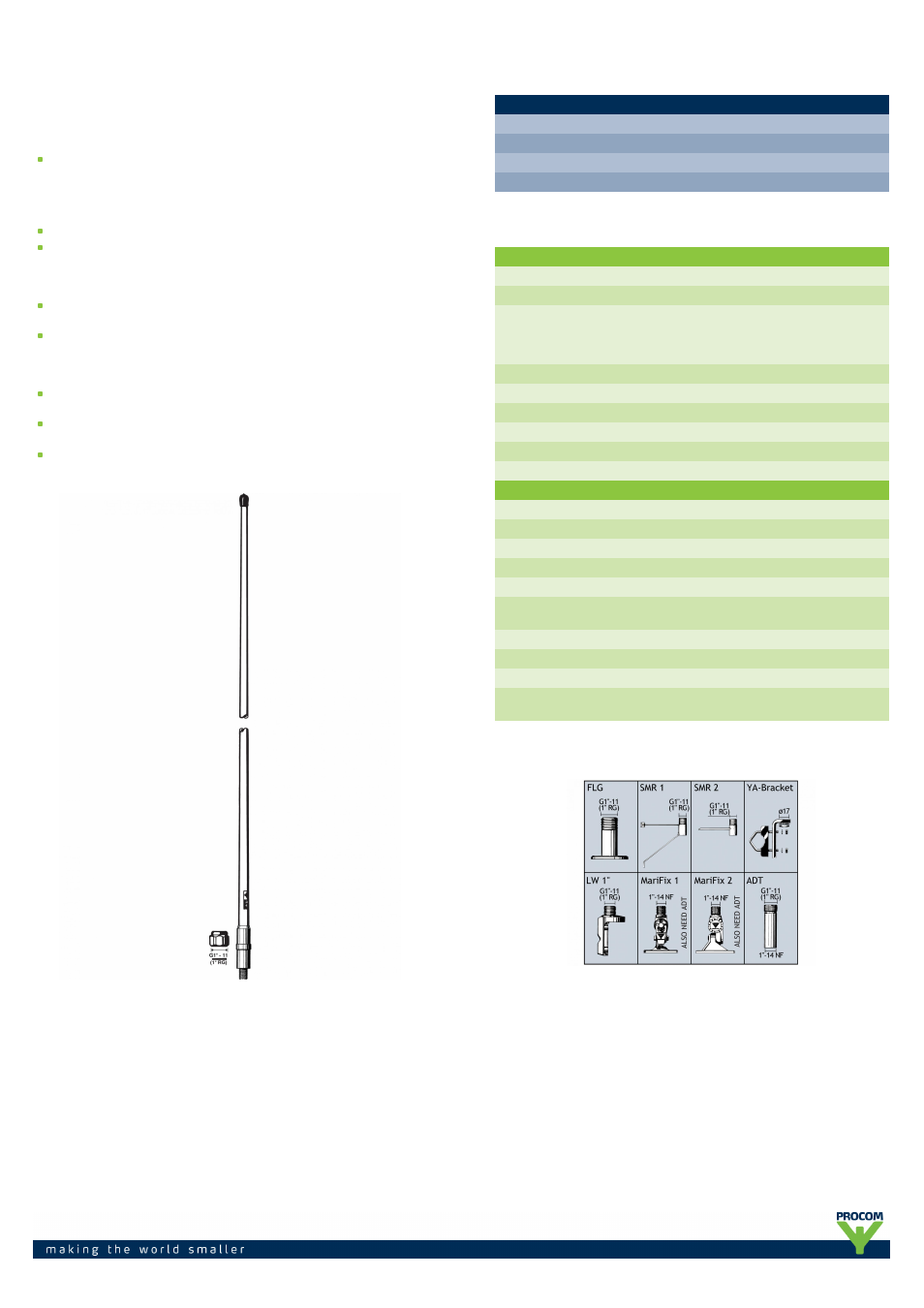

3 dBd Gain Base Station and Marine UHF Antenna
DESCRIPTION
This collinear UHF antenna with 3 dBd gain is developed for use on
board ships as well as on masts, and thanks to the 1” revolving nut
mounting system it can be mounted in the mast, in the auxiliary mast as
well as on the cross-beam. By means of Procom’s flange mount type
“FLG”, it can also be mounted on deck or rooftop.
The CXL 70-3/… is in widespread use in connection with
450 MHz CELLULAR systems. The antenna makes it possible to extend
the – normally land based – CELLULAR telephone system service for
maritime use as well, and here the 3 dBd gain of the antenna comes to
definite advantage.
Bear in mind that the higher the antenna is mounted the better
coverage.
Avoid mounting the antenna parallel with and in the neighbourhood of
other metal parts, such as masts, supporting wires etc. Free mounting
and as high as possible is most preferable, otherwise the SWR and the
radiation diagram will be influenced.
The antenna needs neither loading coils, ground-plane, radials nor other
auxiliary arrangements.
The antenna is a grounded radiator antenna and therefore it shows a
DC-short across the coaxial cable.
A conical glass fibre tube completely encloses the carefully designed
radiating element to assure long dependable service in all climates.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
FREQUENCY
CXL 70-3/s
110000141
380 – 410 MHz
CXL 70-3/f
110000140
406 – 430 MHz
CXL 70-3/l
110000142
420 – 450 MHz
CXL 70-3/h
110000139
440 – 470 MHz
SPECIFICATIONS
ELECTRICAL
MODEL
CXL 70-3/...
ANTENNA TYPE
Coaxial, broad-band
FREQUENCY
CXL 70-3/s : 380 – 410 MHz
CXL 70-3/f : 406 - 430 MHz
CXL 70-3/l : 420 – 450 MHz
CXL 70-3/h: 440 - 470 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
5 dBi 3 dBd
BANDWIDTH
30 MHz
SWR
≤ 1.5
MAX. POWER
150 W
MECHANICAL
TEMP. RANGE
-30°C → +70°C
CONNECTOR
N-female
WIND SURFACE
0.0337 m²
WIND LOAD
43 N @ 160 km/h
COLOUR
Marine white
MATERIALS
Shroud: Polyurethane-coated glass fibre
Mounting bracket: Chromed brass
TOTAL HEIGHT
Approx. 1.3 m (dep. on freq.)
DIA.
In top end: 16 mm; in bottom end: 23 mm
WEIGHT
Approx. 1.2 kg
MOUNTING
On 1” RG (G1” - 11) threaded water pipe or
on optional mounting brackets (see below)
ACCESSORIES (to be ordered separately)
