INSTALLATION
This antenna should be mounted on the car roof to ensure best
omnidirectional coverage.
Mounting can take place exclusively with access from the outside when
drilling an
18 mm dia. hole. Mounting can take place from the inside by drilling a 14
mm dia. hole. When mounting in a 14 mm dia. hole, remove the bottom
plastic ring of the packing gasket with a sharp cutter.
When cleaning the car in car-washing machines, remove the whip using a
spanner, size
9 mm. After wash, refit the whip and tighten it lightly with the spanner.
The MiniMag (abbreviated: MM) is a small, lightweight magnetic mount with
a high attaching effect. A silicone layer applied to the contact surface
protects the car
roof and ensures maximum friction.

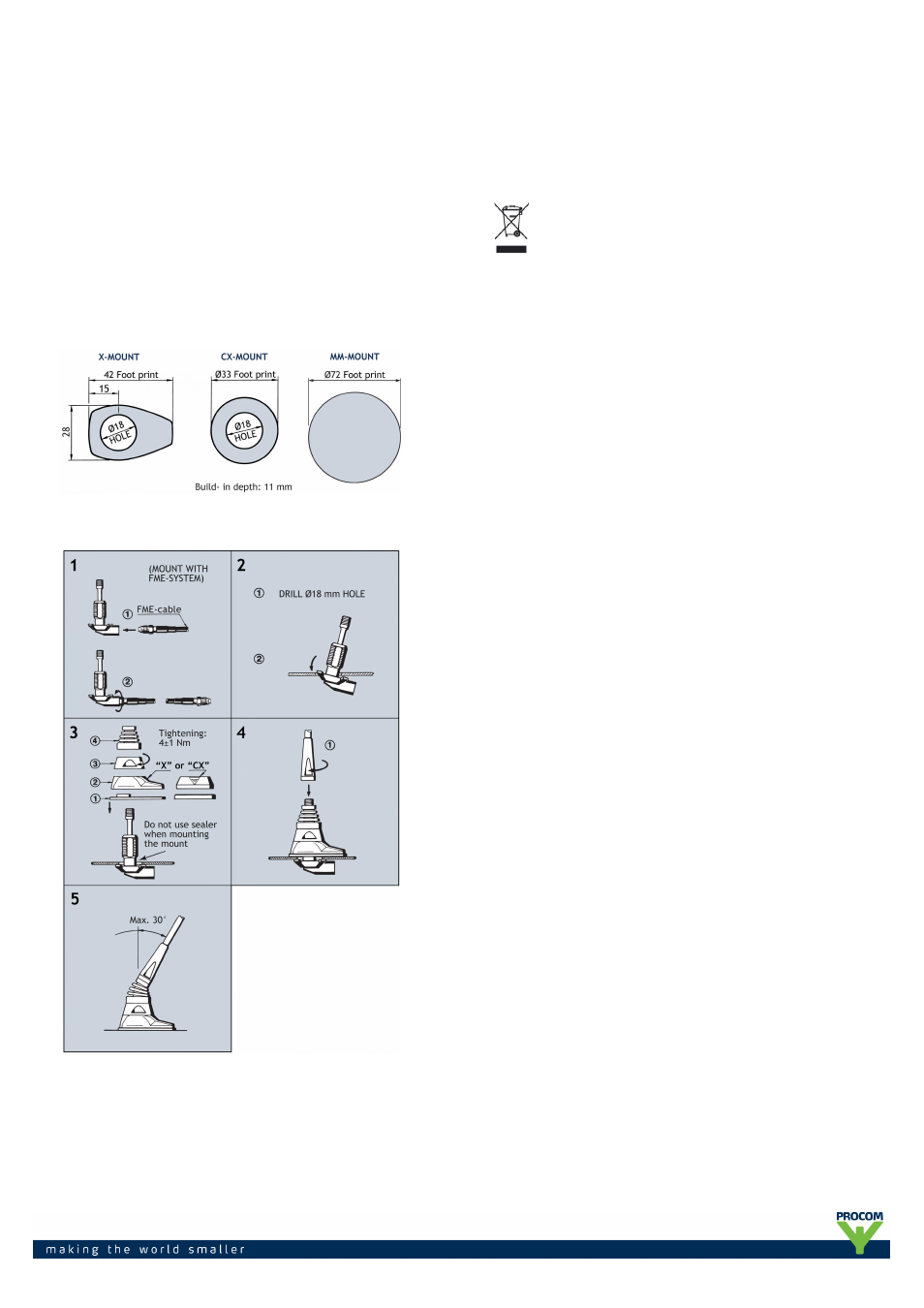

1. INSTALLATION DIMENSIONS
2. INSTALLATION STEP
Do not use sealer on rubber gasket or other places.
3. TUNING
The antenna is delivered factory-tuned and requires no further tuning.
PLEASE NOTE
For safety reasons, when using the MU 7-MM, car speed must not exceed
180 km/h.
PROCOM A/S reserve the right to amend specifications
without prior notice.
16/12/11
