Procom ML 2-Z - Manual

ML 2-Z
¼ λ Mobile Antenna for the 80 MHz Band
DESCRIPTION
Sturdy, general-purpose ¼ λ antenna in professional quality.

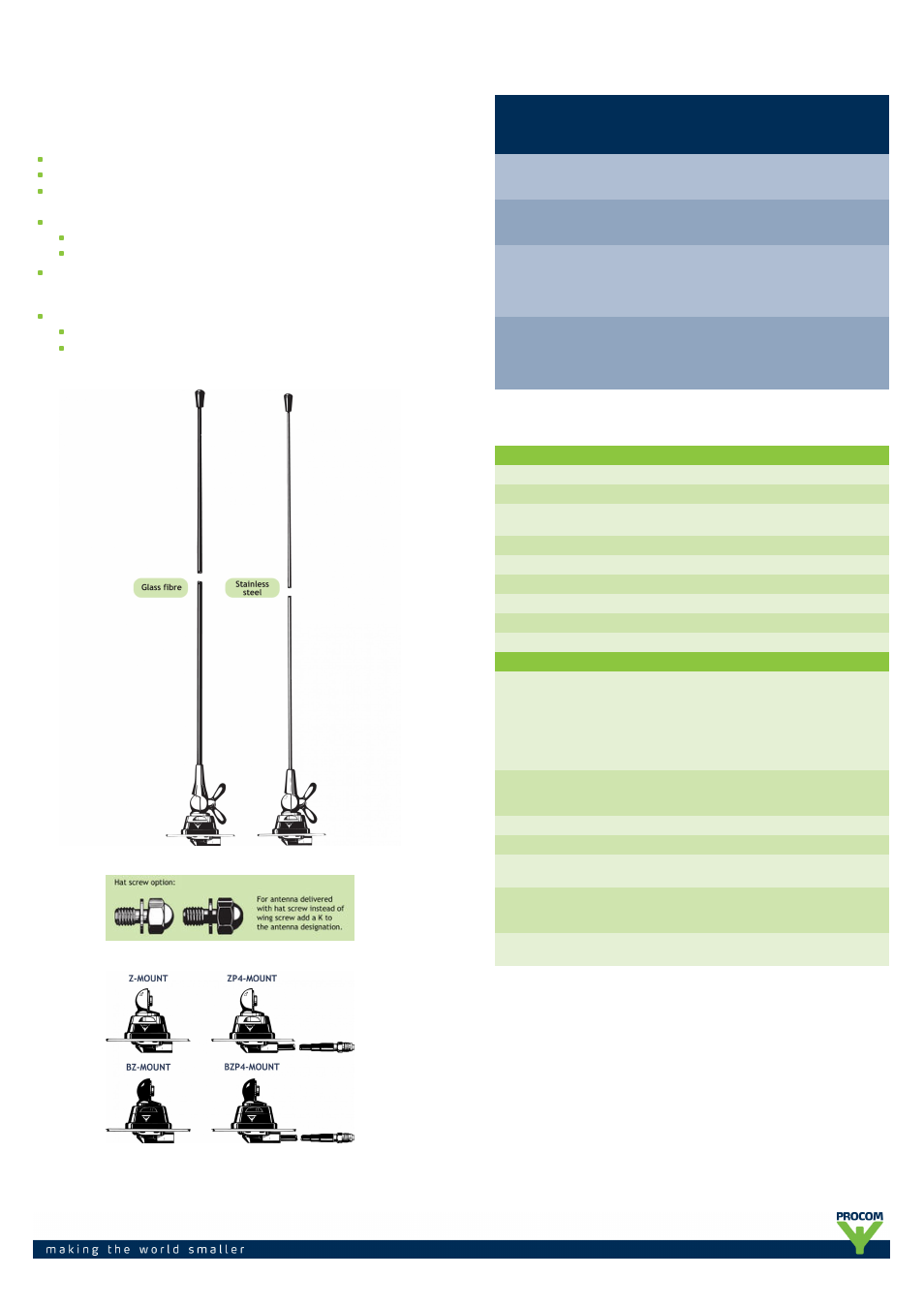

Available with glass fiber or stainless steel whip.
Stainless steel Z-mount with ball-joint and wing screw whip-fastening
system.
Available with bright or black-chromed metal parts (mount and whip):
ML 2-Z…: Bright version
ML 2-BZ…: Black version
Simple mounting exclusively with access from the outside.
Models with roof thickness from 2 mm to 7.5 mm mounting from the
inside.
Choice between two connection principles: Z-mount:
FME-connection (supplied without cable).
ZP4-mount: Permanently attached 4 m cable terminated with FME-
connector.
ORDERING DESIGNATIONS
TYPE
WHIP
GLASS
FIBER
PRODUCT
NO.
TYPE
WHIP
STAINLESS
STEEL
PRODUCT
NO.
MOUNT
ML 2-Z 130000639 ML 2-ZR 130000643 Z-mount with
FME-system
BRIGHT
ML 2-BZ 130000638 ML 2-BZR 130000650 BZ-mount with
FME-system
BLACK
ML 2-ZP4 130000642 ML 2-ZP4R 130000646 ZP4-mount
with
4 m cable and
FME-connector
BRIGHT
ML 2-BZP4 130000641 ML 2-BZP4R 130000648 BZP4-mount
with
4 m cable and
FME-connector
BLACK
SPECIFICATIONS
ELECTRICAL
MODEL ML 2-Z
ANTENNA TYPE ¼ λ mobile whip antenna
FREQUENCY Tunable by cutting within: 66…88 MHz
(Also applicable: 88…175 MHz)
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN 0 dB (acc. to EIA RS-329-1)
BANDWIDTH ≥ 8 MHz @ SWR ≤ 2.0
SWR ≤ 1.3 @ f. res.
MAX. POWER 250 W
MECHANICAL
MATERIALS Whip:
Conical glass fiber or stainless steel
Chromed brass
Mount:
Chromed brass
Weather- and shockproof plastics
Stainless steel
RECOMMENDED
INSTALLATION
TORQUE
7.5 ± 1 Nm
COLOUR Black or bright, see above
HEIGHT Approx. 1.1 m
WEIGHT Z-version: Approx. 170 g
ZP4-version: Approx. 330 g
MOUNTING ø21 mm dia. hole
(For roof thickness 2 mm up to 7.5 mm
mounting hole should be ø22 mm dia.)
ROOF THICKNESS Max. 2.0 mm
(Models up to 7.5 mm on request)
