INSTALLATION
The shadowing effect of the car roof often produces deep nulls in the
radiation pattern from short antennas mounted on trunk or wing. This
problem is solved using the MU 908-X/…-antenna.
Because of the colinear design this antenna provides a satisfactory
omnidirectional gain even when mounted on trunk or wing. The X- and CX-
mounts can be installed anywhere on the car. The oblong X-mount is
especially suitable for mounting on the often very narrow strip on the rear
wing between the trunk lid and the side of the car.
Mounting can take place exclusively with access from the outside when
drilling an 18 mm dia. hole. Mounting can take place from the inside by
drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the
bottom plastic ring of the packing gasket with a sharp cutter.
When cleaning the car in car-washing machines, remove the whip using a
spanner, size 9 mm. After wash, refit the whip and tighten it lightly with the
spanner.
As the mount is internally equipped with a bendable section, the antenna
can always be adjusted to an upright position independent of the tilt angle
of the installation spot (up to 30° tilt).

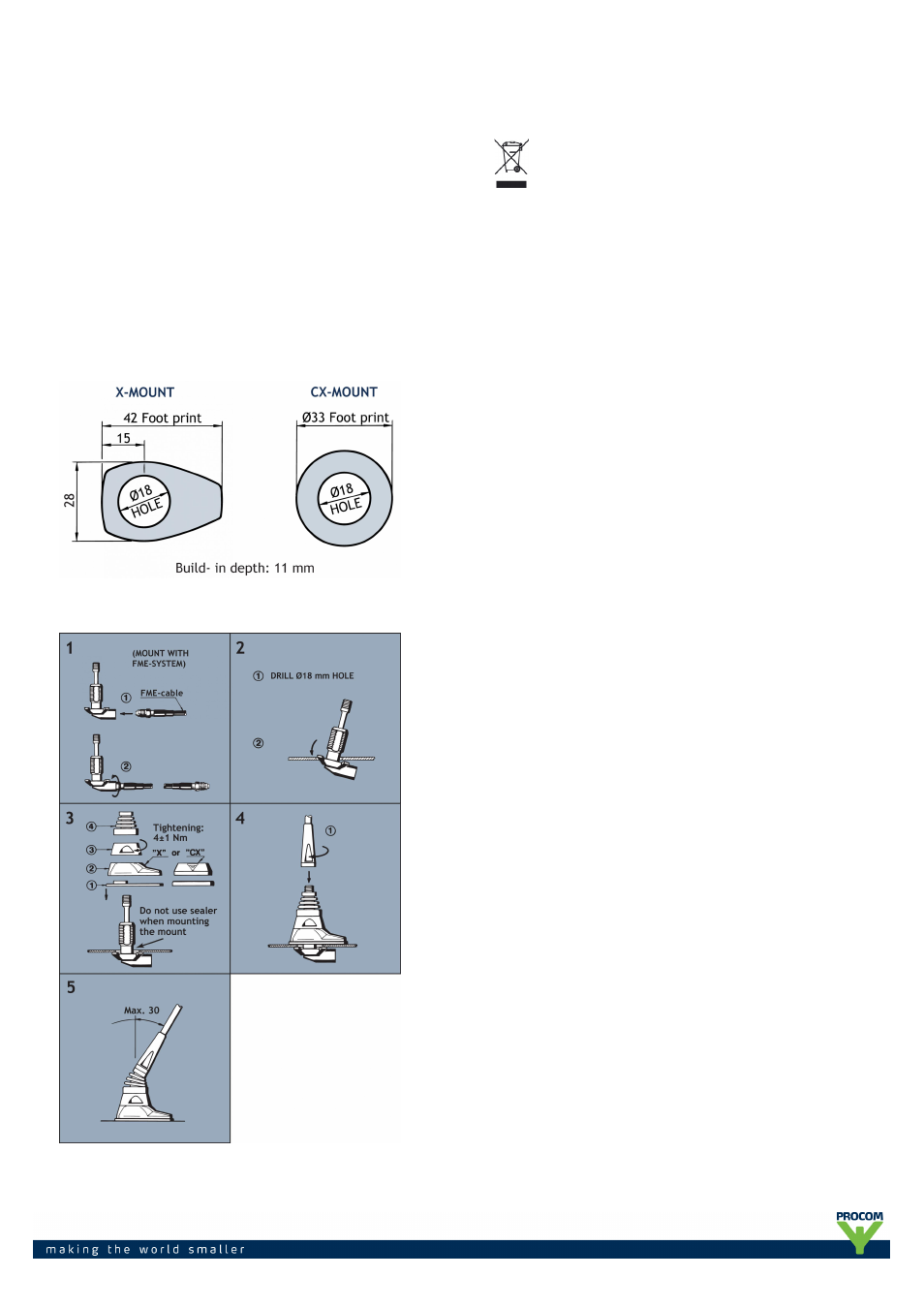

1. INSTALLATION DIMENSIONS:
2. INSTALLATION STEPS:
Do not use sealer on rubber gasket or other places.
3. TUNING:
The antenna is delivered factory-tuned and requires no further tuning.
PROCOM A/S reserve the right to amend specifications
without prior notice.
14/09/11
