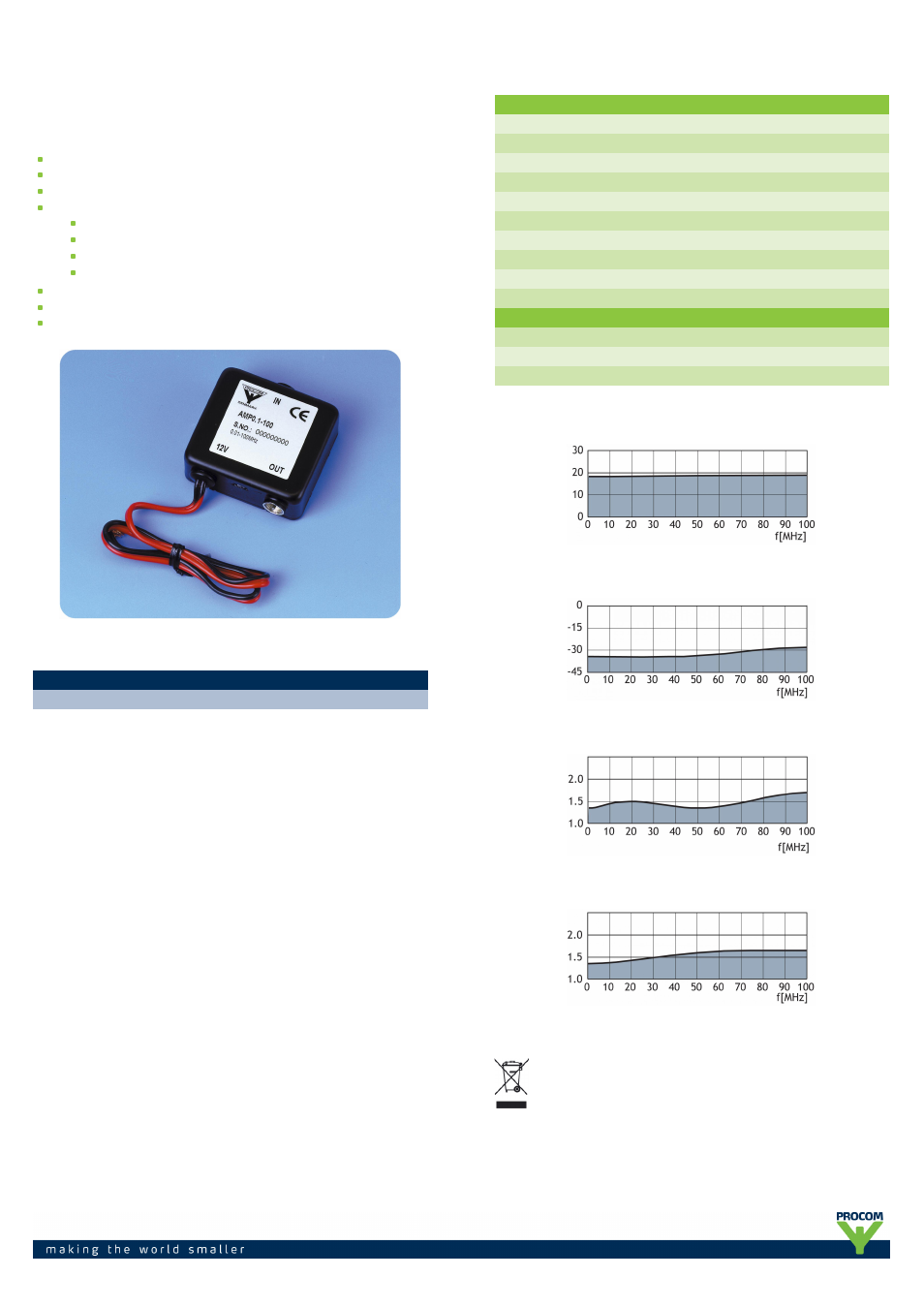

AMP 0.1-100
Miniature Dynamic Low-noise Preamplifier
DESCRIPTION
Miniature dynamic low-noise preamplifier.
Ultra-high P1dB-compression point.
Ultra-high 3rd order intercept point > +25 dBm.
To be used where extra preamplification is needed:
receivers with long antenna cabling
1.
measuring instruments
2.
multicoupler systems
3.
scanners.
4.
Low noise figure < 3 dB.
12 V operational voltage (24 V as option).
Provided with FME-male connector on input and output.
ORDERING DESIGNATIONS
TYPE NO.
PRODUCT NO.
AMP 0.1-100
200000899
SPECIFICATIONS
ELECTRICAL
MODEL
AMP 0.1-100
FREQUENCY RANGE
0.1–100 MHz
GAIN [S21]
+18 dB
P1dB
+15 dBm
NOISE FIGURE
< 2.7 dB @ 80 MHz
3rd ORDER INTERCEPT POINT
+25 dBm
INPUT SWR
Max. 2 typically ≤ 1.7
OUTPUT SWR
Max. 2 typically ≤ 1.7
ISOLATION OUTPUT TO INPUT
> 20 dB
VOLTAGE
11–18 V @ 12 V; 80 mA (24 V as option)
MECHANICAL
CONNECTORS
FME-male, 2 pcs. + flexible wire
DIMENSIONS (L x W x H)
50 x 40 x 20 mm
WEIGHT
Approx. 65 g
TYPICAL GAIN CURVE
REVERSE GAIN CURVE
TYPICAL SWR OUTPUT
TYPICAL SWR INPUT
PROCOM A/S reserve the right to amend specifications
without prior notice.
