BC VERSION ORDERING DESIGNATIONS
TYPE PRODUCT NO. FREQUENCY
PCPI 70/LH/s-BC 100000337 380 - 400 MHz
PCPI 70/LH/f-BC 100000338 410 - 430 MHz
PCPI 70/LH/l-BC 100000339 430 - 450 MHz
PCPI 70/LH/h-BC 100000340 450 - 470 MHz
PCPI 70/RH/s-BC 100000333 380 - 400 MHz
PCPI 70/RH/f-BC 100000334 410 - 430 MHz
PCPI 70/RH/l-BC 100000335 430 - 450 MHz
PCPI 70/RH/h-BC 100000336 450 - 470 MHz

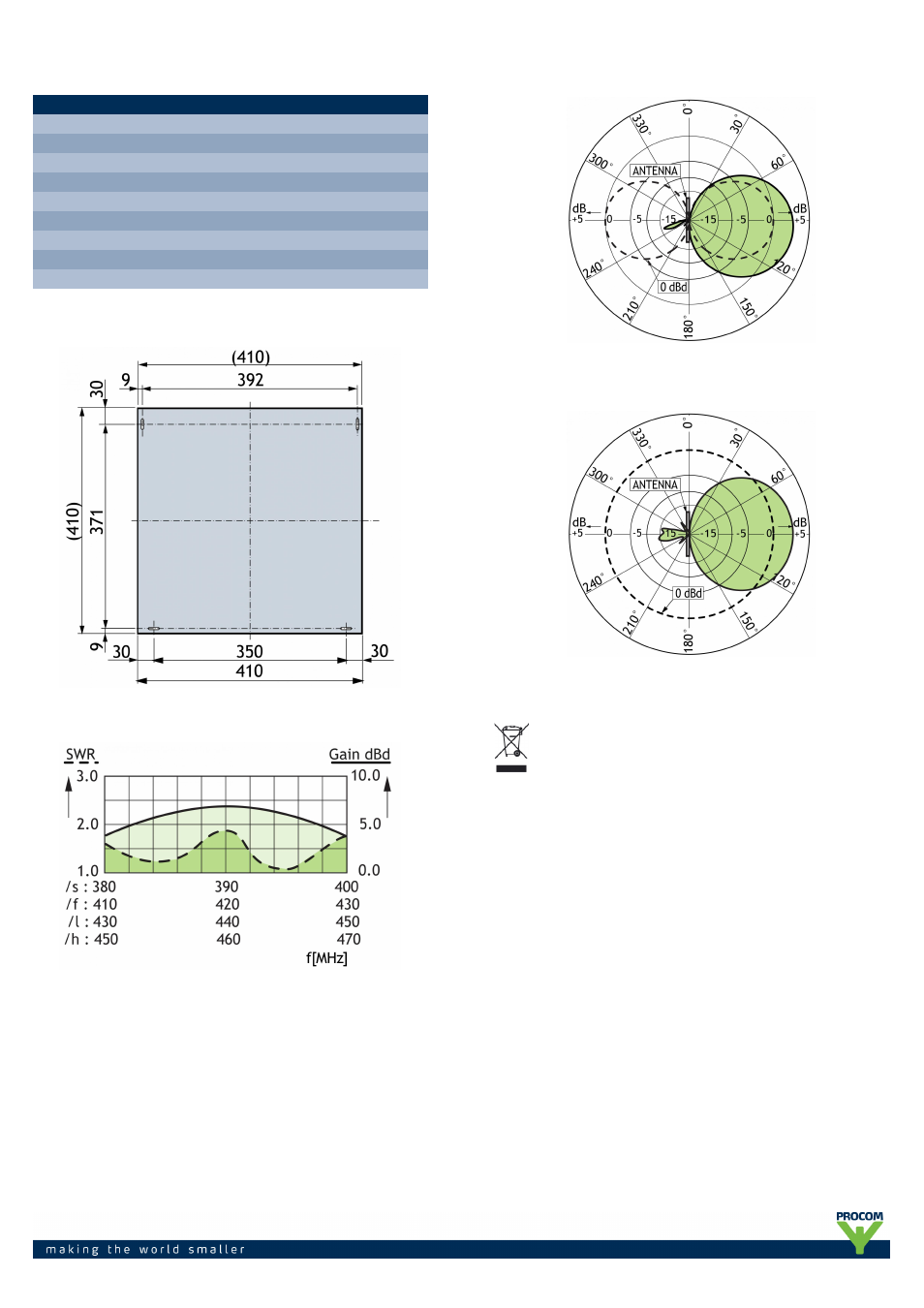

MOUNTING DETAILS (Dimensions excl. cover)
TYPICAL GAIN AND SWR CURVES
TYPICAL RADIATION PATTERN (E-PLANE)
This curve shows the radiation patterns in the vertical plane.
TYPICAL RADIATION PATTERN (H-PLANE)
This curve shows the radiation patterns in the horizontal plane (horizontal coverage).
