PLPI 900/1800
Indoor dual Patch Antenna for mounting on Wall or Ceiling
DESCRIPTION
Low profile antenna for the 900 and 1800 MHz Band.
PLPI 900/1800 is a patch antenna for indoor use.
Covers 80 MHz at 900 MHz and 170 MHz at 1800 MHz with a radiation
of approx. 8 dBi.
The antenna is carefully sealed with a discreet white cover.
The two connectors are placed at one side to enable mounting close to
a wall or a ceiling.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
PLPI 900/1800
100000322
SPECIFICATIONS
ELECTRICAL
MODEL
PLPI 900/1800
ANTENNA TYPE
Linearly Polarized patch antenna
FREQUENCY
880 - 960 MHz / 1710 - 1880 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Linear
GAIN
8 dBi
BANDWIDTH
880 - 960 ≥ 80 MHz @ SWR ≤ 2
1710 - 1880 ≥ 170 MHz @ SWR ≤ 2
HALF-POWER BEAMWIDTH
65° - 85° in azimuth plane
60° - 80° in elevation plane
SWR
≤ 2
MAX. POWER
100 W
MECHANICAL
CONNECTOR
2 x N-female
COLOUR
Marine white
MATERIALS
Cover: PS
Chassis: Aluminium
SIZE (L x W x H)
Approx. 250 x 200 x 30 mm
WEIGHT
Approx. 0.4 kg
MOUNTING
For mounting on wall or ceiling
ø4.5 x 20 mm (four holes)

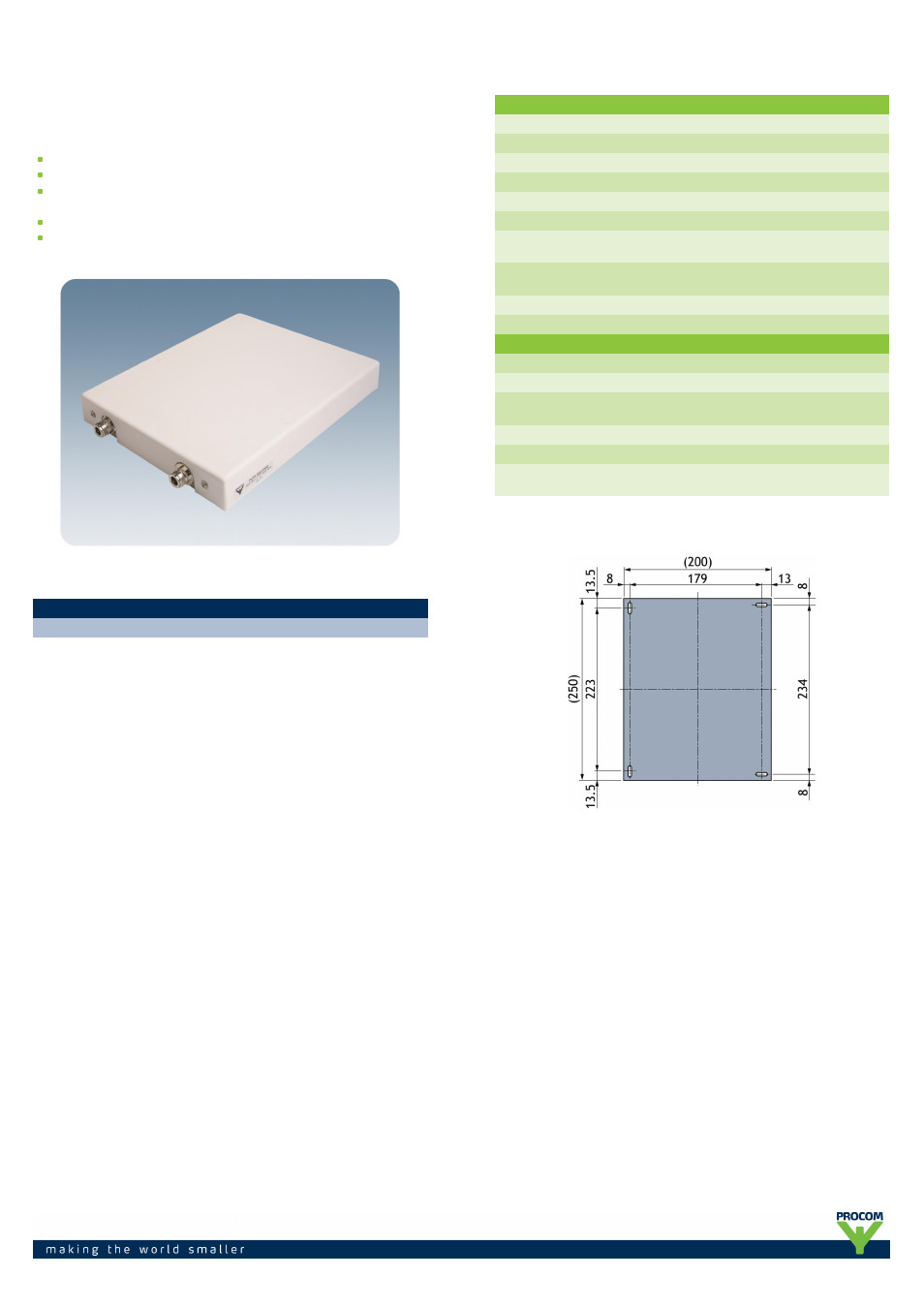

MOUNTING DETAILS
(Dimensions excl. cover)
