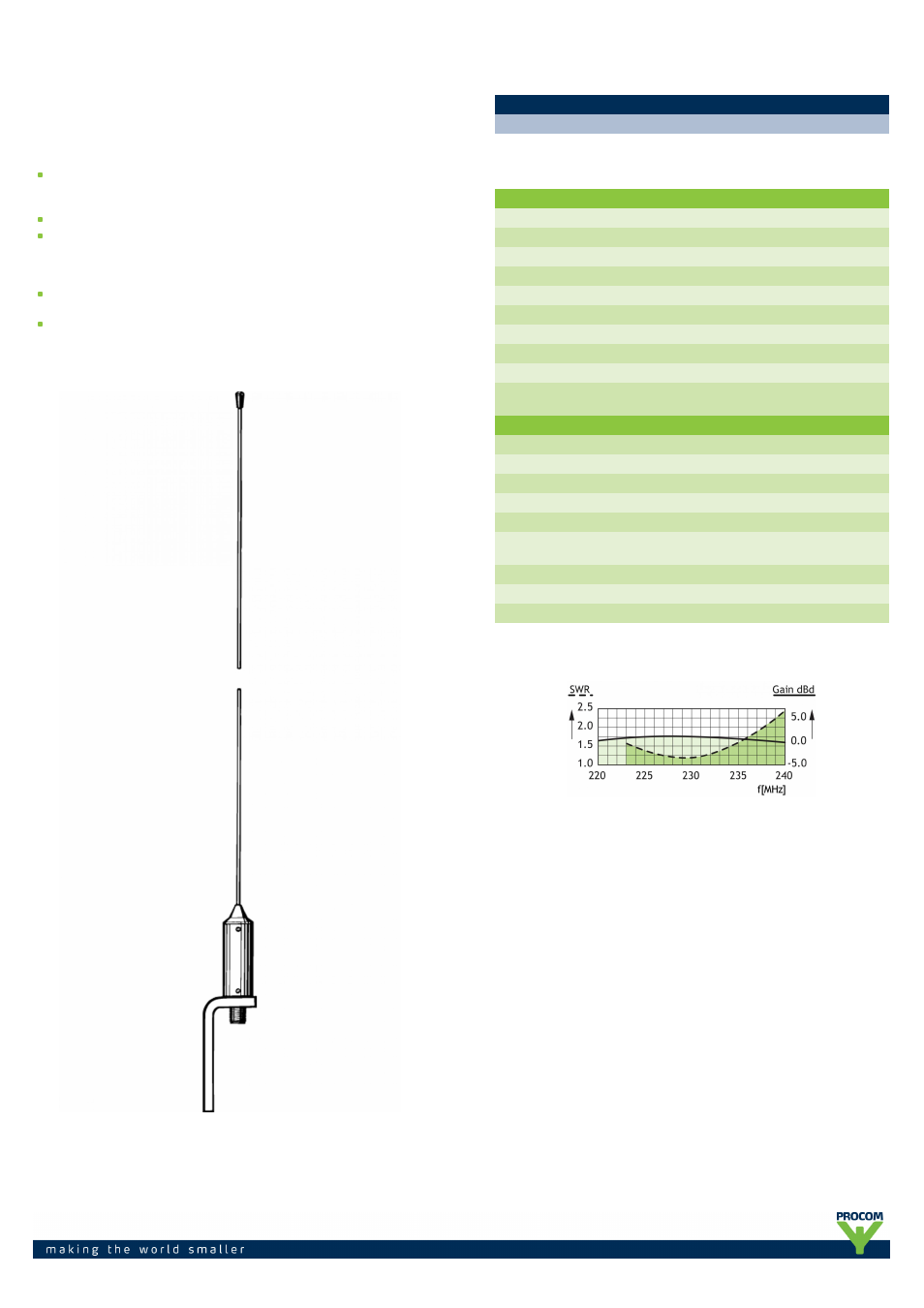

Procom MA DAB SC User Manual
Ma dab sc

MA DAB SC
Base Station and Marine DAB Antenna with Low Weight
and Wind Load
DESCRIPTION
The dimensions of this base station, marine and receiving DAB (Digital
Audio Broadcast) antenna are kept as small as possible to reduce
weight, wind load and cost.
Despite the small dimensions the efficiency is very high.
The tapered ½ λ stainless steel radiator together with the chromed
brass housing and stainless steel corner bracket constitute an antenna
tough and ready to cope with the corrosive environment at the
masthead.
The end-fed dipole principle makes the antenna independent of ground-
plane, radials or other auxiliary arrangements.
The antenna whip should not be mounted parallel or near other metal
parts, such as windex, supporting wires etc. Free mounting and as high
as possible is preferable, otherwise the SWR and the radiation diagram
will be influenced.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
MA DAB SC
100000085
SPECIFICATIONS
ELECTRICAL
MODEL
MA DAB SC
ANTENNA TYPE
½ λ dipole, end-fed
FREQUENCY
223 - 240 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
2 dBi 0 dBd
BANDWIDTH
17 MHz
SWR
<1.3 @ f.res
MAX. POWER
25 W
ANTISTATIC PROTECTION
All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
TEMP. RANGE
-30° C → +70° C
CONNECTOR
UHF-female
WIND SURFACE
0.0076 m²
WIND LOAD
9.6 N @ 160 km/h
COLOUR
Bright chromed
MATERIALS
Shroud : Stainless steel
Housing: Chromed brass
TOTAL HEIGHT
Approx. 800 mm
WEIGHT
Approx. 265 g
MOUNTING
With fast screws, rivets or binders
TYPICAL GAIN AND SWR CURVES
