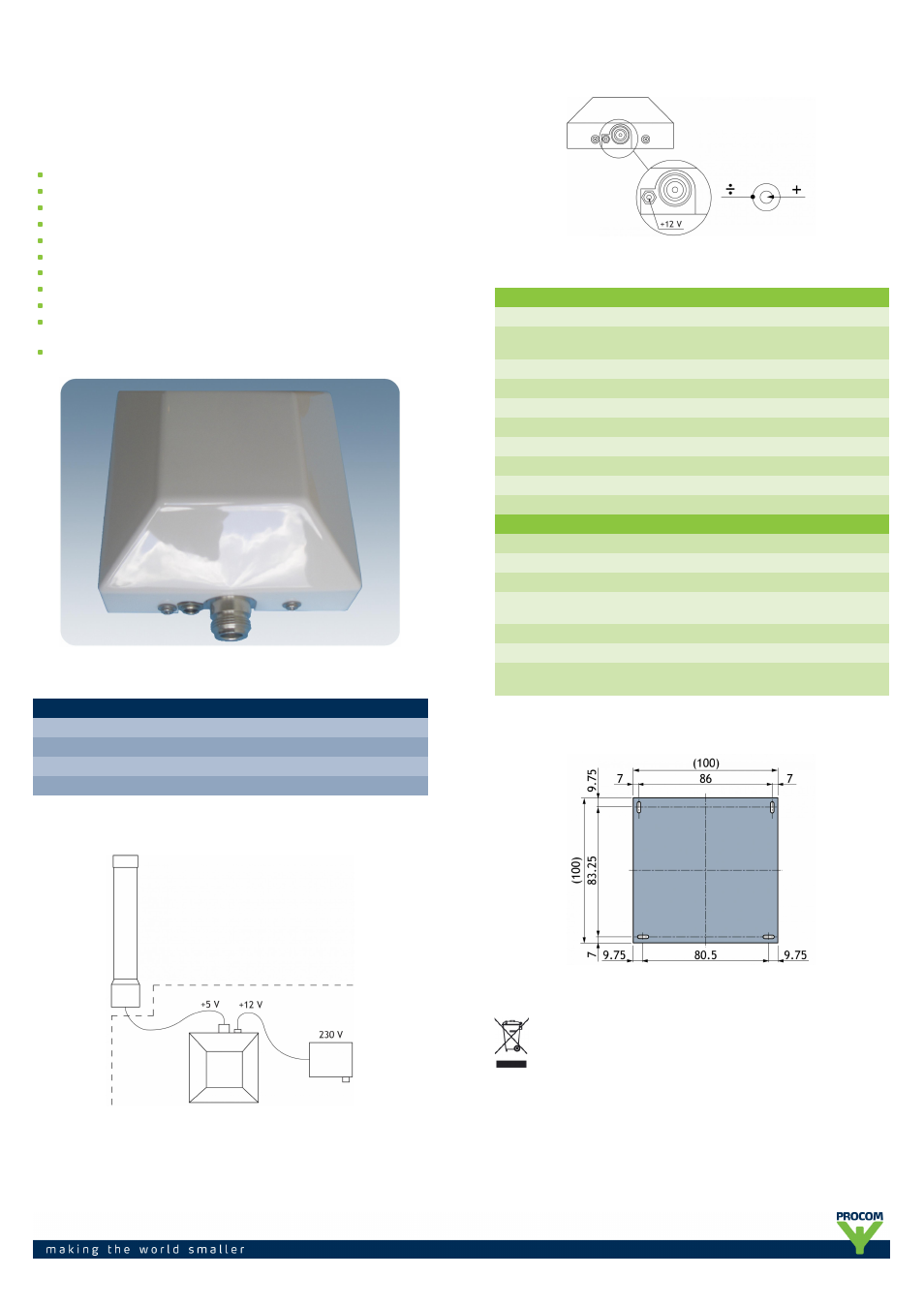

PCPI GPS EXTEND 12V/5V-N
Indoor Right Hand Circularly Polarized Patch Antenna for
mounting on Wall or Ceiling
DESCRIPTION
To be used where GPS-signals are missing.
Outdoor GPS antenna is necessary.
Low profile antenna for reradiating the GPS signal.
Specially designed for closed rooms.
Covers the GPS frequency 1575 MHz with a radiation of approx.
5 dBic 3 dBd.
Full size 2 λ circular patch antenna.
The antenna is carefully sealed with a discreet white cover.
Internal 25 dB selective amplifier.
5V DC output on N-connector for feeding outside GPS antenna with
built-in amplifier.
Recommended outdoor GPS antenna: GPS 4/...
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
SUPPLY VOLTAGE
PCPI GPS EXTEND 12V/5V-N
102000002
ADAPTOR AC/DC 12V EU
240000040
ADAPTOR AC/DC 12V UK
240000041
GPS 4
112000017
5 V DC (4.5 - 5.5 V)
EXAMPLE
PLEASE NOTE: GPS 4/... + power supply to be ordered separately.
DETAILS
SPECIFICATIONS
ELECTRICAL
MODEL
PCPI GPS EXTEND 12V/5V-N
ANTENNA TYPE
Right Hand Circularly Polarized
patch antenna
FREQUENCY
1575 MHz
IMPEDANCE
Nom. 50 Ω
COVERAGE
10 - 16 m
GAIN
Approx. 5 dBic 3 dBd ±2 dB
HALF-POWER BEAMWIDTH
Approx. 70° (H- and E-plane)
SWR
≤ 1.5 f.res.
SUPPLY VOLTAGE
12V with 5V out for GPS outdoor antenna
SUPPLY CURRENT
Approx. 150 mA
MECHANICAL
CONNECTOR
N-female
DC-CONNECTOR
ø2.5 mm - center pin
COLOUR
Marine white
MATERIALS
Cover: ABS
Chassis: Aluminium
SIZE (L x W x H)
104 x 104 x 40 mm
WEIGHT
Approx. 0.2 kg
MOUNTING
For mounting on wall or ceiling
ø4.5 x 10 mm (4 holes)
MOUNTING DETAILS (Dimensions excl. cover)
PROCOM A/S reserve the right to amend specifications
without prior notice.
02/12/11
