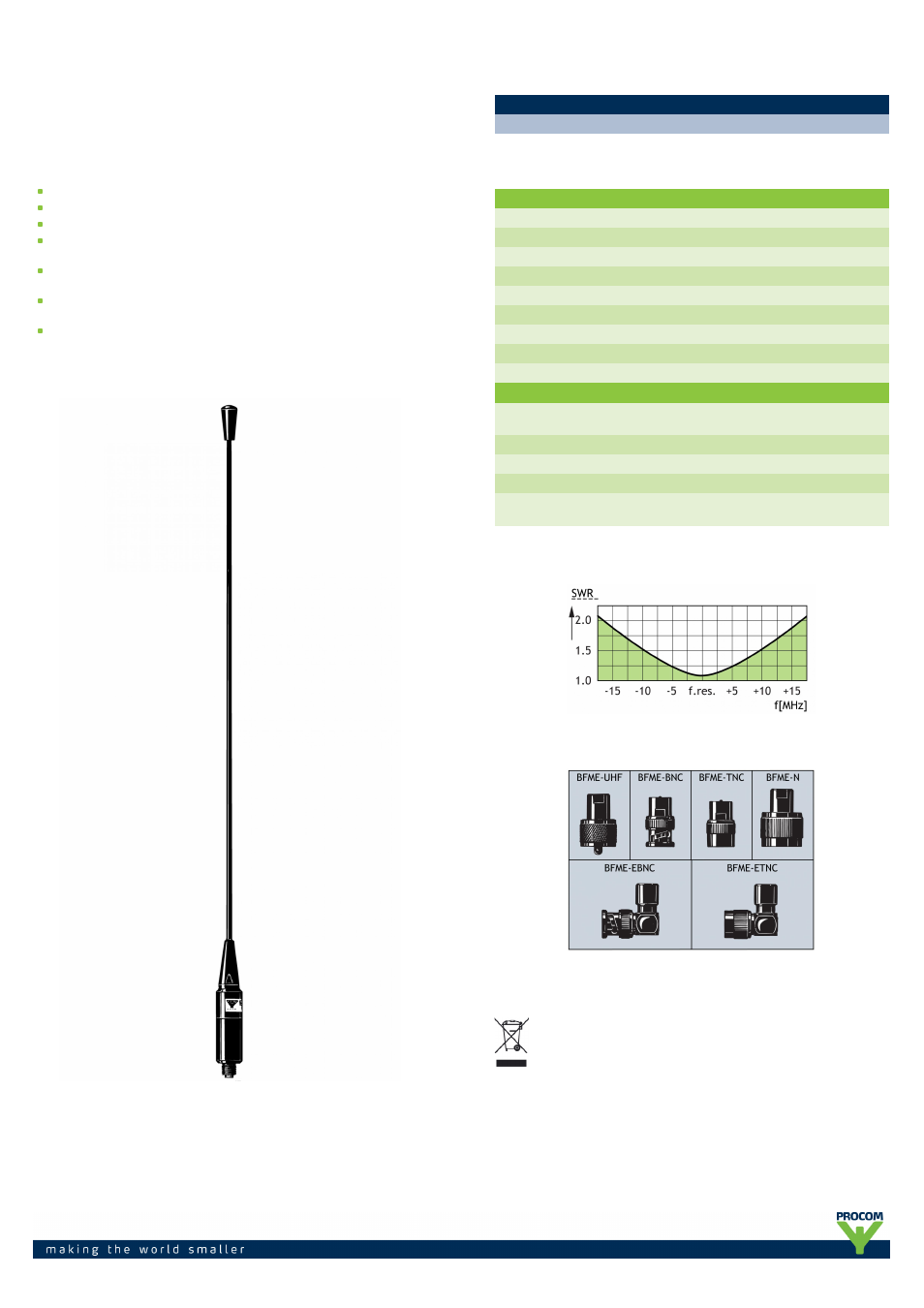

Procom EFSS 70-...-FME - Manual

EFSS 70/...-FME
End-Fed ½ λ Dipole Antenna with Universal FME-
Connection System for Portable Equipment in the 70 cm
Band
DESCRIPTION
A highly professional antenna in stainless steel material.
Full-size, end-fed ½ λ antenna whip.
High gain and efficient decoupling from the portable equipment.
5 dB gain (typ.) compared to a ¼ λ antenna whip on the same
equipment. Highest quality materials in an elegant design.
Delivered factory tuned and tested to ensure minimum SWR and
optimum performance.
Provided with universal FME-connection system for optimum flexibility
and easily exchangeable connectors.
Designed for use with the following of Procom's line of black
FMEconnectors
(to be ordered separately): BFME-UHF, BFME-BNC, BFME-TNC,BFME-N,
BFME-EBNC and BFME-ETNC.
ORDERING DESIGNATIONS
TYPE PRODUCT NO. FREQUENCY
EFSS 70/...-FME 140000186 380 - 470 MHz
SPECIFICATIONS
ELECTRICAL
MODEL EFSS 70/...-FME
ANTENNA TYPE ½ λ antenna for portable equipment
FREQUENCY 70 cm band (380 – 470 MHz)
IMPEDANCE Nom. 50 Ω
POLARISATION Vertical
GAIN 5 dB (compared to a ¼ λ portable antenna)
BANDWIDTH ≥ 30 MHz @ SWR ≤ 2.0
SWR < 1.3 @ f. res.
MAX. POWER 25 W
MECHANICAL
MATERIALS Stainlees steel
Black-chromed brass
COLOUR Black
TOTAL HEIGHT Approx. 340 mm (dep. on type)
WEIGHT Approx. 50 g
CONNECTOR FME (female) (Exchangeable BFME-connectors
to be ordered separately)
TYPICAL SWR CURVE
RECOMMENDED BFME-CONNECTORS
(To be ordered separately)
PROCOM A/S reserve the right to amend specifications
without prior notice.
16/05/12
