PRO-BBPHY 2/70-20-3 dB-N
Broad Band Power Divider 1:2
DESCRIPTION
Two antennas connected to the same transmitter or receiver.
Broad band power splitter for radio systems.
Combining two transmitters on the same antenna.
Note: The power splitter has to be mounted on an extra heat sink when
used as a combiner. Max. 15 W per TX.
Combining two signal generators.
30 W load built-in.
ORDERING DESIGNATION
TYPE NO.
PRODUCT NO.
PRO-BBPHY 2/70-20-3 dB-N
210000282
SPECIFICATIONS
ELECTRICAL
MODEL
PRO-BBPHY 2/70-20-3 dB-N
TYPE
Cascaded Wilkinson-hybrid
FREQUENCY
146 - 470 MHz
MAX. INPUT
POWER
30 W when used as a power splitter -
15 W per channel when used as a hybrid combiner.
Note: Extra cooling necessary when used as a hybrid
combiner
INSERTION LOSS
< 4.5 dB
ISOLATION TX
1
,
TX
2
> 11 dB, 146-470 MHz, typically > 17 dB
PHASE TX
1
, TX
2
0°
IMPEDANCE
Nom. 50 Ω
LOAD
30 W load built-in
SWR
< 1.5 all other ports terminated with 50 Ω
MECHANICAL
TEMP. RANGE
–30° C → +60° C
CONNECTOR TYPE
N-female (other types available)
DIMENSIONS
(L x W x H)
126 (incl. conn.) x 97.5 (incl. conn.) x 30.3 mm
WEIGHT
Approx. 400 g

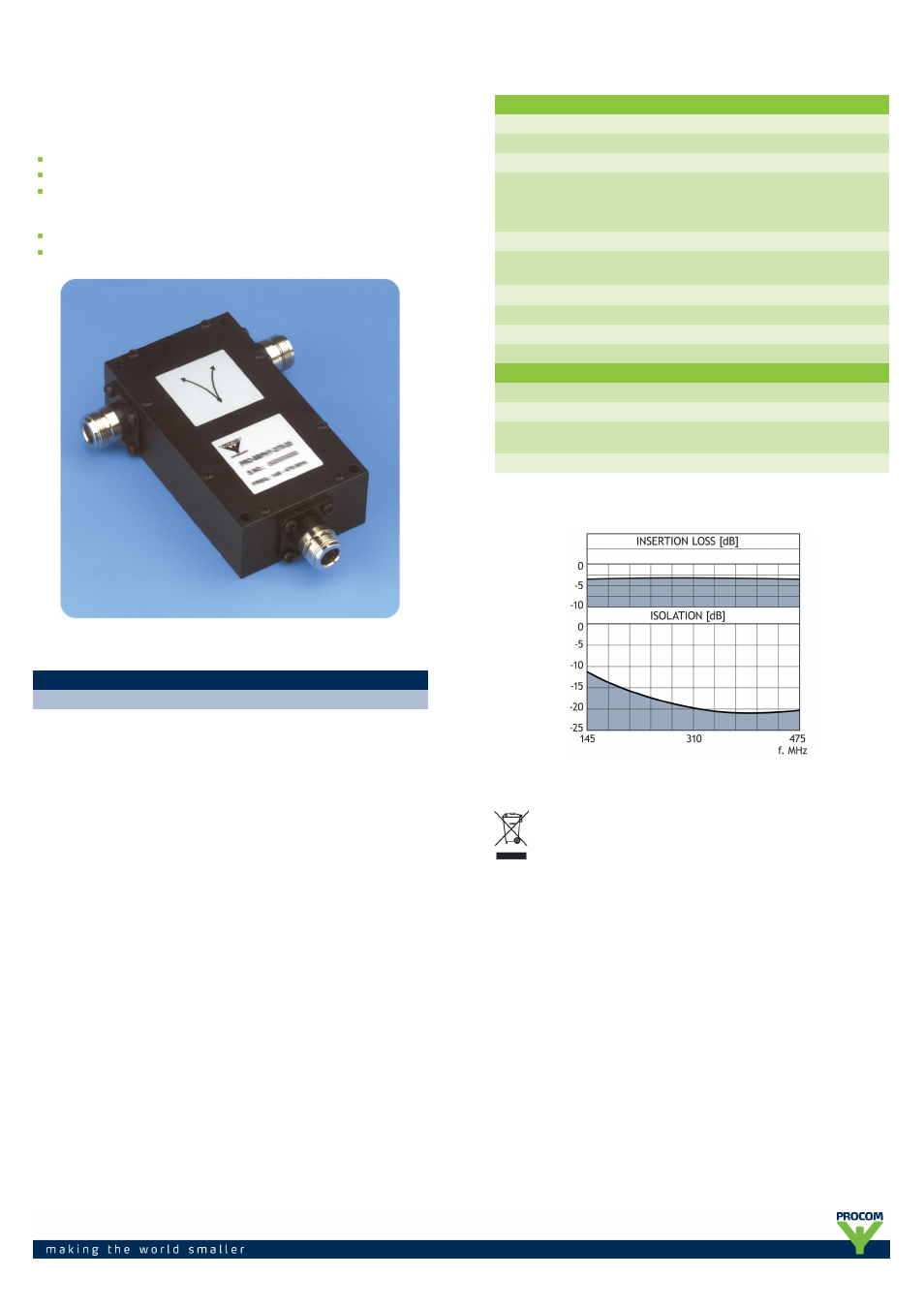

TYPICAL RESPONSE CURVE
PROCOM A/S reserve the right to amend specifications
without prior notice.
01/11/11
