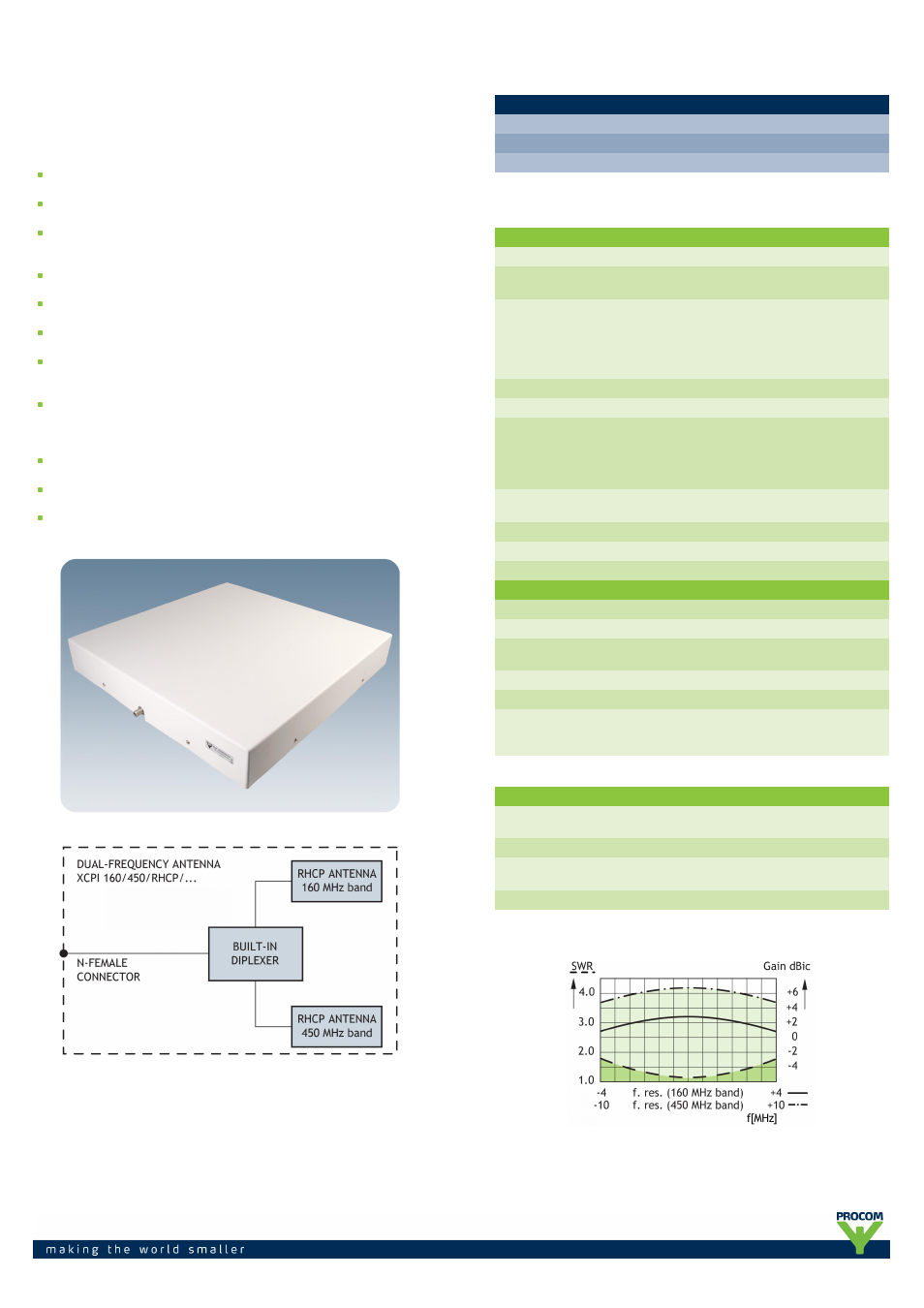

XCPI 160/450/RHCP/...
Indoor Right Hand Circularly Polarized Antenna for the 160
MHz and 450 MHz Bands
DESCRIPTION
Dual band indoor base station antenna - one antenna with two bands.
Low profile antenna for the 160 MHz and 450 MHz bands.
XCPI 160/450/RHCP/... is a Right Hand Circularly Polarized antenna for
indoor use e.g. for ceilings and walls inside ships and houses.
Circularly polarized antenna is chosen to avoid out-of-phase signals.
Reduces flutter considerably.
Specially designed for closed rooms.
Covers 160 MHz and 450 MHz bands with a radiation of approx. 2 dBic
for 160 MHz band and 5 dBic for 450 MHz band.
The two built-in antennas are combined with a diplexer, built in diplexer,
with low insertion loss, which makes it possible to have only one
downlead cable.
The antenna is carefully sealed with a discreet cover.
The antenna is provided with one connector.
The connector is placed at one side to enable mounting close to a wall
or a ceiling.
ORDERING DESIGNATIONS
TYPE PRODUCT NO. FREQUENCY
XCPI 160/450/RHCP/s 100000495 380 - 400 MHz
XCPI 160/450/RHCP/f 100000498 410 - 430 MHz
XCPI 160/450/RHCP/h 100000496 450 - 470 MHz
SPECIFICATIONS
ELECTRICAL
MODEL XCPI 160/450/RHCP/...
ANTENNA TYPE Right hand circularly polarized dual band
antenna
FREQUENCY
Other frequency band
available on request
160 MHz : 144 - 175 MHz
450 MHz : 380 - 400 MHz
410 - 430 Mhz
450 - 470 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Circular (Right hand)
GAIN
for 160 MHz :
for 450 MHz :
Approx. 2 dBic
Approx. 5 dBic
BANDWIDTH 160 MHz: ≥ 8 MHz
450 MHz: ≥ 20 MHz
HALF POWER BEAMWIDTH Approx. 60º (H- and E-plane)
SWR ≤ 2
MAX. POWER 25 W
MECHANICAL
CONNECTOR N-female
COLOUR Marine white
MATERIALS Cover: PS (white)
Chassis: Stainless steel
SIZE (W x L x H) Approx. 608 x 608 x 90mm
WEIGHT Approx. 6.0 kg
MOUNTING ø 5.5 mm (four holes)
For optimum performance a groundplane
of 1 x 1 m is required
ELECTRICAL FOR BUILT-IN DIPLEXER
FREQUENCY Low port : 0 - 225 MHz
High port : 330 - 1300 MHz
MAX. INPUT POWER 25 watts each port
INSERTION LOSS 0 - 225 MHz : < 0.5 dB
330 - 1300 MHz: < 0.5 dB
ISOLATION Low to high port: > 45 dB
TYPICAL GAIN AND SWR CURVES
