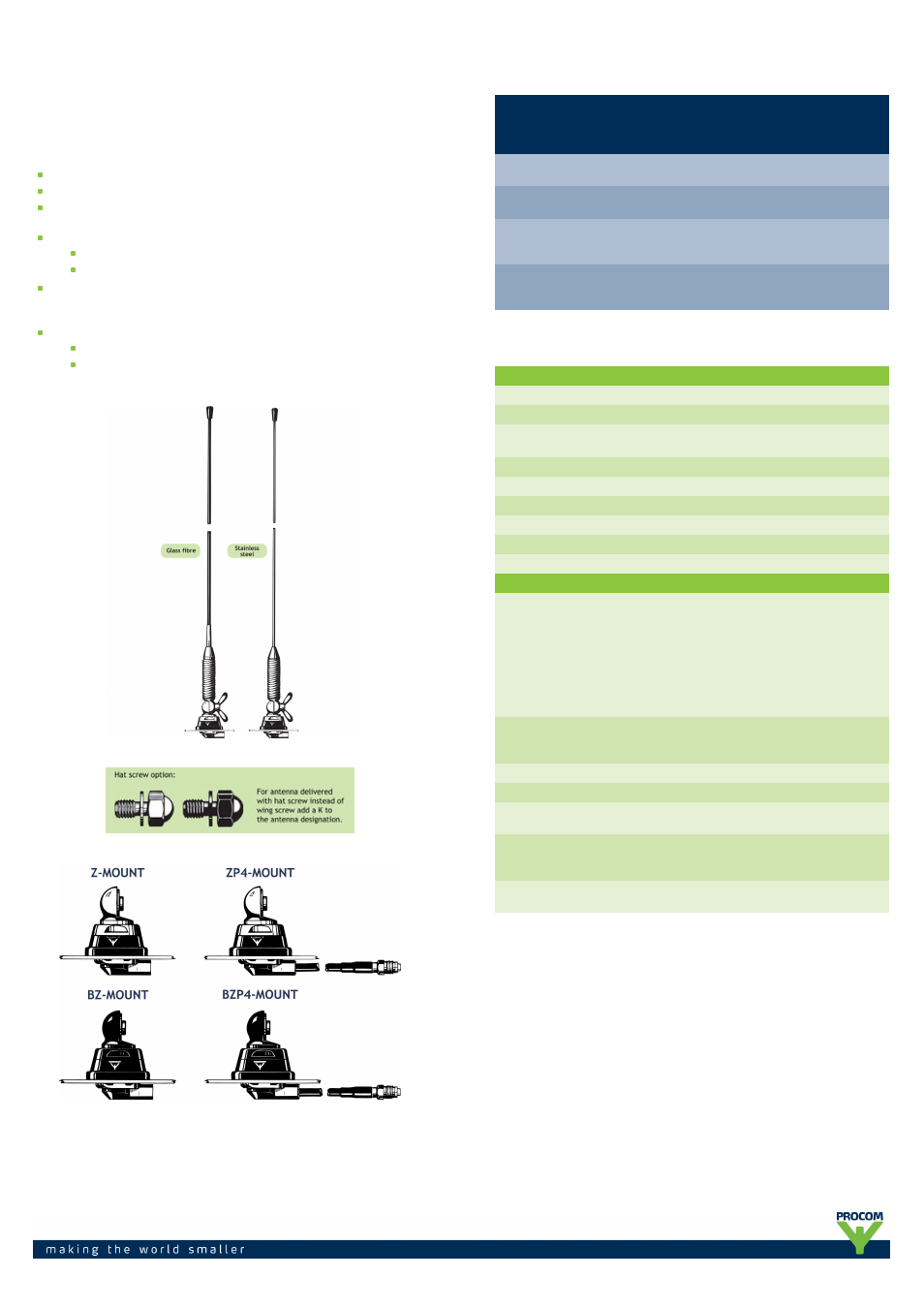

¼ λ Mobile Antenna with Shock Spring for the 80 MHz
Band
DESCRIPTION
Sturdy, general-purpose ¼ λ antenna in professional quality.
Available with glass fiber or stainless steel whip.
Stainless steel Z-mount with ball-joint and wing screw whip-fastening
system.
Available with bright or black-chromed metal parts (mount and whip):
ML 1-Z…: Bright version
1.
ML 1-BZ…: Black version
2.
Simple mounting exclusively with access from the outside.
Models with roof thickness from 2 mm to 7.5 mm mounting from the
inside.
Choice between two connection principles: Z-mount:
FME-connection (supplied without cable)
1.
ZP4-mount: Permanently attached 4 m cable terminated with
2.
FME-connector
ORDERING DESIGNATIONS
TYPE
WHIP
GLASS
FIBER
PRODUCT
NO.
TYPE
WHIP
STAINLESS
STEEL
PRODUCT
NO.
MOUNT
ML 1-Z
130000605
ML 1-ZR
130000616
Z-mount with
FME-system BRIGHT
ML 1-BZ
130000606
ML 1-BZR
130000621
BZ-mount with
FME-system BLACK
ML 1-
ZP4
130000607
ML 1-ZP4R
130000618
ZP4-mount with
4 m cable and FME-
connector BRIGHT
ML 1-
BZP4
130000608
ML 1-BZP4R
130000622
BZP4-mount with
4 m cable and FME-
connector BLACK
SPECIFICATIONS
ELECTRICAL
MODEL
ML 1-Z
ANTENNA TYPE
¼ λ mobile whip antenna
FREQUENCY
Tunable by cutting within: 66…88 MHz
(Also applicable: 88…175 MHz)
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
0 dB (acc. to EIA RS-329-1)
BANDWIDTH
≥ 8 MHz @ SWR ≤ 2.0
SWR
≤ 1.3 @ f. res.
MAX. POWER
250 W
MECHANICAL
MATERIALS
Whip:
Conical glass fiber or Stainless steel
Chromed brass
Spring:
Stainless steel
Mount:
Chromed brass
Weather- and shockproof plastics
Stainless steel
RECOMMENDED
INSTALLATION
TORQUE
7.5 ± 1 Nm
COLOUR
Black or bright, see above
HEIGHT
Approx. 1.1 m
WEIGHT
Z-version: Approx. 250 g
ZP4-version: Approx. 400 g
MOUNTING
ø21 mm dia. hole
(For roof thickness 2 mm up to 7.5 mm
mounting hole should be ø22 mm dia.)
ROOF THICKNESS
Max. 2.0 mm
(Models up to 7.5 mm on request)
