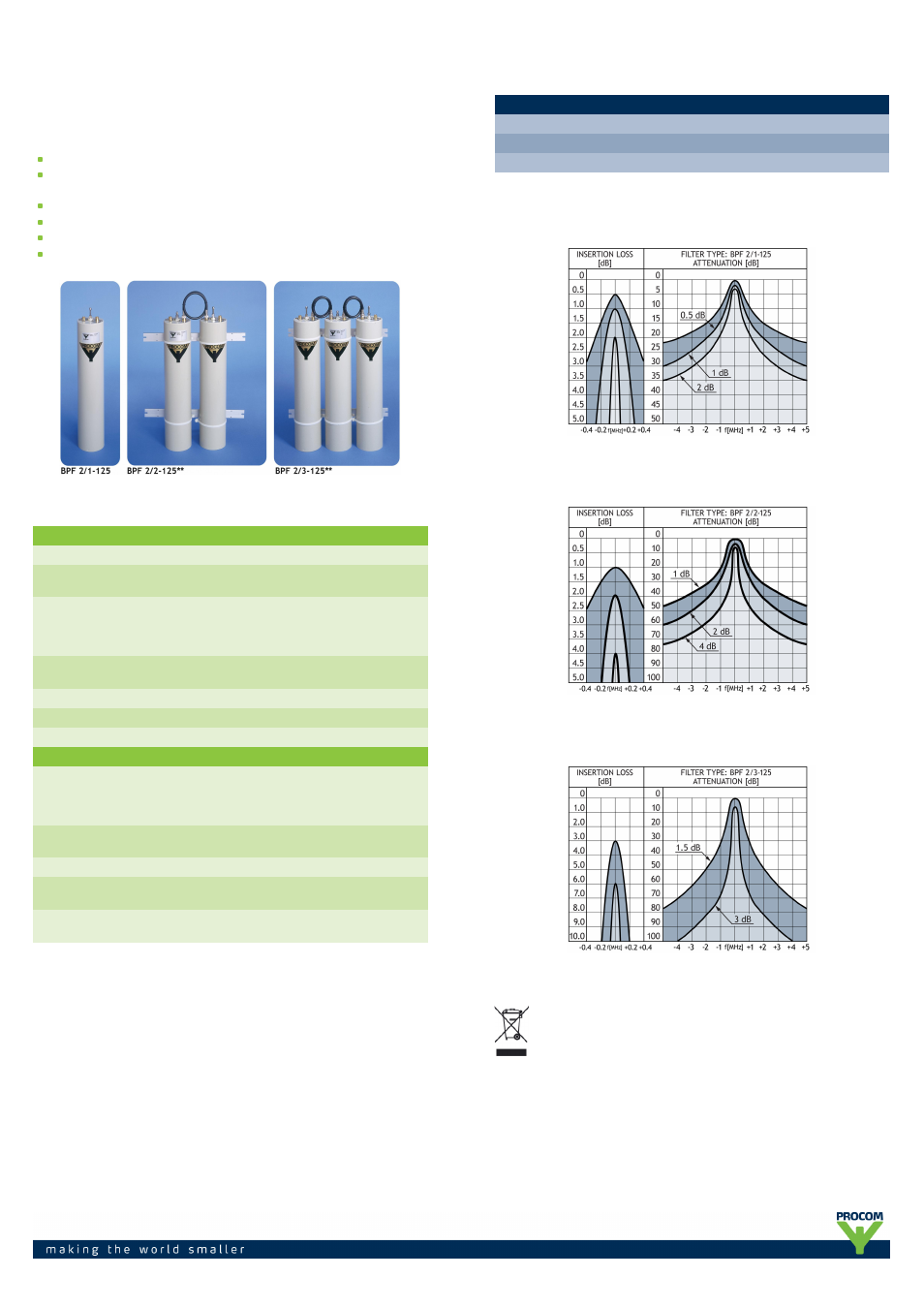

BPF 2/...-125
Band-Pass Filters for the 150 MHz Band
DESCRIPTION
High power base station band-pass filters for the 140 - 175 MHz range.
The use of large ø125 mm cavities means a high Q,
resulting in a very narrow passband.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 4500.
High frequency stability on temperature and power.
Mounted on 19” brackets.**
SPECIFICATIONS
ELECTRICAL
MODEL BPF 2/1-125 BPF 2/2-125 BPF 2/3-125
FREQ.
RANGE
140 - 175
MHz
140 - 175 MHz 140 - 175 MHz
MAX.
INPUT
POWER
300 W @
0.5 dB IL
125 W @
2.0 dB IL
300 W @
1.0 dB IL
125 W @
4.0 dB IL
300 W @
1.5 dB IL
125 W @
6.0 dB IL
INSERTION LOSS Adjustable
0.4 - 2.0 dB
Adjustable
0.8 - 4.0 dB
Adjustable
1.2 - 6.0 dB
ATTENUATION See figure 1 See figure 2 See figure 3
IMPEDANCE Nom. 50 Ω Nom. 50 Ω Nom. 50 Ω
SWR < 1.5 < 1.5 < 1.5
MECHANICAL
TEMP.
RANGE
RH 0-90% non-
condensing
–30° C →
+60° C
–30° C →
+60° C
–30° C →
+60° C
FREQ.
STABILITY
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
CONNECTORS N-female N-female N-female
DIMENSIONS ø125 x
600 mm
L:125 x W:285 x
H:600 mm
L:125 x W:425 x
H:600 mm
WEIGHT Approx.
1.9 kg
Approx.
4 kg
Approx.
6.5 kg
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
BPF 2/1-125 200000956
BPF 2/2-125 200000986
BPF 2/3-125 200000961
TYPICAL RESPONSE CURVES
Figure 1
TYPICAL RESPONSE CURVES
Figure 2
TYPICAL RESPONSE CURVES
Figure 3
PROCOM A/S reserve the right to amend specifications
without prior notice.
