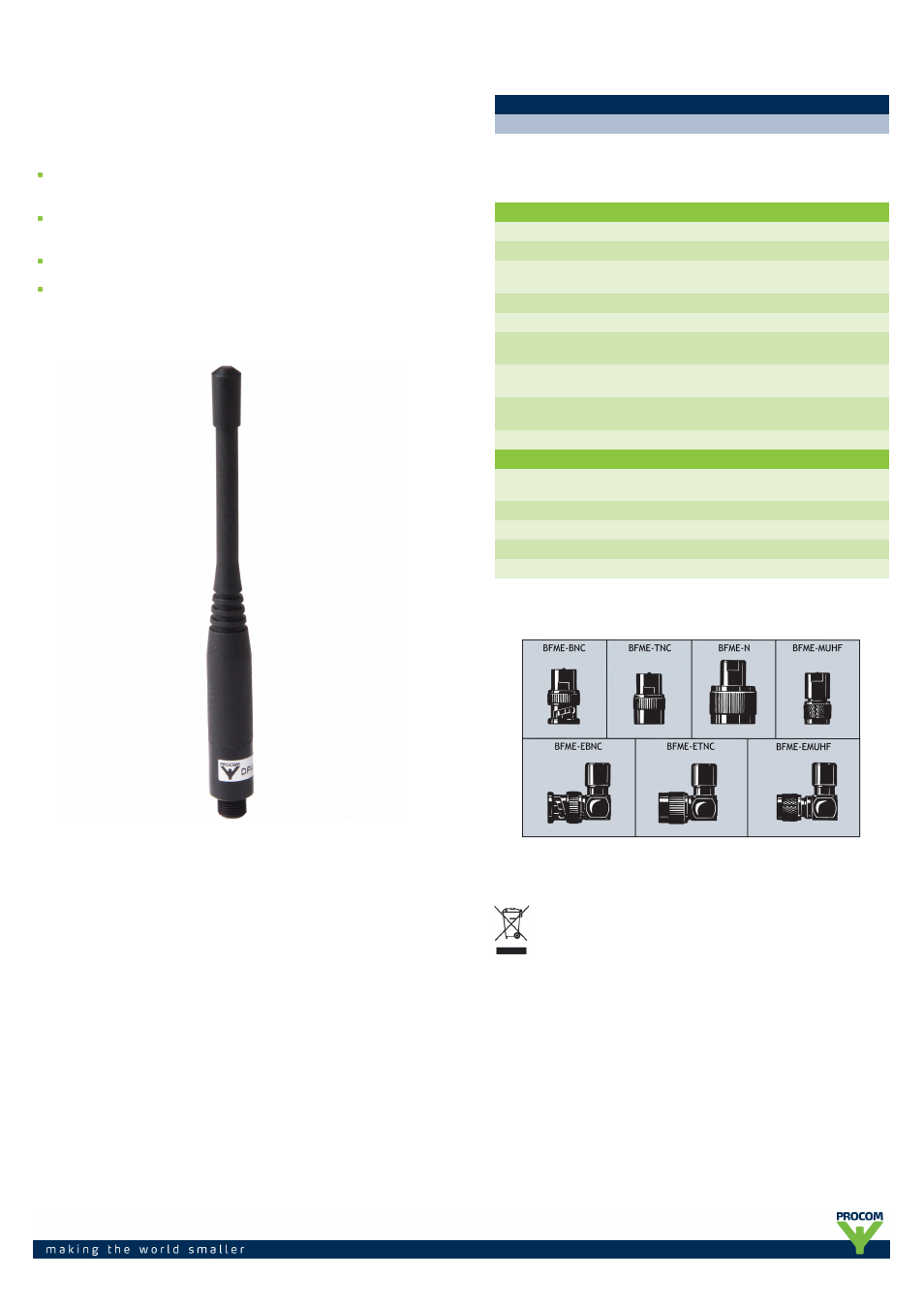

DPA 900/1800-FME
¼ λ Dual-Frequency Antenna for 900 and 1800 MHz bands
Designed for portable equipment
DESCRIPTION
This antenna makes it possible to operate on 900 and
1800 MHz at the same time on one antenna.
Flexible antenna element built into an elastic shroud of hard-wearing
and weather- and shockproof plastics.
Ready-tuned and unity gain on both bands.
Provided with FME (female) connector.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
DPA 900/1800-FME 140000453
The antenna is delivered factory-tuned. Other frequencies on request.
SPECIFICATIONS
ELECTRICAL
MODEL DPA 900/1800-FME
ANTENNA TYPE Dual-frequency portable antenna
FREQUENCY 880 – 960 MHz
1710 – 1880 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN 0 dB compared to a ¼ λ portable antenna
on the same equpiment
BANDWIDTH 880 - 960 MHz : ≥ 80 MHz @ SWR ≤ 2.0
1710 - 1880 MHz : ≥ 300 MHz @ SWR ≤ 2.5
SWR 900 MHz : < 1.5 @ f. res.
1800 MHz : < 2.2 @ f. res.
MAX. POWER 25 W
MECHANICAL
MATERIALS Thermoplastic rubber
Cu-nite Brass
COLOUR Black
TOTAL HEIGHT Approx. 130 mm
WEIGHT Approx. 20 g
CONNECTOR FME (female)
RECOMMENDED BFME-CONNECTORS
(To be ordered separately)
PROCOM A/S reserve the right to amend specifications
without prior notice.
27/09/12
