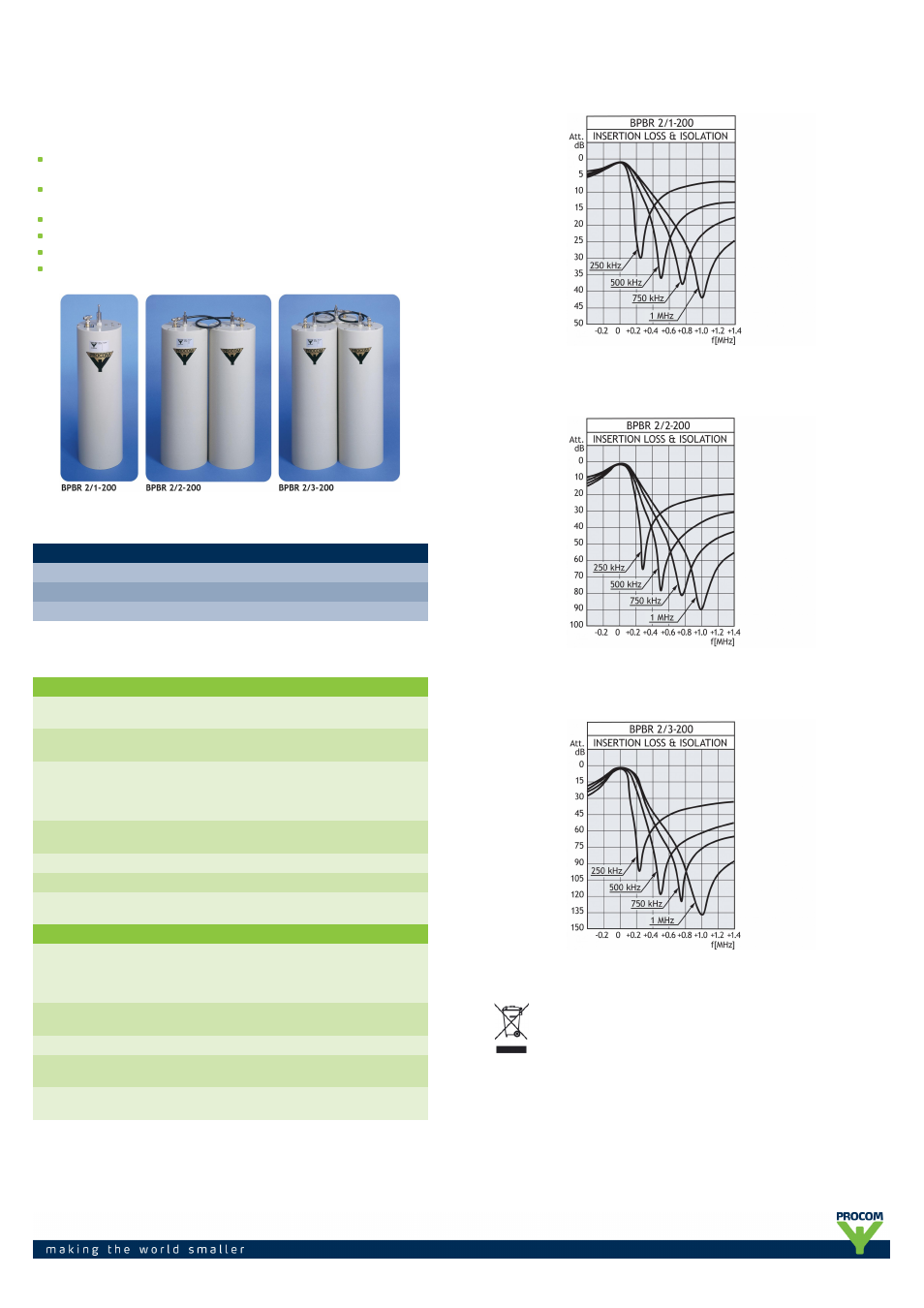

BPBR 2/...-200
Band-Pass/Band-Reject Filters for the 150 MHz Band
DESCRIPTION
High power base station band-pass/band-reject filters for the 140 – 175
MHz range.
The use of large ø200 mm cavities means a high Q, resulting
in a very narrow pass/reject spacing.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 7000.
High frequency stability on temperature and power.
19” mounting brackets are available as an option.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
BPBR 2/1-200
200001084
BPBR 2/2-200
200001082
BPBR 2/3-200
200001755
SPECIFICATIONS
ELECTRICAL
MODEL
BPBR 2/1-
200
BPBR 2/2-200
BPBR 2/3-200
FREQ. RANGE
140 - 175
MHz
140 - 175 MHz
140 - 175 MHz
MAX. INPUT
POWER
300 W @
0.5 dB IL
125 W @
2.0 dB IL
300 W @
1.0 dB IL
125 W @
4.0 dB IL
300 W @
1.5 dB IL
125 W @
6.0 dB IL
INSERTION
LOSS
Adjustable
0.3 - 2.0 dB
Adjustable
0.6 - 4.0 dB
Adjustable
0.9 - 6.0 dB
ATTENUATION
See figure 1
See figure 2
See figure 3
IMPEDANCE
Nom. 50 Ω
Nom. 50 Ω
Nom. 50 Ω
SWR
(at resonance)
< 1.5
< 1.5
< 1.5
MECHANICAL
TEMP.
RANGE
RH 0-90%
non-condensing
–30° C →
+60° C
–30° C →
+60° C
–30° C →
+60° C
FREQ.
STABILITY
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
CONNECTORS
N-female
N-female
N-female
DIMENSIONS
ø200 x
600 mm
L:200 x W:400 x
H:600 mm
L:200 x W:600 x
H:600 mm
WEIGHT
Approx.
3.8 kg
Approx.
8 kg
Approx.
12.4 kg
TYPICAL RESPONSE CURVES
Figure 1
TYPICAL RESPONSE CURVES
Figure 2
TYPICAL RESPONSE CURVES
Figure 3
PROCOM A/S reserve the right to amend specifications
without prior notice.
