Z-mount

Z-Mount
Low Profile Mobile Antenna Mount with Toggle Joint
DESCRIPTION
Can be used together with all PROCOM mobile antenna whips provided
with toggle joint.
Installation possible everywhere on the car.
Particularly well suited for rooftop-mounting because of very low internal
protrusion and ability to be installed exclusively with access from the
outside. Models with roof thickness from 2 mm to 7.5 mm mounting
from the inside.
Hole diameter: 21 mm.
Mounting body made of stainless steel !
Wide variety of antenna whips available in the frequency range up to
470 MHz.
Choice between two connection principles:
Z-mount : FME-connection (supplied without cable).
ZP4-mount : Permanently attached 4 m cable terminated with FME-
connector.
Available in bright or black (black plastic parts for both versions).
ORDERING DESIGNATIONS
TYPE NO.
VERSION
Z-Mount
Z-mount (bright) with FME-system
BZ-Mount
BZ-mount (black) with FME-system
ZP4-Mount
ZP4-mount (bright) with 4 m cable and FME-connector
BZP4-Mount
BZP4-mount (black) with 4 m cable and FME-connector
SPECIFICATIONS
MODEL
Z-MOUNT
APPLICATION
Low-profile mount for mobile antennas
FREQUENCY
0 - 470 MHz
CONNECTION TO
WHIP
Toggle joint (for wing screw or hat screw with key)
MATERIALS
Stainless steel
Bright or black chromed brass
Environment-proof plastics
COLOUR
Black or bright and black
HEIGHT
Approx. 40 mm
INSTALLATION
DIAMETER
38 mm
BUILD-IN DEPTH
10.5 mm
RECOMMENDED
INSTALLATION
TORQUE
7.5 ± 1 Nm
WEIGHT
Z-version: Approx. 90 g
ZP4-version: Approx. 230 g
MOUNTING
ø21 mm dia. hole (For roof thickness 2 mm up to 7.5
mm mounting hole should be ø22 mm dia.)
ROOF THICKNESS
Max. 2.0 mm (Models up to 7.5 mm on request)
INSTALLATION
The Z-mount is designed for mounting in a 21 mm dia. hole. The whip is
fastened to the mount by means of our standard ball joint and wing screw
system. The adjustable ball joint ensures that the whip can always be
mounted in a vertical position independent of the angle of the installation
spot.
The Z-mount is particularly well suited for mounting on car roofs because of
its ability to be installed exclusively with access from the outside. The Z-
mount for roof thickness from 2 mm to 7.5 mm must be mounted from the
inside.
However, the antenna can be installed anywhere on the car, as the Z-mount
is equally well suited for mounting on e.g. trunk or wing.
A good contact surface on the inside of the car body must always be
ensured, thus enabling the base plate to get in direct contact with the metal
parts of the car, which is of utmost importance for proper performance of
the antenna.

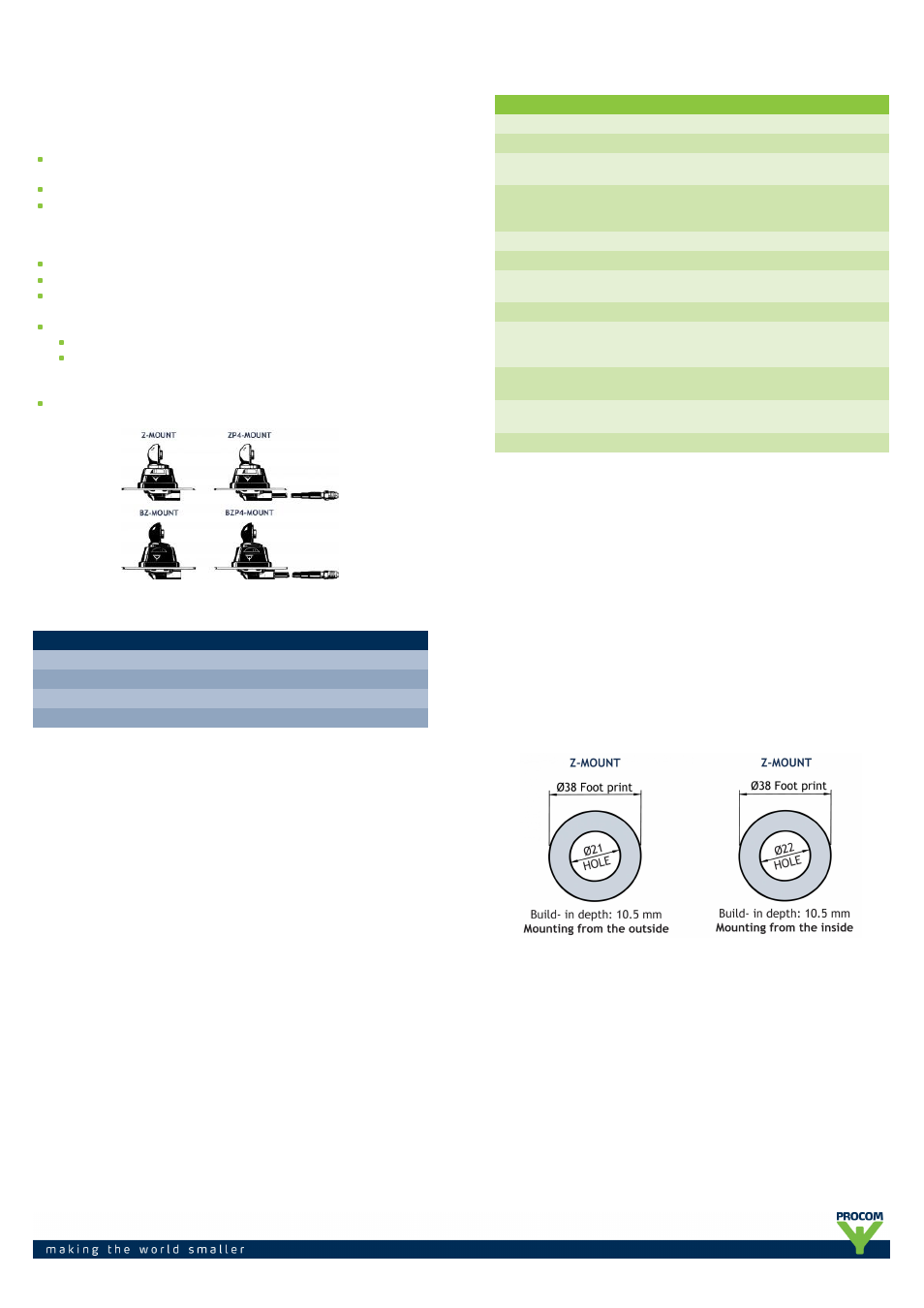

1. INSTALLATION DIMENSIONS
