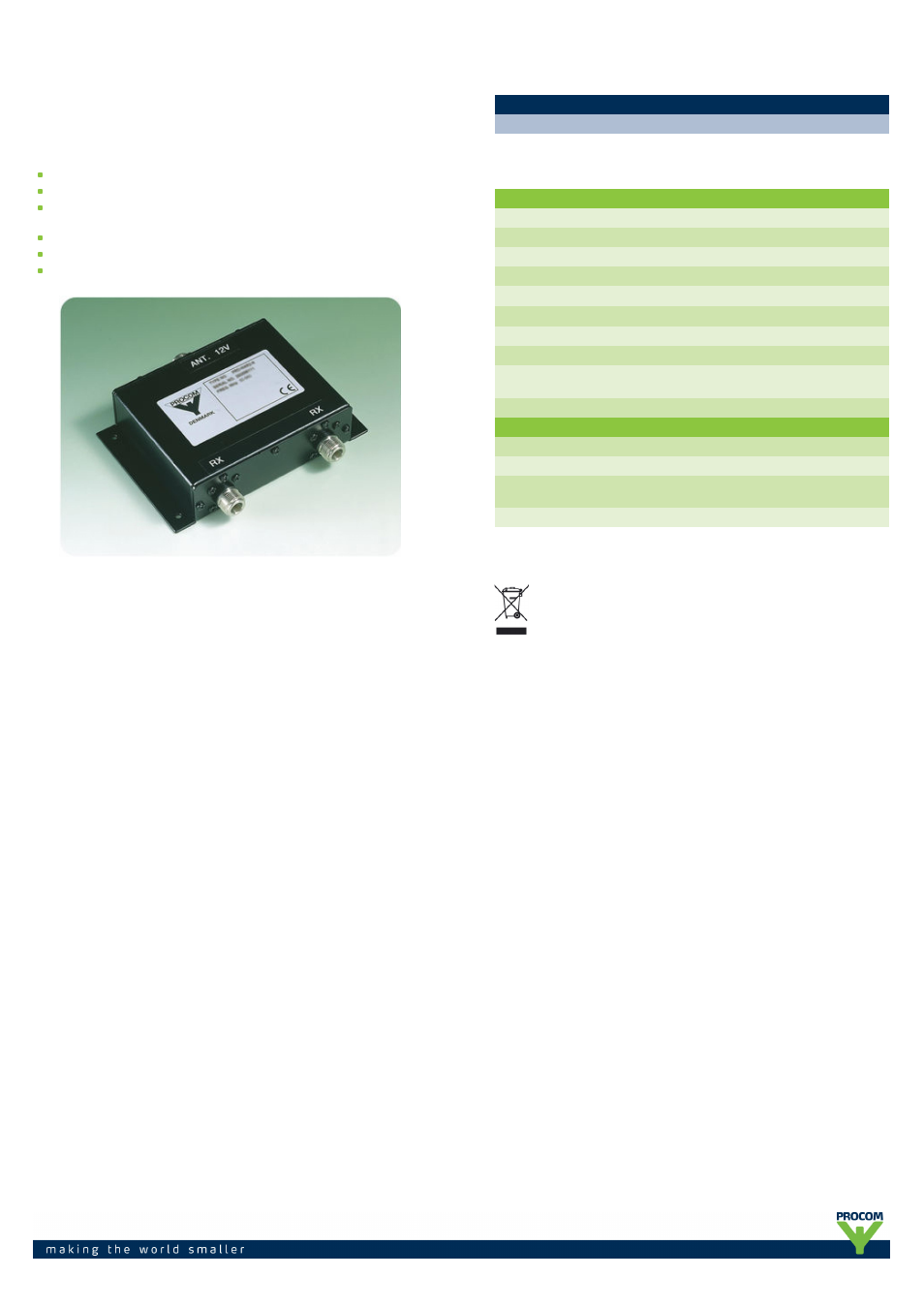

PRO-MARHP2-4-3-2-12V
Miniature 2-Channel Receiver Multicoupler for the 4 m, 3 m
and 2 m bands
DESCRIPTION
For use where two receivers have to share the same antenna.
High isolation between the two receivers: > 20 dB.
High-dynamic range amplifier built in to compensate for loss in the
multicoupler network.
Ultra-high third-order intercept point, > +37 dBm.
Low noise figure for the amplifier: 1.2 dB.
12 V operating voltage (24 V as option).
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
PRO-MARHP2-4-3-2-12V 210000182
SPECIFICATIONS
ELECTRICAL
MODEL PRO-MARHP2-4-3-2-12V
FREQUENCY RANGE 68 - 180 MHz
GAIN (INPUT TO ALL OUTPUTS) 2 dB ± 1 dB (Gain adj. 1 dB to 11 dB)
NOISE FIGURE, AMPLIFIER < 1.2 dB
OIP 3
> 31 dBm
P
1dB
> 10 dBm
ISOLATION OUTPUT TO OUTPUT > 20 dB
IMPEDANCE Nom. 50 Ω
INPUT SWR
OUTPUT SWR
Max. 3.5, typ. 2.0
Max. 1.5, typ. 1.3
SUPPLY POWER 12 V @ 60 mA
MECHANICAL
TEMP. RANGE -30° C → +60° C
CONNECTORS N-female
DIMENSIONS (L x W x H) 138 (incl. connectors) x
152 (incl. flanges) x 35 mm
WEIGHT Approx. 500 g
PROCOM A/S reserve the right to amend specifications
without prior notice.
06/02/13
