Procom BRF 900-...-125 User Manual
Brf 900

BRF 900/...-125
Band-Pass/Band-Reject Filters for the 900 MHz Band

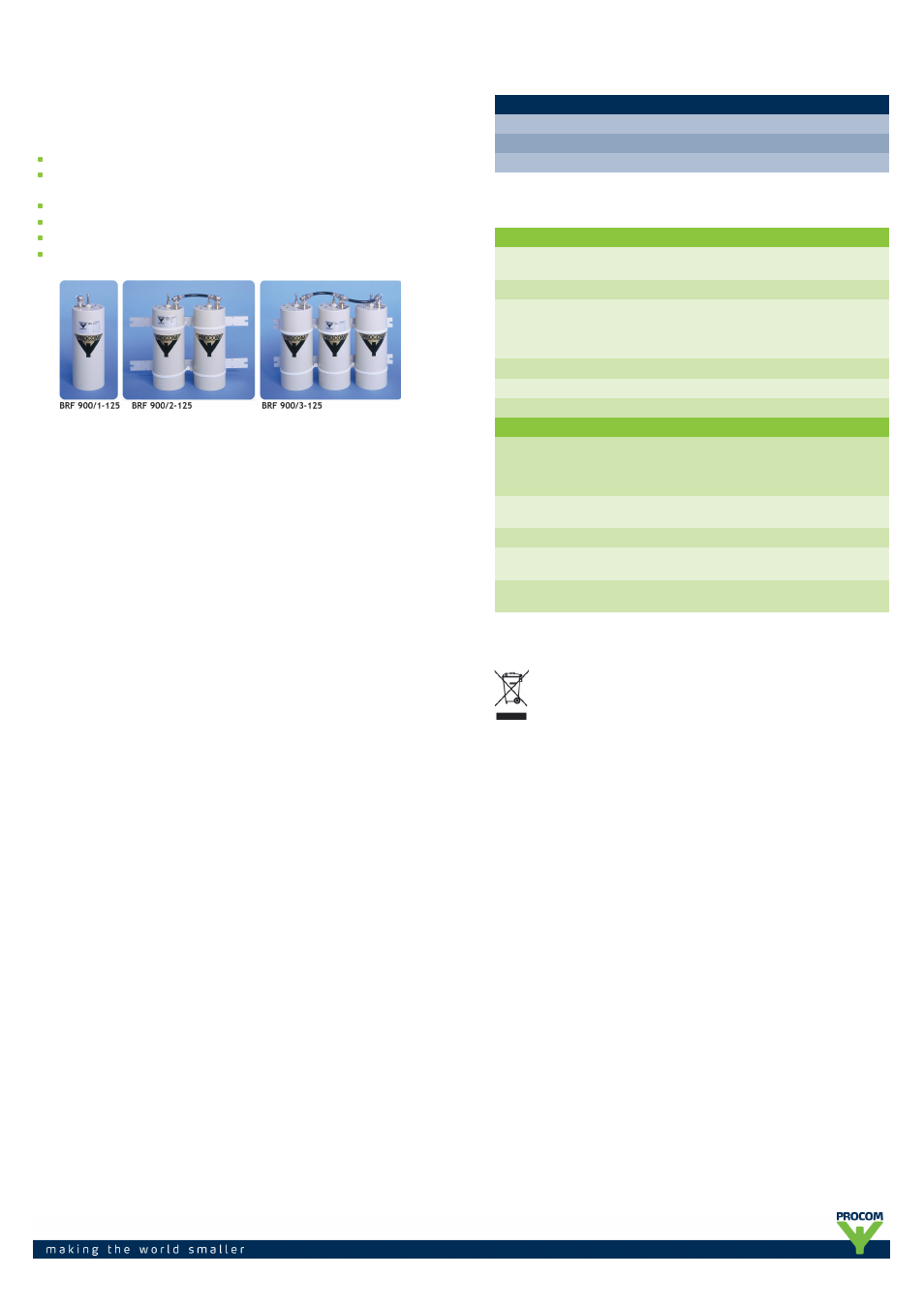

DESCRIPTION
High power base station band-reject filters for the 890 – 960 MHz range.
The use of large ø125 mm cavities means a high Q,
resulting in a very narrow notch bandwidth.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 4500.
High frequency stability on temperature and power.
19” mounting brackets are available as an option.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
BRF 900/1-125
200001601
BRF 900/2-125
200001946
BRF 900/3-125
200001947
SPECIFICATIONS
ELECTRICAL
MODEL
BRF
900/1-125
BRF
900/2-125
BRF
900/3-125
FREQ. RANGE
890 - 960 MHz 890 - 960 MHz
890 - 960 MHz
MAX. INPUT
POWER
300 W @
0.5 dB IL
175 W @
1.0 dB IL
300 W @
1.0 dB IL
175 W @
2.0 dB IL
300 W @
1.5 dB IL
175 W @
3.0 dB IL
1 dB NOTCH BANDWIDTH 1 ‰ of f
c
1 ‰ of f
c
1 ‰ of f
c
IMPEDANCE
Nom. 50 Ω
Nom. 50 Ω
Nom. 50 Ω
SWR
< 1.5
< 1.5
< 1.5
MECHANICAL
TEMP.
RANGE
RH 0-90%
non-condensing
–30° C →
+60° C
–30° C →
+60° C
–30° C →
+60° C
FREQ.
STABILITY
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
CONNECTORS
N-female
N-female
N-female
DIMENSIONS
ø125 x
200 mm
L:125 x W:250
x H:200 mm
L:125 x W:375
x H:200 mm
WEIGHT
Approx.
0.7 kg
Approx.
1.5 kg
Approx.
2.5 kg
PROCOM A/S reserve the right to amend specifications
without prior notice.
08/04/11
