BPF 3/...-125
Band-Pass Filters for the 130 MHz Band
DESCRIPTION
High power base station band-pass filters for the 116 - 146 MHz range.
The use of large ø125 mm cavities gives a high Q,
resulting in a very narrow passband.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 4500.
High frequency stability on temperature and power.
Mounted on 19” brackets.**
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
BPF 3/1-125 200000974
BPF 3/2-125 200000968
BPF 3/3-125 200000596
SPECIFICATIONS
ELECTRICAL
MODEL BPF 3/1-125 BPF 3/2-125 BPF 3/3-125
FREQ. RANGE 116 - 146 MHz
MAX. INPUT POWER 350 W @
0.5 dB IL
125 W @
2.0 dB IL
350 W @
1.0 dB IL
125 W @
4.0 dB IL
350 W @
1.5 dB IL
125 W @
6.0 dB IL
INSERTION LOSS Adjustable
0.4 - 2.0 dB
Adjustable
0.8 - 4.0 dB
Adjustable
1.2 - 6.0 dB
ATTENUATION See figure 1 See figure 2 See figure 3
IMPEDANCE Nom. 50 Ω
SWR
(at resonance)
< 1.5
ECHANICAL
TEMP. RANGE
RH 0-90% non-condensing
–30° C → +60° C
FREQ. STABILITY Approx. 1.5 ppm/° C
CONNECTORS N-female
DIMENSIONS ø125 x 765 mm L:125 x
W:285 x
H:765 mm
L:125 x
W:425 x
H:765 mm
WEIGHT Approx.
3.4 kg
Approx.
7.0 kg
Approx.
10.5 kg

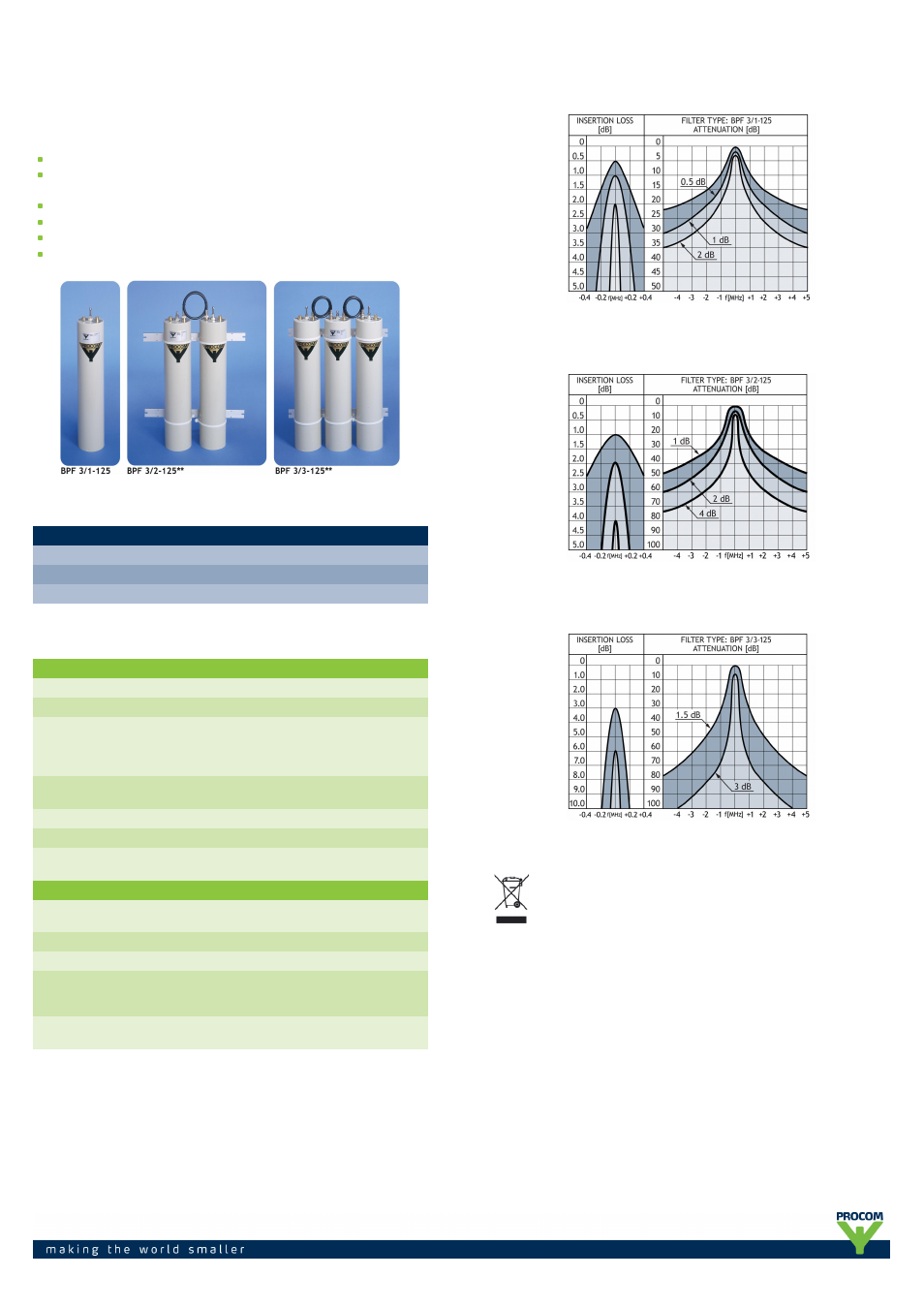

TYPICAL RESPONSE CURVES
Figure 1
TYPICAL RESPONSE CURVES
Figure 2
TYPICAL RESPONSE CURVES
Figure 3
