PRO-DIPX 174/223-960-...
Diplexer for the 0 - 174 MHz and 223 - 960 MHz Ranges
DESCRIPTION
Diplexer for combining or splitting the two ranges 0 - 174 MHz and 223 -
960 MHz.
Excellent wide-band coverage.
Very low ripple and insertion loss in the pass bands.
Isolation better than 30 dB.
Provided with N-connectors. (Other types on request)
Aluminium profile box ensures extraordinary high mechanical strength.
Black vinyl-coated to prevent corrosion.
Provided with brackets for panel mouting.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
PRO-DIPX 174/223-960-N 200001848
SPECIFICATIONS
ELECTRICAL
Type Diplexer
MODEL PRO-DIPX 174/223-960-...
FREQUENCY Ant-low port : 0 - 174 MHz
Ant-high port : 223 - 960 MHz
MAX. INPUT POWER 50 W each port
INSERTION LOSS ≤ 0.5 dB
ISOLATION Low to high port: ≥ 30 dB
IMPEDANCE 50 Ω on all terminals
SWR ≤ 1.5 on all ports
MECHANICAL
TEMP. RANGE –30° C → +60° C
CONNECTORS N-Female
DIMENSIONS incl. connectors
(L x W x H)
107 x 89 x 30 mm
WEIGHT Approx. 350 g
MOUNTING ø4.3 mm (4 holes)

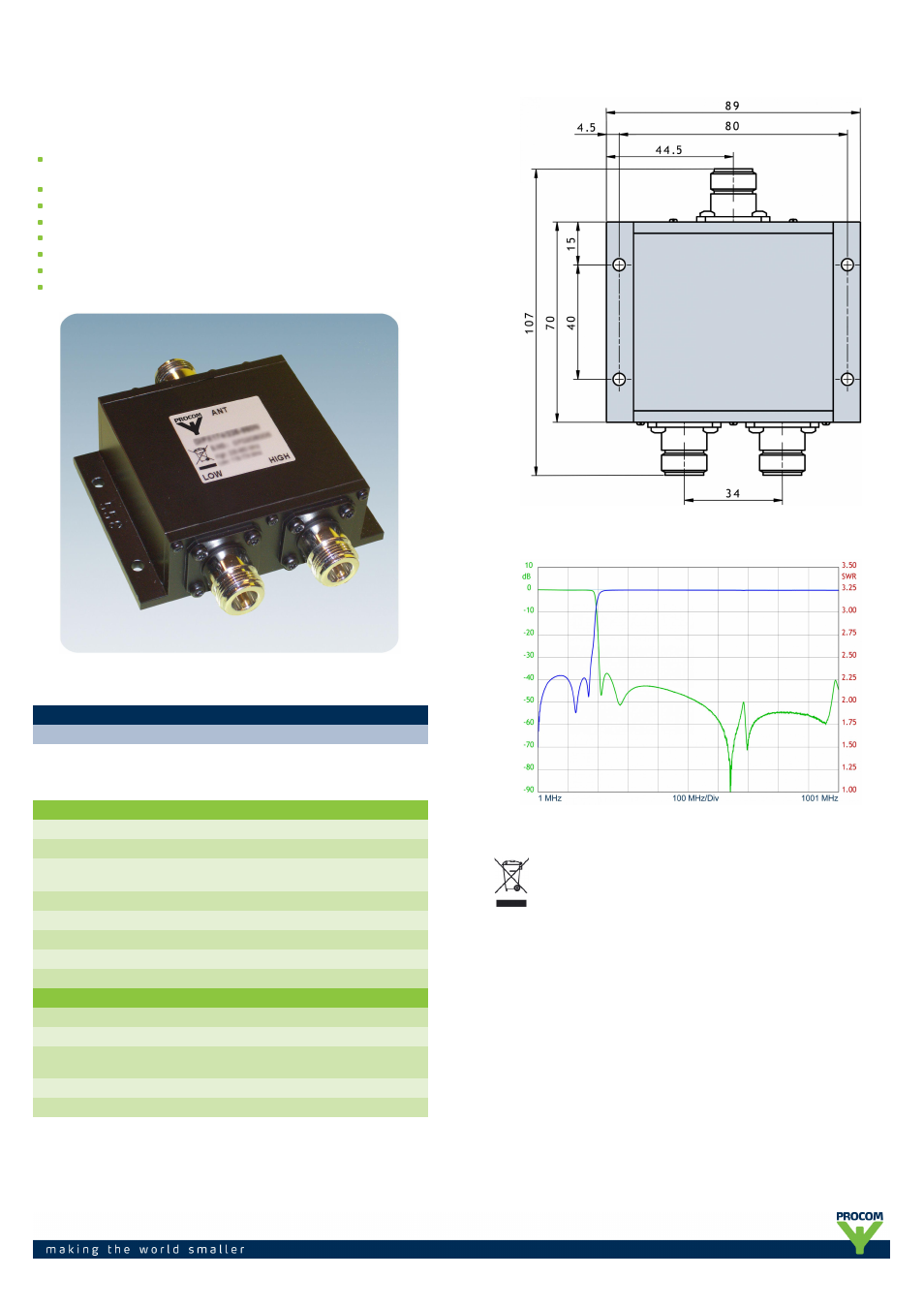

MECHANICAL DIMENSIONS
TYPICAL RESPONSE CURVE
PROCOM A/S reserve the right to amend specifications
without prior notice.
03/03/14
