Procom MCA 1-Z-... User Manual
Mca 1-z

MCA 1-Z/...
¼ λ Glass fiber Motor Cycle Antenna with Shock Spring for
the 160 MHz Band
DESCRIPTION

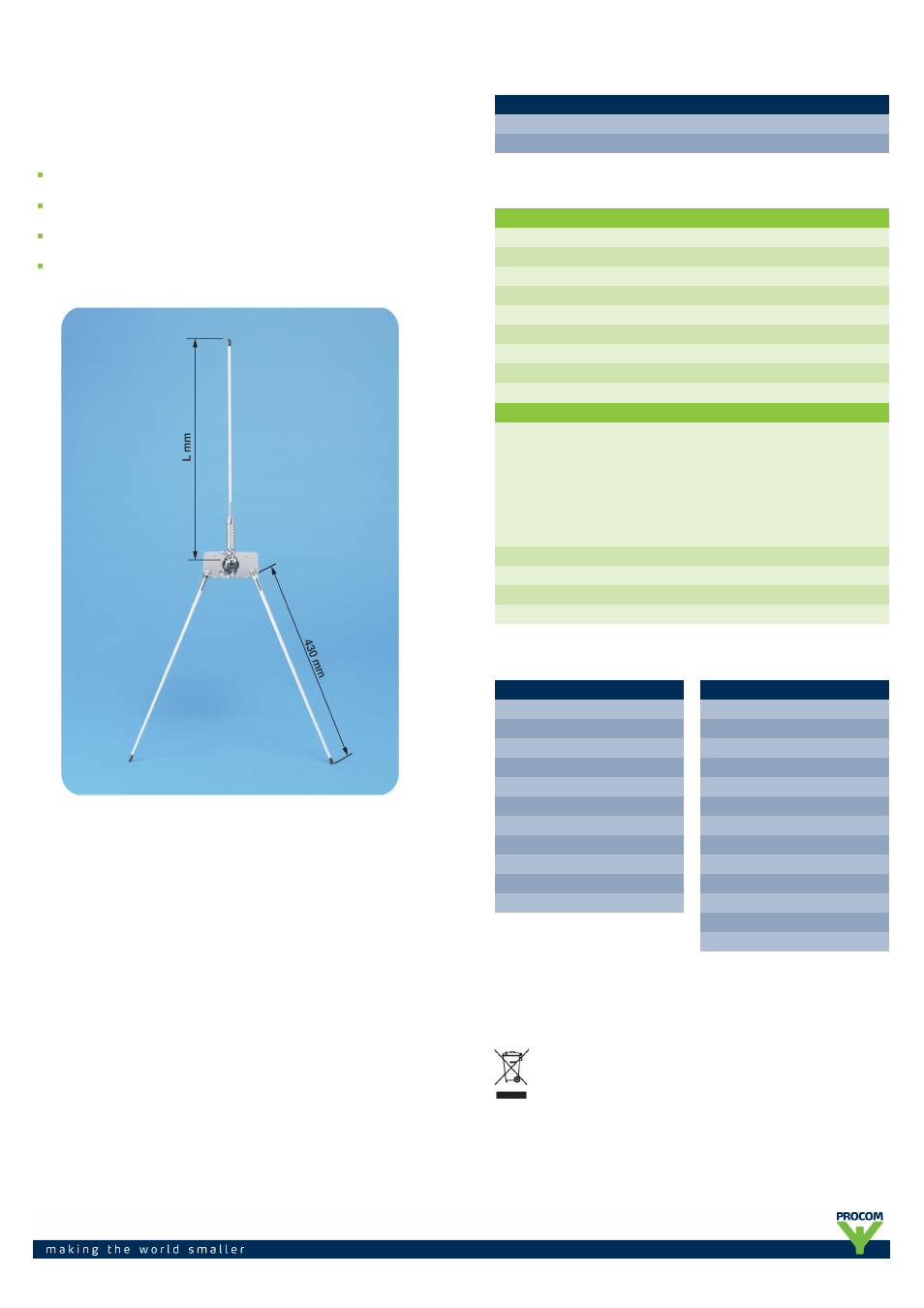

MCA 1-Z/... is a glass fiber ground-plane antenna type with 2 radials,
ideal for a motor cycle.
Sturdy, general-purpose ¼ λ ground-plane antenna in professional
quality.
Stainless steel Z-mount with ball-joint and hat screw whip-fastening
system.
Simple mounting by the Z-mount with FME-connection (supplied without
cable).
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
FREQUENCY
L (MM)
MCA 1-Z/l
130000674
136 - 160 MHz
470
MCA 1-Z/h
130000680
150 - 174 MHz
430
SPECIFICATIONS
ELECTRICAL
MODEL
MCA 1-Z/...
ANTENNA TYPE
¼ λ ground-plane
FREQUENCY
136 - 174 MHz in two models
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
0 dB (acc. to EIA RS-329-1)
BANDWIDTH
≥ 24 MHz @ SWR ≤ 2.0
SWR
< 1.3 @ f.res.
MAX. POWER
150 W
MECHANICAL
MATERIALS
Whip:
Conical glass fiber
Chromed brass
Spring:
Stainless steel
Mount:
Chromed brass
Weather- and shockproof plastics
Stainless steel
COLOUR
White/bright chrome
HEIGHT
Approx. 900 mm
WEIGHT
Approx. 500 g
MOUNTING
On the back of a motor cycle
FME-SYSTEM ACCESSORIES
FME-CABLES
TYPE
LENGTH
1 m FME
1 m
2 m FME
2 m
3 m FME
3 m
4 m FME
4 m
5 m FME
5 m
6 m FME
6 m
4 m FME-white
4 m white
6 m FME-white
6 m white
12 m FME-white
12 m white
18 m FME-white
18 m white
FME-CONNECTORS
TYPE
CONNECTOR
FME-FME
FME-FME
FMEP
Prolongation
FME-N
N
FME-FSMA
FSMA
FME-BNC
BNC
FME-TNC
TNC
FME-UHF
UHF
FME-MUHF
Mini-UHF
FME-EMUHF
Elbow-MUHF
FME-EBNC
Elbow-BNC
FME-ETNC
Elbow-TNC
FME-SMA
SMA
For further information about other types of FME-cables and FME-connectors, please compare the cable
and connector data sheets under accessories in our catalogue.
PROCOM A/S reserve the right to amend specifications
without prior notice.
19/01/12
