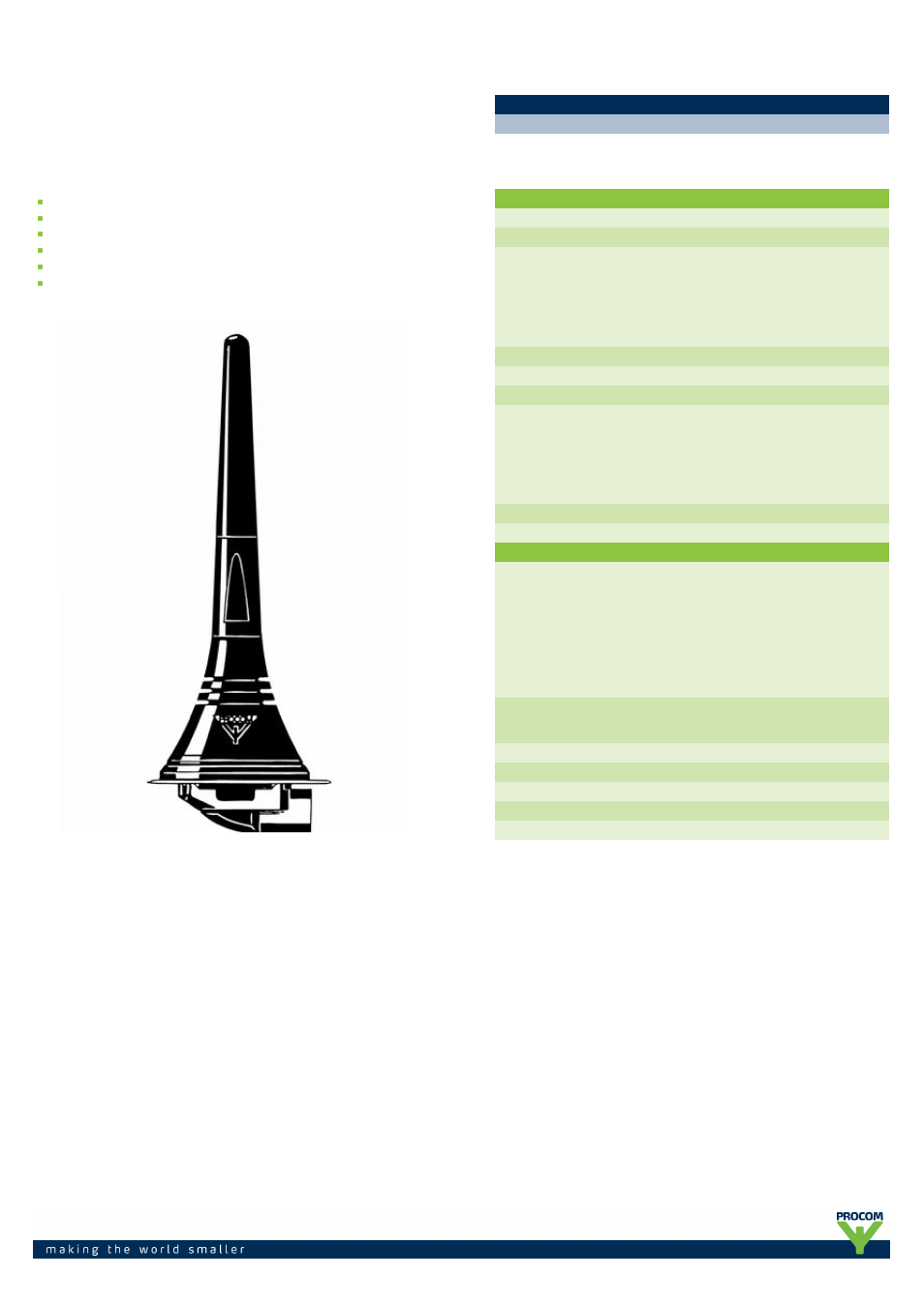

Procom MU 800-900-1800-2100-2600-lx - Manual

MU
800/900/1800/2100/2600-LX
Multi-frequency Mobile Antenna for the 800 MHz, 900
MHz, 1800 MHz, 2100 MHz and 2600 MHz Bands
DESCRIPTION
Multi-frequency antenna – multi bands – one antenna!
Stainless steel LX-mount.
Especially suited for roof mounting.
Provided with FME-connection (supplied without cable).
Flexible section in mount for adjustment of whip (tiltable 15° by hand).
Installation with access from the outside only (requiring an 18 mm dia.
hole).
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
MU 800/900/1800/2100/2600-LX 130001567
SPECIFICATIONS
ELECTRICAL
MODEL MU 800/900/1800/2100/2600-LX
ANTENNA TYPE Multi-frequency mobile antenna
FREQUENCY 790 - 862 MHz
880 - 960 MHz (EGSM/NMT-900)
1710 - 1880 MHz (DCS-1800/PCN)
1900 – 2200 MHz (UMTS) and
2500 - 2690 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN Approx. 0 dB on all bands (acc. to EIA RS-329-1)
BANDWIDTH 800 MHz: > 50 MHz @ SWR ≤ 2.0
900 MHz: > 40 MHz @ SWR ≤ 1.5
1800 MHz: Approx. 200 MHz @ SWR ≤ 2.0 (typ.)
1900 – 2200 MHz @ SWR ≤ 2.0 (typ.) and
2600 MHz: > 200 MHz @ SWR ≤ 2.5 (typ.)
SWR ≤ 2.5
MAX. POWER 15 W
MECHANICAL
MATERIALS Whip:
Black cover POM
Black-chromed brass
Mount:
Stainless steel
Brass
Weather- and shockproof plastics
RECOMMENDED
INSTALLATION
TORQUE
3.5 Nm max.
CABLE FME-cable to be ordered separately
COLOUR Black
HEIGHT 93 mm
WEIGHT Approx. 33 g
MOUNTING 18 mm dia. hole
INSTALLATION
The LX-mount is especially suited for roof-mounting. It is recommended to
mount the antenna at the centre of the roof to ensure the best
omnidirectional coverage. Mounting can take place in an 18 mm dia. hole
with access from the outside only. When cleaning the car in car-washing
machines, the whip should be removed – a 9 mm fork spanner can be used.
After wash, the whip is refitted and tightened lightly with the spanner.The
mount is equipped with a bendable section (±15°) to make it possible to
adjust the antenna to an upright position.
1. INSTALLATION DIMENSIONS:
