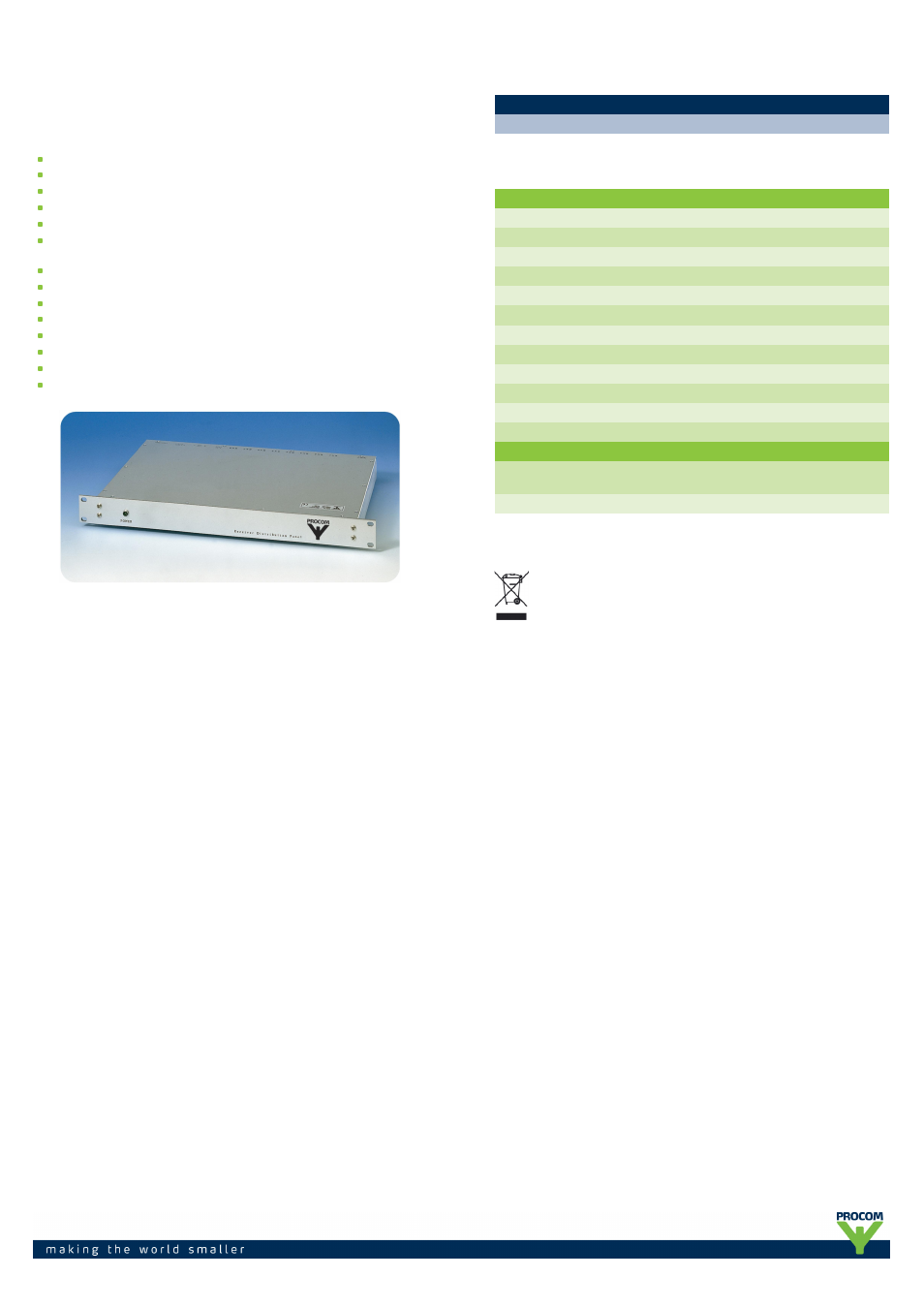

PRO-AR8G-1G-3G-N
19" Rack-Mountable 8-Channel RX-Multicoupler
DESCRIPTION
Only 1 HU (1 height unit HU = 44.45 mm).
Galvanically isolated 230 VAC/12 VDC power supply (24 V as option).
Automatic switching to 12 V if 230 V mains supply fails.
Wide frequency range. Covers 1 GHz - 3 GHz.
High isolation between the eight receivers: > 20 dB.
High-dynamic range amplifier to compensate for loss in multicoupler
network.
High third-order intercept point: > +25 dBm.
Low noise figure: < 4.0 dB for amplifier.
N-female connectors on input and outputs (other types available).
Available with connectors on front.
"POWER ON" lamp on front.
Preselector can be built in (BPF 4/4, BPF 2/4, BPF 70/4-HX, etc.).
230 VAC IEC connector CEE22 fitted with mains filter.
12 VDC terminal connector block fitted with noise filter.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
PRO-AR8G-1G-3G-N 210000136
SPECIFICATIONS
ELECTRICAL
MODEL PRO-AR8G-1G-3G-N
FREQUENCY RANGE 1 – 3 GHz
GAIN INPUT TO ALL OUTPUTS 2 dB ± 4 dB
NOISE FIGURE, AMPLIFIER < 4.0 dB @ 1900 MHz
NOISE FIGURE, OUTPUTS 1-8 < 6.0 dB @ 1900 MHz
OIP 3
> +25 dBm
P1dB > +10 dBm
INPUT SWR Max. 2.5 typically < 1.5
OUTPUT SWR Max. 2.0 typically < 1.5
ISOLATION OUTPUT TO OUTPUT > 20 dB
ISOLATION OUTPUT TO INPUT > 20 dB
VOLTAGE 230 V @ 0.1 A/12 V @ 1.5 A
MECHANICAL
DIMENSIONS (W x H x D) 19'' x 1 HU x 261 mm
(483 x 44.45 x 261 mm)
WEIGHT Approx. 3.0 kg
PROCOM A/S reserve the right to amend specifications
without prior notice.
