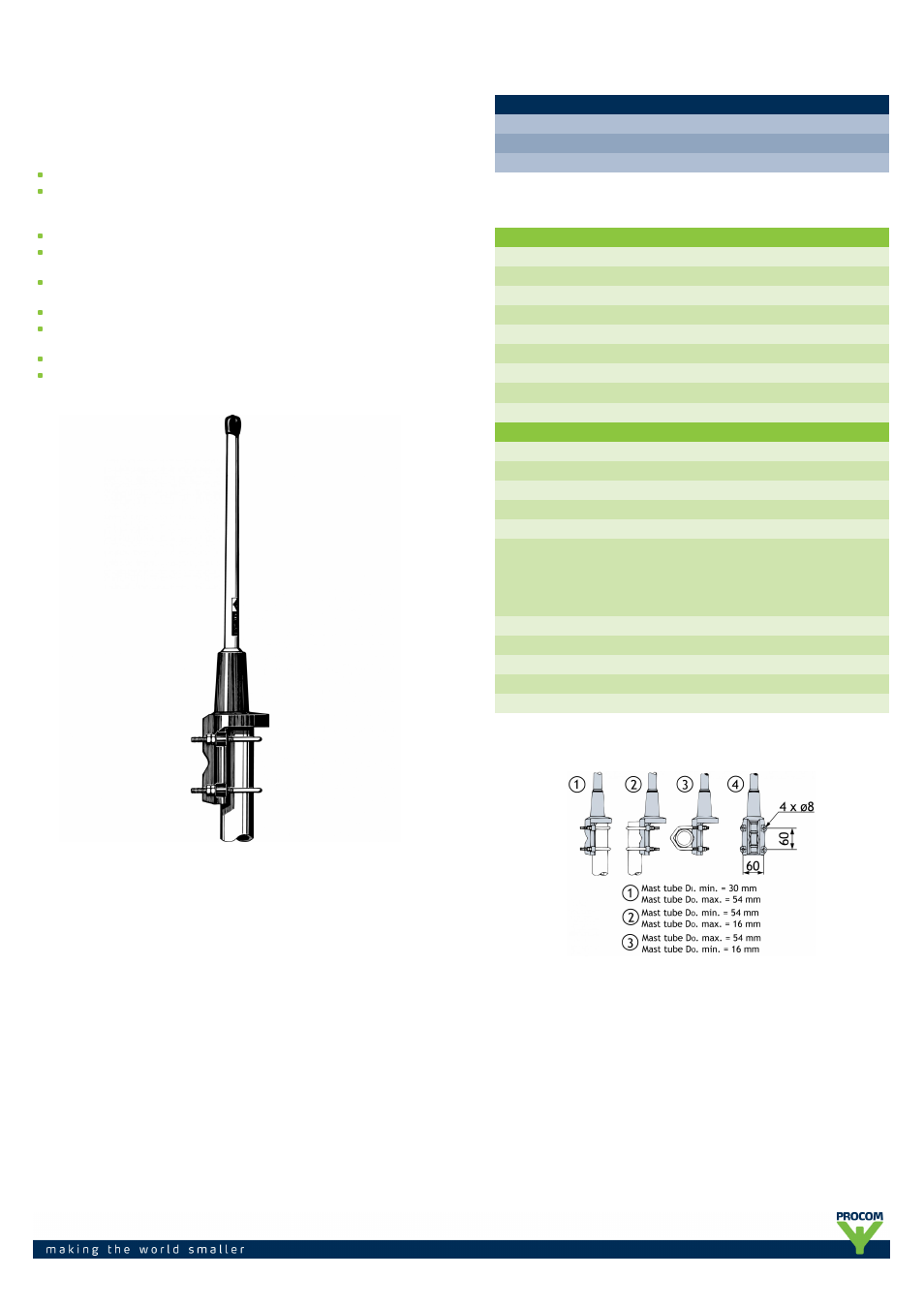

CXL 2400-1LW/...
0 dBd Omnidirectional Base Station and Marine Antenna for
the 2400 MHz Band
DESCRIPTION
Vertically polarized, omnidirectional base station and marine antenna.
Provided with the sturdy “LW” mast mount – a lightweight,
multipurpose, epoxy-coated mounting bracket made of non-corrosive
aluminium.
The accompanying U-bolts and fittings are made of stainless steel.
To be mounted on vertical or horizontal mast tubes, 16 to
54 mm in outer diameter.
The cable can be led either on the outside or along the inside of the
mast tube.
Large bandwidth with respect to both SWR and gain.
Highly suitable for duplex operation with large spacing between the TX
and the RX frequencies.
The antenna element is sealed in a high-quality, conical glass fibre tube.
The CXL 2400-1LW/... is a vibration-proof, lightweight, slim-line,
corrosion resistant, modern style base station and marine antenna.
ORDERING DESIGNATIONS
TYPE PRODUCT NO. FREQUENCY
CXL 2400-1LW/l 100000196 2300 – 2500 MHz
CXL 2400-1LW/m 100000195 2400 – 2600 MHz
CXL 2400-1LW/h 100000309 2500 – 2700 MHz
SPECIFICATIONS
ELECTRICAL
MODEL CXL 2400-1LW/...
ANTENNA TYPE Coaxial, collinear antenna, broadbanded
FREQUENCY Models within 2300 – 2700 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN 2 dBi 0 dBd
BANDWIDTH ≥ 100 MHz @ SWR ≤ 1.5
SWR ≤ 2.0, typ. ≤ 1.5
MAX. POWER 100 W
MECHANICAL
TEMP. RANGE -30°C → +70°C
CONNECTOR N-female
WIND SURFACE Approx. 0.02 m²
WIND LOAD Approx. 26 N @ 160 km/h
COLOUR Marine white
MATERIALS Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium,
epoxy-coated
Clamps: Stainless steel
TOTAL HEIGHT Approx. 400 mm
DIA. IN TOP END 14 mm
DIA. IN BOTTOM END 16 mm
WEIGHT Approx. 400 g
MOUNTING On 16 to 54 mm dia. mast tube
MULTI-PURPOSE MOUNTING BRACKET
PLEASE NOTE
The antenna is delivered with a DC-connection between the antenna
element and the mounting bracket.
