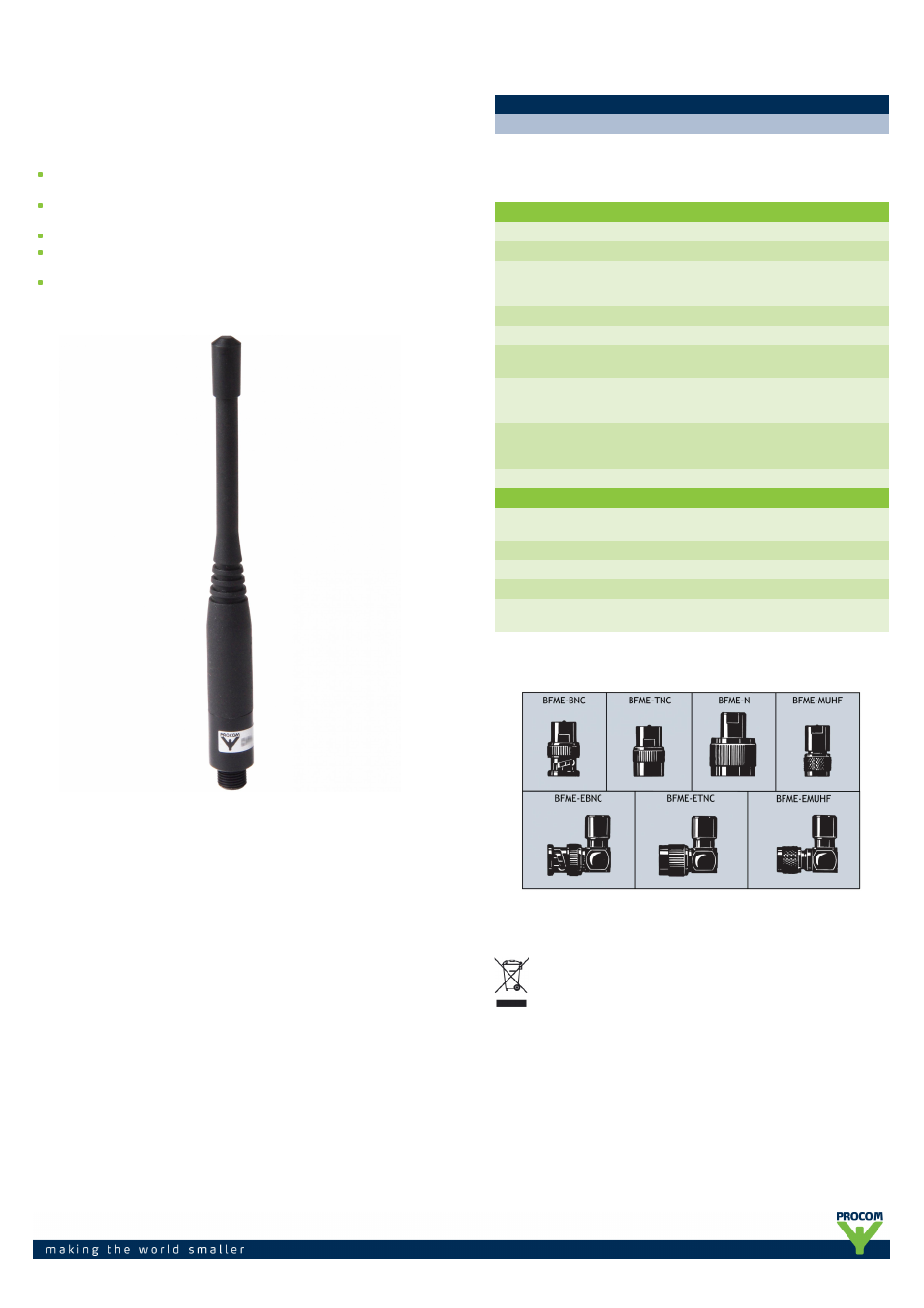

TFA 400/900/1800-FME
¼ λ Triple-Frequency Antenna for 400, 900 and 1800 MHz
bands. Designed for portable equipment
DESCRIPTION
This antenna makes it possible to operate on 400, 900 and
1800 MHz at the same time on one antenna.
Flexible antenna element built into an elastic shroud of hard-wearing
and weather- and shockproof plastics.
Ready-tuned and unity gain on all three bands.
Provided with universal FME-connection system for optimum flexibility
and with easily exchangeable connectors.
Designed for use with the following of Procom's line of black FME-
connectors (to be ordered separately): BFME-BNC, BFME-TNC, BFME-N,
BFME-MUHF, BFME-EBNC, BFME-ETNC and BFME-EMUHF.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
TFA 400/900/1800-FME 140000472
The antenna is delivered factory-tuned. Other frequencies on request.
SPECIFICATIONS
ELECTRICAL
MODEL TFA 400/900/1800-FME
ANTENNA TYPE Triple-frequency portable antenna
FREQUENCY 380 – 430 MHz
880 – 960 MHz
1710 – 1880 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN 0 dB compared to a ¼ λ portable antenna
on the same equpiment
BANDWIDTH 400 MHz : ≥ 50 MHz @ SWR ≤ 2.0
880 - 960 MHz : ≥ 80 MHz @ SWR ≤ 2.0
1710 - 1880 MHz : ≥ 300 MHz @ SWR ≤ 2.5
SWR 400 MHz : < 1.3 @ f. res.
900 MHz : < 1.5 @ f. res.
1800 MHz : < 2.2 @ f. res.
MAX. POWER 25 W
MECHANICAL
MATERIALS Thermoplastic rubber
Black-chromed brass
COLOUR Black
TOTAL HEIGHT Approx. 130 mm
WEIGHT Approx. 20 g
CONNECTOR FME (female) (Exchangeable BFME-connectors
to be ordered separately)
RECOMMENDED BFME-CONNECTORS
(To be ordered separately)
PROCOM A/S reserve the right to amend specifications
without prior notice.
27/09/12
