Procom MU 901-1801-umts-lx User Manual
Page 2
The mount is equipped with a bendable section (±15°) to make it possible
to adjust the antenna to an upright position.

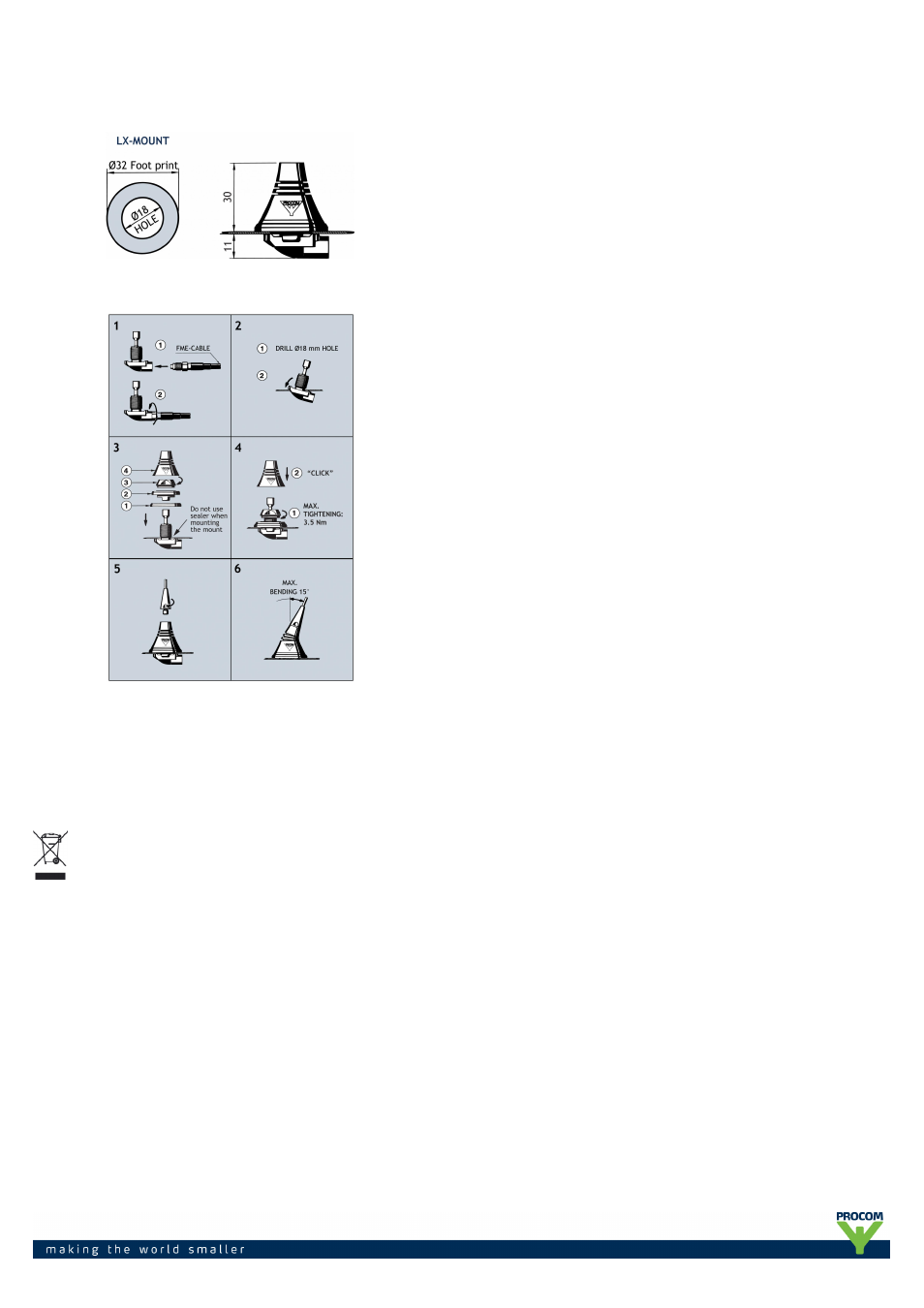

1. INSTALLATION DIMENSIONS
2. INSTALLATION STEPS
Do not use sealer on rubber gasket or other places.
PLEASE NOTE: When tightening the revolving nut (see picture 4), special
care must betaken to keep the spanner in the correct position.
3. TUNING
The antenna is delivered factory-tuned and requires no further tuning.
PROCOM A/S reserve the right to amend specifications
without prior notice.
13/12/11
