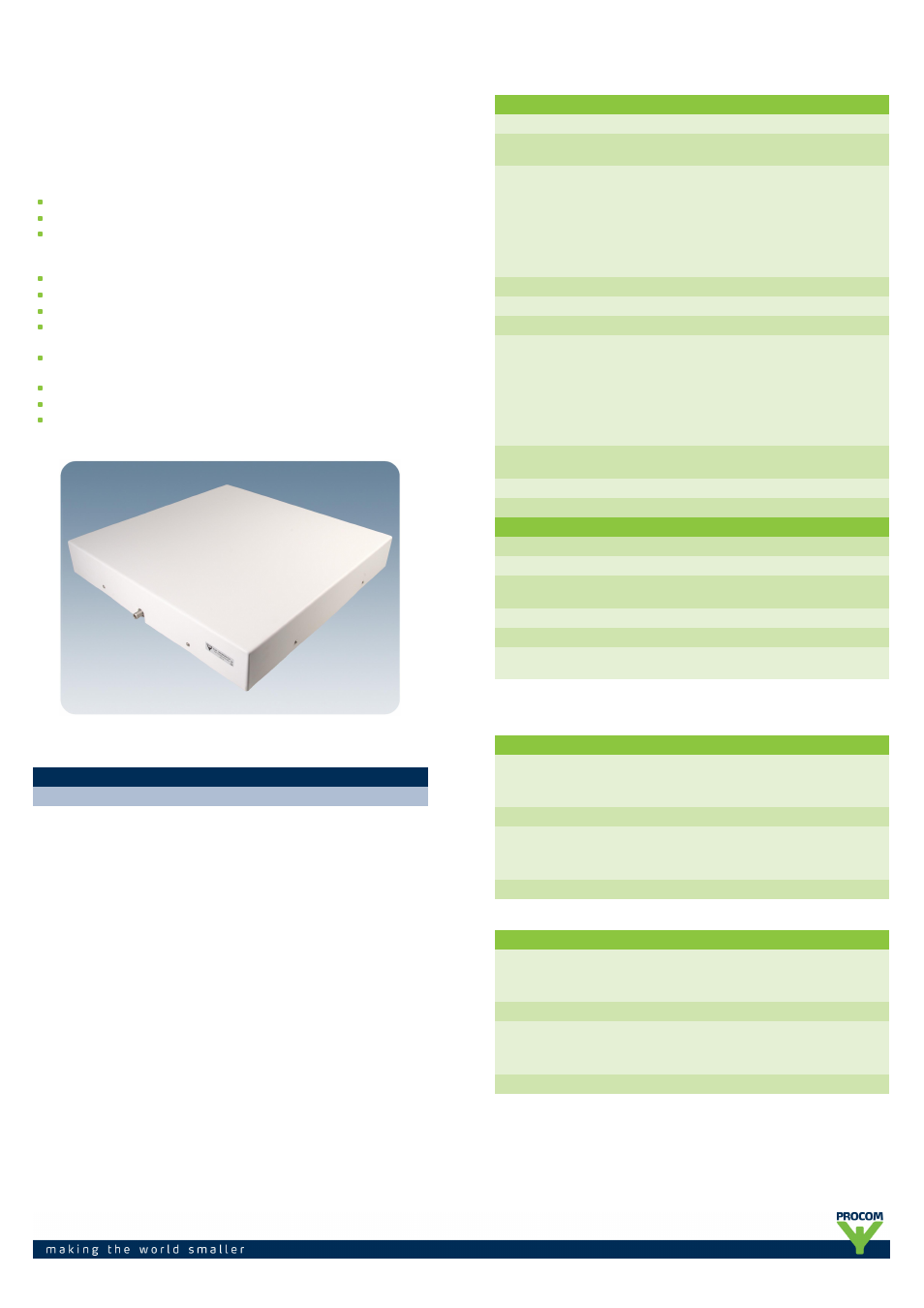

XCPI 160/900/
1800/1900/2100/R
Indoor Right Hand Circularly Polarized Antenna for the 160
MHz, GSM, DCS, PCS and UMTS Bands
DESCRIPTION
Quin band indoor base station antenna - one antenna with five bands.
Low profile antenna for the 160 MHz, GSM, DCS, PCS and UMTS bands.
XCPI 160/900/1800/1900/2100/R is a right hand circularly polarized
antenna for indoor use e.g. on ceilings and walls inside ships and
houses.
Circularly polarized antenna is chosen to avoid out-of-phase signals.
Reduces flutter considerably.
Specially designed for closed rooms.
Covers 160 MHz, GSM, DCS, PCS and UMTS bands with a radiation
of approx. 2 dBic.
The built-in antennas are combined with built in diplexers, with low
insertion loss, which make it possible to have only one downlead cable.
The antenna is carefully sealed with a discreet cover.
The antenna is provided with one connector.
The connector is placed at one side to enable mounting close to a wall
or a ceiling.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
XCPI 160/900/1800/1900/2100/R
100000203
SPECIFICATIONS
ELECTRICAL
MODEL
XCPI 160/900/1800/1900/2100/R
ANTENNA TYPE
Right hand circularly polarzsed quin band
antenna
FREQUENCY
160 MHz: 144 - 175 MHz
GSM:
880 - 960 MHz
DCS:
1710 - 1880 MHz
PCS:
1850 - 1990 MHz
UMTS:
1910 - 2200 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Circular (right hand)
GAIN
Approx. 2 dBic
BANDWIDTH
160 MHz: ≥ 31 MHz @ SWR ≤ 2.5
GSM:
≥ 80 MHz @ SWR ≤ 2.5
DCS:
≥ 170 MHz @ SWR ≤ 2.0
PCS:
≥ 140 MHz @ SWR ≤ 2.0
UMTS:
≥ 240 MHz @ SWR ≤ 3.0
HALF POWER
BEAMWIDTH
Approx. 60º (H- and E-plane)
SWR
≤ 1.5 f.res.
MAX. POWER
25 W
MECHANICAL
CONNECTOR
N-female
COLOUR
Marine white
MATERIALS
Cover: PS (white)
Chassis: Stainless steel
SIZE (W x L x H)
Approx. 608 x 608 x 90 mm
WEIGHT
Approx. 10 kg
MOUNTING
ø 5.5 mm (four holes). For optimum performance a
groundplane of 1 x 1 m is required
SPECIFICATIONS DIPLEXER
ELECTRICAL FOR BUILT-IN DIPLEXER DIPX 225/330
FREQUENCY
Low port
: 0 - 225 MHz
High port : 330 - 1300 MHz
MAX. INPUT POWER
25 W each port
INSERTION LOSS
0 - 225 MHz
: ≤ 0.5 dB
330 - 1300 MHz : ≤ 0.5 MHz
ISOLATION
Low to high port : ≥45 dB
ELECTRICAL FOR BUILT-IN DIPLEXER DIPX 1000/1550
FREQUENCY
Low port
: 0 - 1000 MHz
High port : 1550 - 2500 MHz
MAX. INPUT POWER
35 W each port
INSERTION LOSS
0 - 1000 MHz
: ≤ 0.5 dB
1550 - 2500 MHz : ≤ 0.5 MHz
ISOLATION
Low to high port : ≥ 45 dB
