Procom G-CXL 2-2C User Manual
G-cxl 2-2c

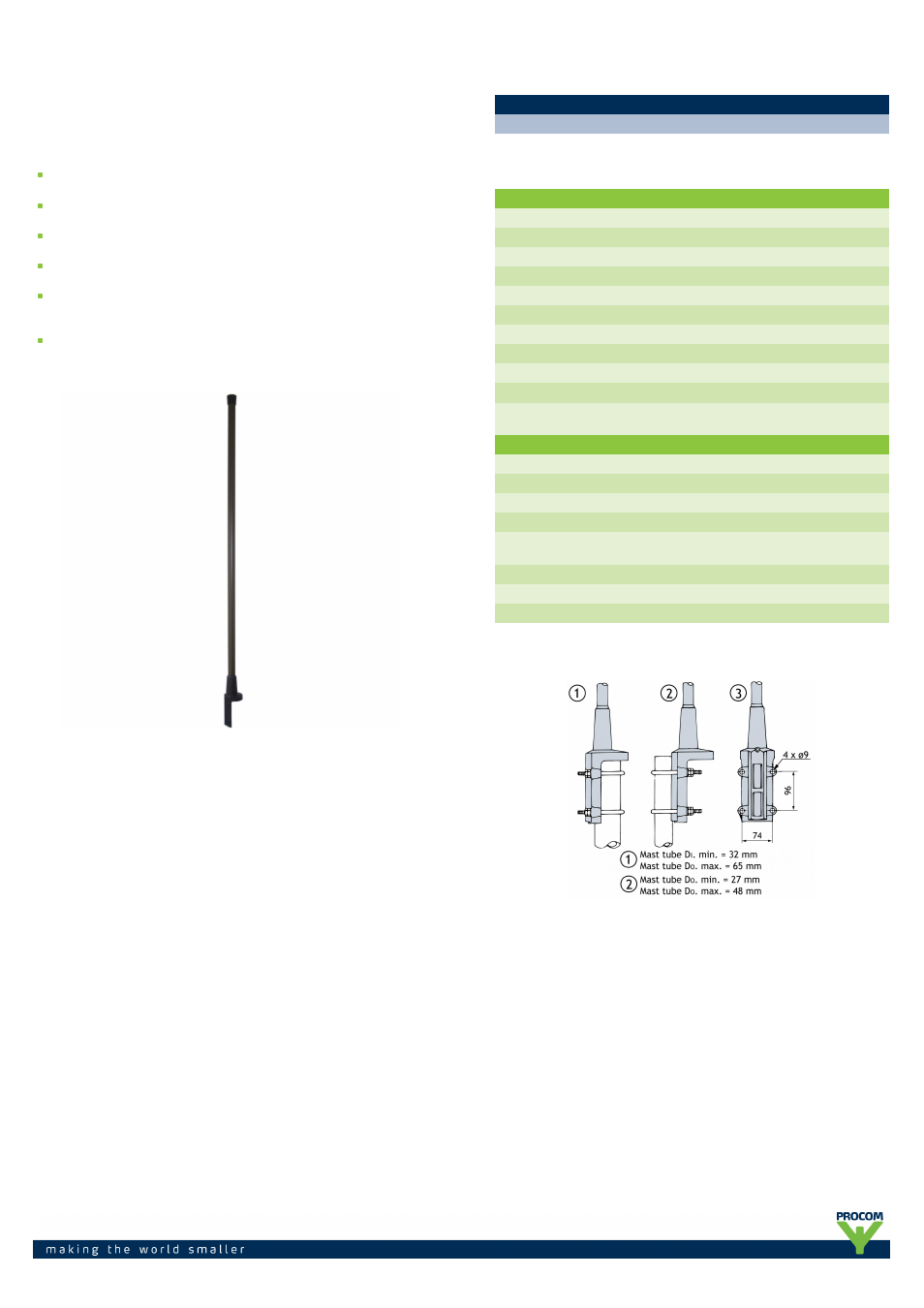

G-CXL 2-2C
Universal, Unity-Gain Base Station and Marine Antenna for
the 160 MHz Band. Designed for defense units.
DESCRIPTION
G-CXL 2-2C is a 0 dBd gain, omnidirectional base station antenna.
The antenna covers the complete band: 144 - 175 MHz.
G-CXL 2-2C is designed for fixation on supporting tubes with outer
diameter between 27 mm and 65 mm.
The construction of the mount makes it possible to lead the cable either
inside or along the outside of the mast tube.
A glass fibre tube completely encloses the carefully designed radiating
element to ensure long dependable service in all climates.
Atmospherical discharges are immediately led to ground as all metal
parts are DC-grounded (consequently, the antenna shows a DC-short
across the coaxial cable).
This antenna is used where reliability is of utmost importance. A long
lifetime has been taken into consideration when designing this antenna
– it is sturdy and strong.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
G-CXL 2-2C
100000267
SPECIFICATIONS
ELECTRICAL
MODEL
G-CXL 2-2C
ANTENNA TYPE
Coaxial, broad-band dipole
FREQUENCY
Covering: 144 - 175 MHz
IMPEDANCE
Nom. 50 Ω
RADIATION
Omnidirectional
POLARIZATION
Vertical
GAIN
2 dBi 0 dBd
BANDWIDTH
31 MHz
SWR
≤ 1.5
MAX. POWER
600 W
ANTISTATIC PROTECTION All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
CONNECTOR
N-female
WIND SURFACE
0.091 m²
WIND LOAD
115 N @ 160 km/h
COLOUR
Green
MATERIALS
Shroud: Polyurethane-coated glass fibre
Mast clamp : Seawater resistant aluminium, black
TOTAL HEIGHT
Approx. 1.75 m
WEIGHT
Approx. 3.0 kg
MOUNTING
On 27 - 65 mm dia. mast tube
MULTI-PURPOSE MOUNTING BRACKET
PLEASE NOTE
The antenna is delivered with a DC-connection between the antenna
element and the mounting bracket.
