INSTALLATION
This antenna can be mounted anywhere on the vehicle.
Mounting can take place exclusively with access from the outside when
drilling an 18 mm dia. hole. Mounting can take place from the inside by
drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the
bottom plastic ring of the gasket with a sharp cutter.
When cleaning the car in car-washing machines, remove the whip using a
spanner, size 9 mm. After wash, refit the whip and tighten it lightly with the
spanner.
As the mount is internally equipped with a bendable section, the antenna
can always be adjusted to an upright position independent of the tilt angle
of the installation spot (up to 30° tilt).

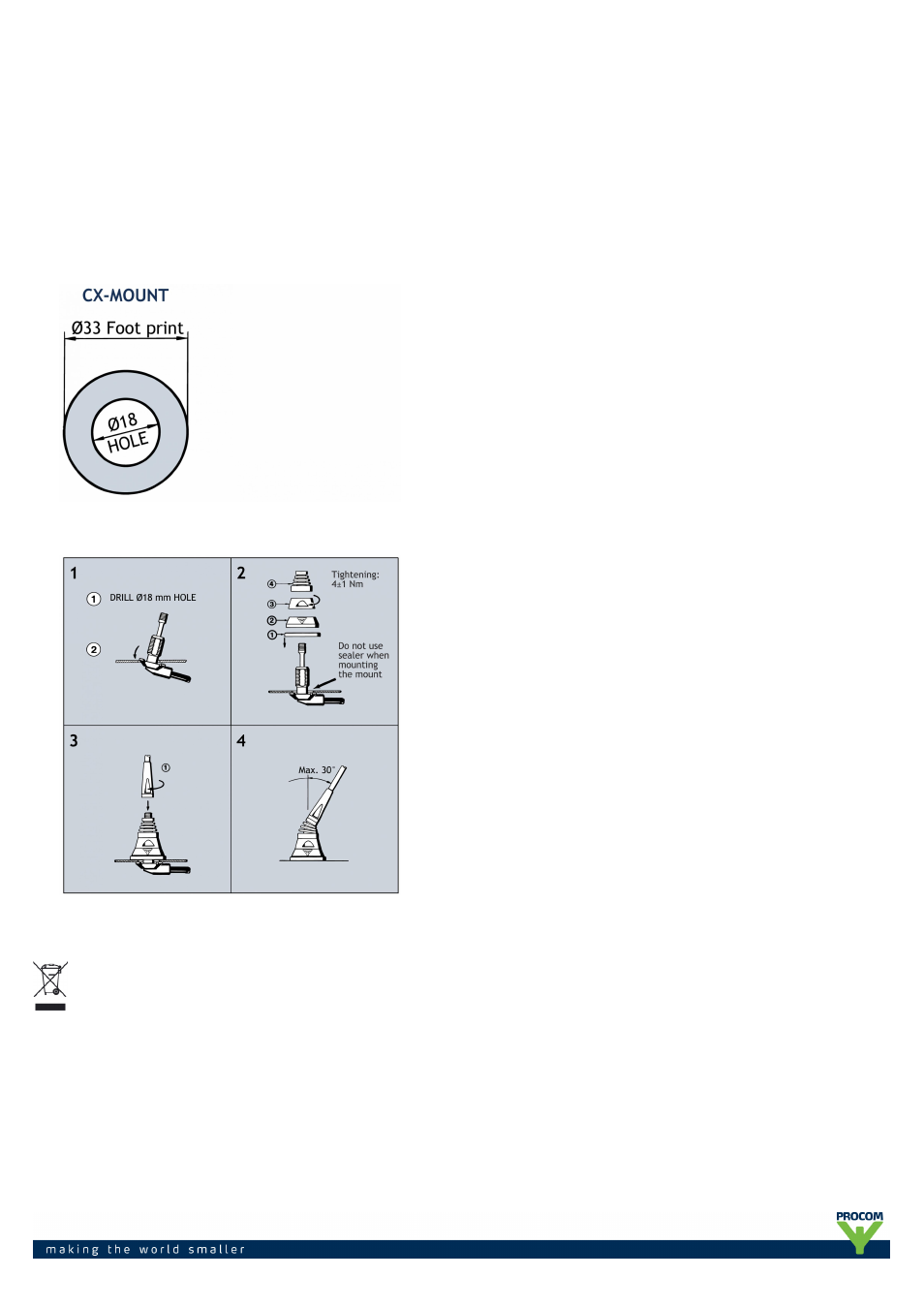

1. INSTALLATION DIMENSIONS:
2. INSTALLATION STEPS:
Do not use sealer on rubber gasket or other places.
PROCOM A/S reserve the right to amend specifications
without prior notice.
27/03/12
