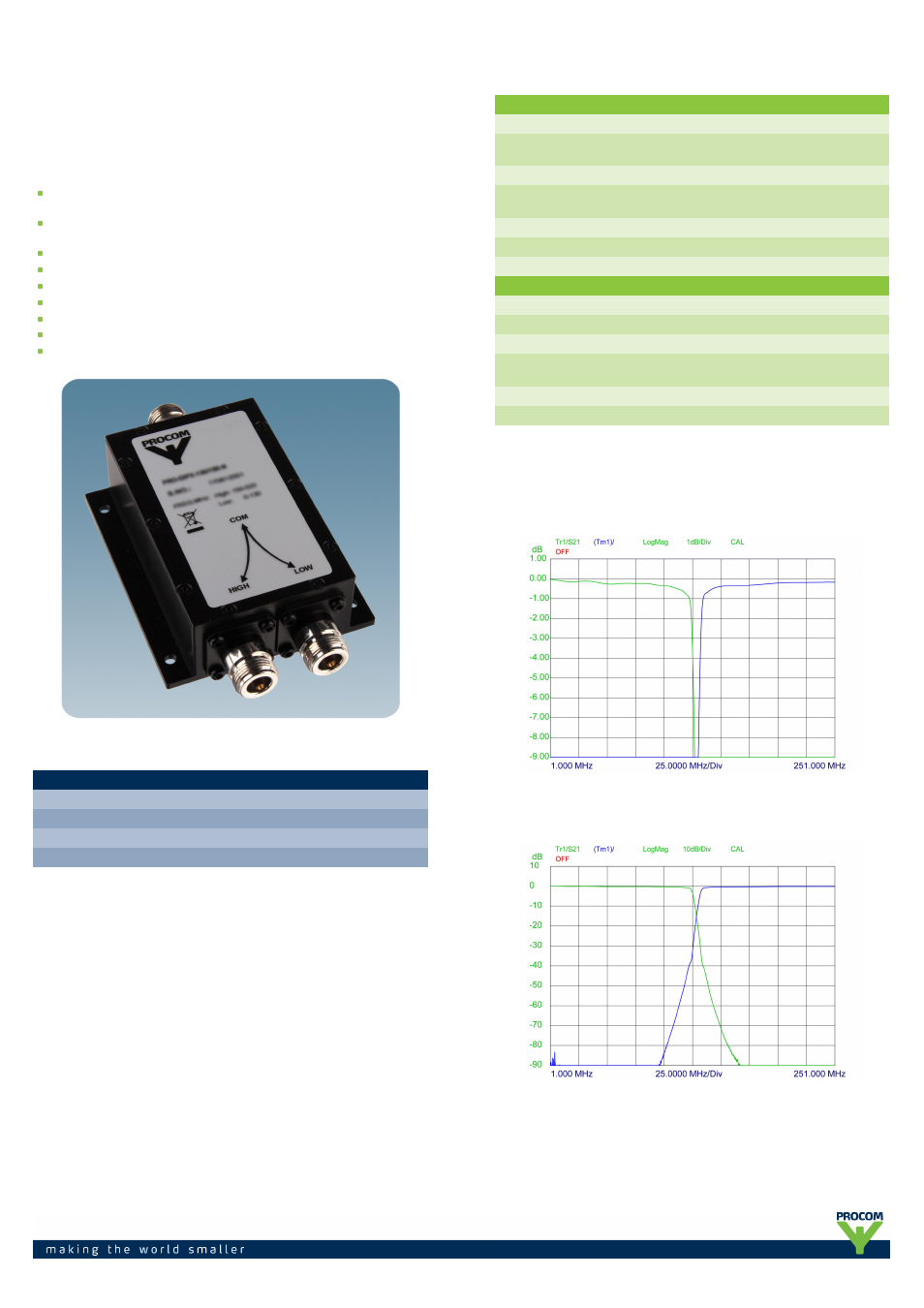

PRO-DIPX 122/136-…
100 W Diplexer for the 0 - 122 MHz and 136 - 960 MHz
Ranges
PRELIMINARY DATA SHEET
DESCRIPTION
Diplexer for combining or splitting the two ranges 0 – 122 MHz
and 136 – 960 MHz.
Chebychev design ensures very high isolation across the whole pass
ranges.
High power handling capability.
Low insertion loss.
Low weight.
Wide temperature range.
Milled aluminium box ensures extraordinarily high mechanical strength.
Black vinyl-coated to prevent corrosion.
Available with N-, SMA-, TNC- or BNC-female connector types.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
PRO-DIPX 122/136-N(f) 200002442
PRO-DIPX 122/136-SMA(f) 200002415
PRO-DIPX 122/136-TNC(f) 200002443
PRO-DIPX 122/136-BNC(f) 200002444
SPECIFICATIONS
ELECTRICAL
MODEL PRO-DIPX 122/136-…
FREQUENCY COM-LOW port: 0 - 122 MHz
COM-HIGH port: 136 - 960 MHz
MAX. RF POWER 100W CW simultaneously on both HIGH and LOW port
INSERTION LOSS 0 - 122 MHz: ≤ 1.0 dB
136 - 960 MHz: ≤ 1.0 dB
ISOLATION LOW to HIGH port: ≥40 dB
IMPEDANCE Nom. 50 Ω
SWR Max. 1.5:1 on all ports
MECHANICAL
TEMP. RANGE * -40° C to +60° C
CONNECTORS N-, SMA-, TNC- or BNC-female
IP RATING IP62
DIMENSIONS
(L x W x H)
133 x 80 x 31 mm / 5.24 x 3.15 / 1.22 in.
(incl. connectors and flanges)
WEIGHT Approx. 380 g / 0.84 lb.
MOUNTING ø4.3 mm / ø0.17 in. (4 holes)
* Temperature on box surface. Adequate cooling to keep max. temperature
below +60° C must be provided.
TYPICAL RESPONSE CURVES
INSERTION LOSS [dB]
TYPICAL RESPONSE CURVES
PORT ATTENUATION [dB]
