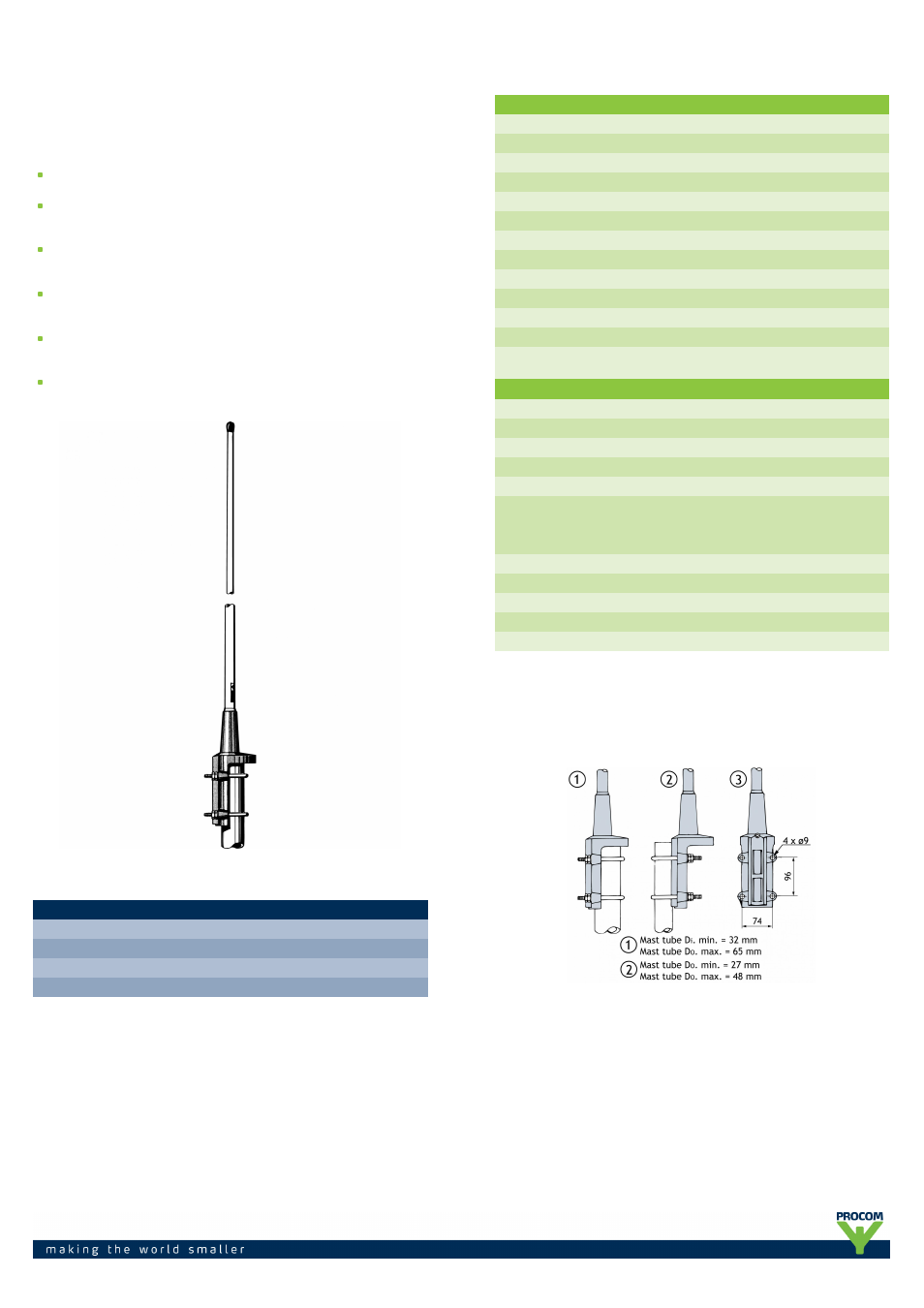

CXL 70-5C/T-7/...
Collinear, 7 dBi Base Station and Marine Antenna with 7
degrees electrical downtilt
DESCRIPTION
CXL 70-5C/T-7/... is a 7 dBi, vertically polarized, omnidirectional base
station and marine antenna, covering the 380 - 470 MHz band.
The antenna is provided with our “C” universal fixation bracket made of
epoxy-coated, seawater-resistant aluminium. The accompanying U-bolts
and fittings are made of stainless steel.
CXL 70-5C/T-7/... can be mounted on 27 to 65 mm dia. mast tubes and
it is possible to lead the cable either along the inside or on the outside
of the mast tube.
The carefully designed radiating element is sealed in a high-quality,
conical glass fibre tube with low wind-load, ensuring a performance
undisturbed by corrosive environments.
To substantially reduce noise caused by atmospherical discharges, all
metal parts in the antenna are DC-grounded. Consequently, the antenna
shows a DC-short across the coaxial cable.
The exceptional mechanical capabilities of this antenna ensure long
dependable service in all environments.
ORDERING DESIGNATIONS
TYPE PRODUCT NO. FREQUENCY
CXL 70-5C/T-7/s Contact for availability 380 - 400 MHz
CXL 70-5C/T-7/f 100000478 410 - 430 MHz
CXL 70-5C/T-7/l Contact for availability 430 - 450 MHz
CXL 70-5C/T-7/h 100000459 450 – 470 MHz
SPECIFICATIONS
ELECTRICAL
MODEL CXL 70-5C/T-7/...
ANTENNA TYPE Collinear, broad-banded
FREQUENCY * 380 - 470 MHz
IMPEDANCE Nom. 50 Ω
RADIATION Omnidirectional
POLARIZATION Vertical
GAIN 7 dBi (4.8 dBd)
ELECTRICAL TILT * 7°
HALF POWER BEAMWIDTH 14°
BANDWIDTH
20 MHz
SWR ≤ 1.5
MAX. POWER 250 W
ANTISTATIC PROTECTION All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
TEMP. RANGE -35°C → +70°C
CONNECTOR N-female
WIND SURFACE 0.14 m²
WIND LOAD 168 N @ 160 km/h
COLOUR Marine white
MATERIALS Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium,
epoxy-coated
Clamps: Stainless steel
TOTAL HEIGHT 3.0 m
DIA. IN TOP END 40 mm
DIA. IN BOTTOM END 40 mm
WEIGHT Approx. 4.3 kg
MOUNTING On 27 - 65 mm dia. mast tube
* The average gain is 7 dBi within the frequency band for 7° electrical
downtilt.
Other electrical downtilt available on request.
MULTI-PURPOSE MOUNTING BRACKET
