CXL 1800-8C/T-6
CXL 1800-8C/T-6 8 dBd Omnidirectional Base Station
Antenna for the 1800 MHz Band with 6° electrical downtilt
DESCRIPTION
Vertically polarized, omnidirectional base station antenna.
Approximately 8 dBd gain, in main slope.
Provided with the “C” mounting bracket – a universal fixation bracket
made of epoxy-coated seawater resistant aluminium.
The accompanying U-bolts and fittings are made of stainless steel.
To be mounted on mast tubes, 27 to 65 mm in outer diameter.
The cable can be led either on the outside or along the inside of the
mast tube.
Large bandwidth with respect to both SWR and gain.
Highly suitable for duplex operation with large spacing between the TX
and the RX frequencies, e.g. the DCS-1800/PCN cellular system.
The antenna element is sealed in a high-quality, conical glass fibre tube.
All metal parts in the antenna are DC-grounded to reduce the noise
caused by atmospherical discharge. Consequently, the antenna shows a
DC-short across the coaxial cable.
The CXL 1800-8C/T-6 is a vibration-proof, slim-line, corrosion resistant,
modern style base station antenna.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
CXL 1800-8C/T-6 100000308
SPECIFICATIONS
ELECTRICAL
MODEL CXL 1800-8C/T-6
ANTENNA TYPE Coaxial, collinear antenna,
broad-banded with 6° electrical downtilt
FREQUENCY 1710 – 1880 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN (MAIN SLOPE) 10 dBi 8 dBd
BANDWIDTH Approx. ≥ 200 MHz @ SWR ≤ 1.75
SWR ≤ 1.75, typ. ≤ 1.5
MAX. POWER 100 W
ANTISTATIC PROTECTION All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
TEMP. RANGE -30°C → +70°C
CONNECTOR N-female
WIND SURFACE Approx. 0.04 m²
WIND LOAD Approx. 51 N @ 160 km/h
COLOUR Marine white
MATERIALS Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium,
epoxy-coated
Clamps: Stainless steel
TOTAL HEIGHT Approx. 1.5 m
DIA. IN TOP END 20 mm
DIA. IN BOTTOM END 23 mm
WEIGHT Approx. 1.5 kg
MOUNTING On 27–65 mm dia. mast tube

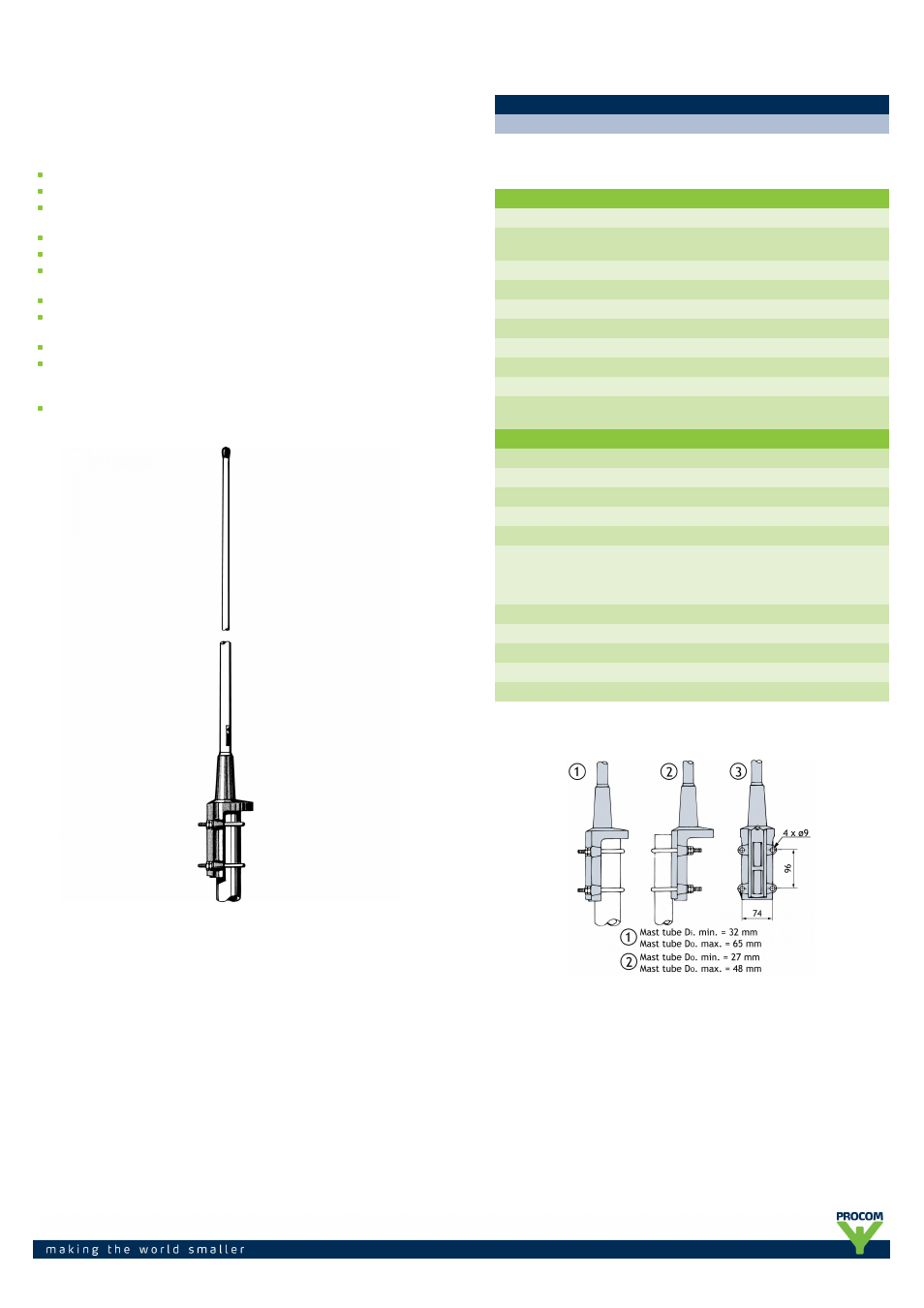

MULTI-PURPOSE MOUNTING BRACKET
PLEASE NOTE
The antenna is delivered with a DC-connection between the antenna
element and the mounting bracket.
