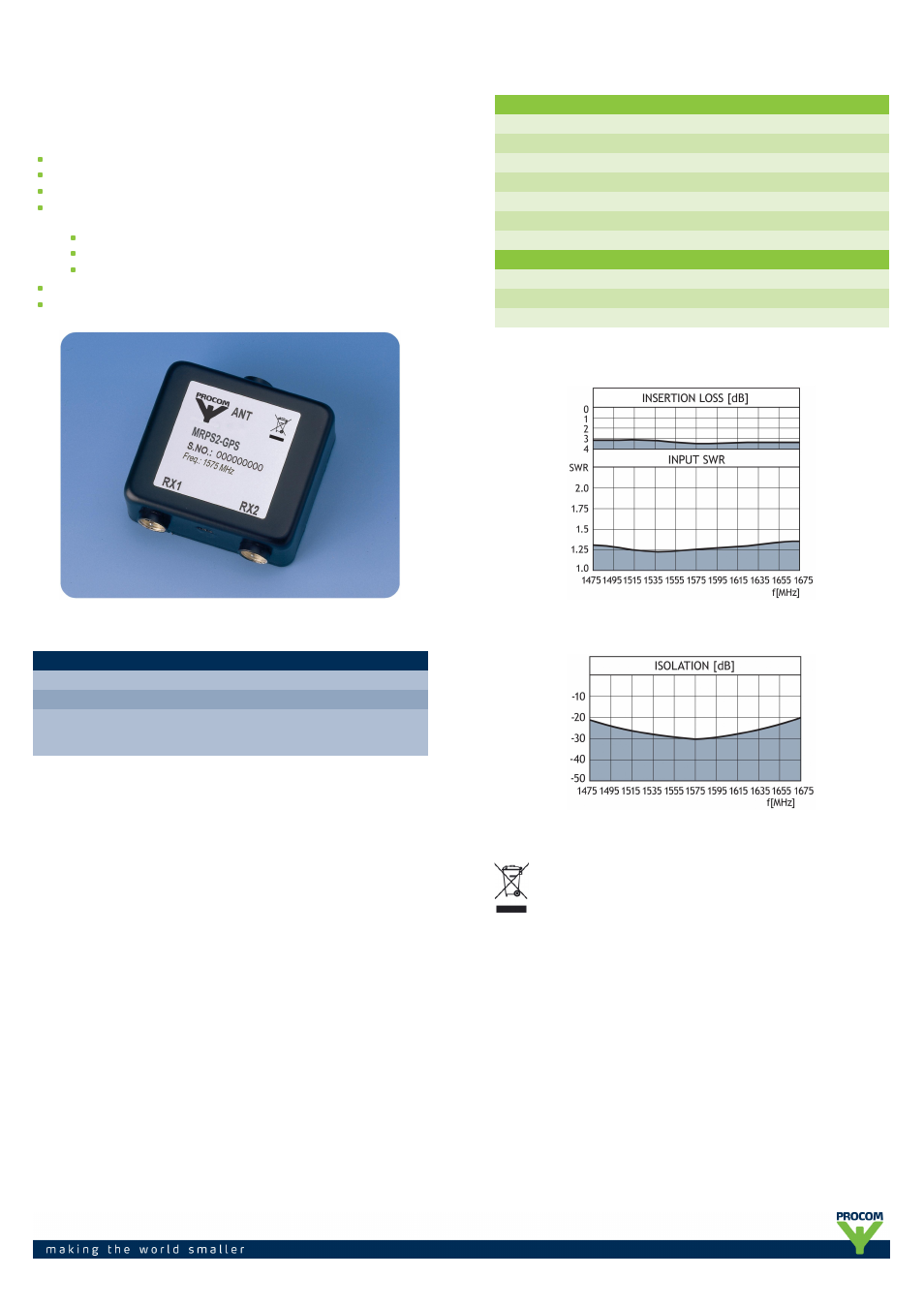

MRPS2-GPS-...
Miniature Receiver Power Splitter
DESCRIPTION
Miniature receiver power splitter.
Large frequency range: 1475 MHz to 1675 MHz.
High isolation between outputs: > 20 dB.
To be used where RF-signals, especially GPS-signals, shall be divided or
combined:
more receivers connected to the same coaxial cable 1.
more GPS-antennas on the same coaxial cable 2.
spectrum analyzer and GPS-receiver on the same coaxial cable. 3.
FME-male on all ports (other connectors on request).
Low weight.
ORDERING DESIGNATIONS
TYPE PRODUCT NO. DC PASS
MRPS2-GPS 200000995 DC pass on all ports
MRPS2-GPS-1DC 200001001 DC pass from RX port 1 to ANT port
MRPS2-GPS-2DC 200001003 DC pass from RX port 1 to ANT port
and from RX port 2 to ANT port,
but NOT from RX port 1 to RX port 2
SPECIFICATIONS
ELECTRICAL
MODEL MRPS2-GPS-...
FREQUENCY RANGE 1475 – 1675 MHz
INSERTION LOSS [S12] 3.3 dB ± 0.3 dB
ISOLATION RX 1 TO RX 2 Min. 17 dB typically > 20 dB
INPUT SWR Max. 1.5 typically < 1.3
OUTPUT SWR Max. 2.0 typically < 1.5
POWER HANDLING Max. 0.5 W per port
MECHANICAL
CONNECTORS FME-male, 3 pcs.
DIMENSIONS (L x W x H) 50 x 50 x 21 mm
WEIGHT Approx. 65 g
INSERTION LOSS
ISOLATION
PROCOM A/S reserve the right to amend specifications
without prior notice.
