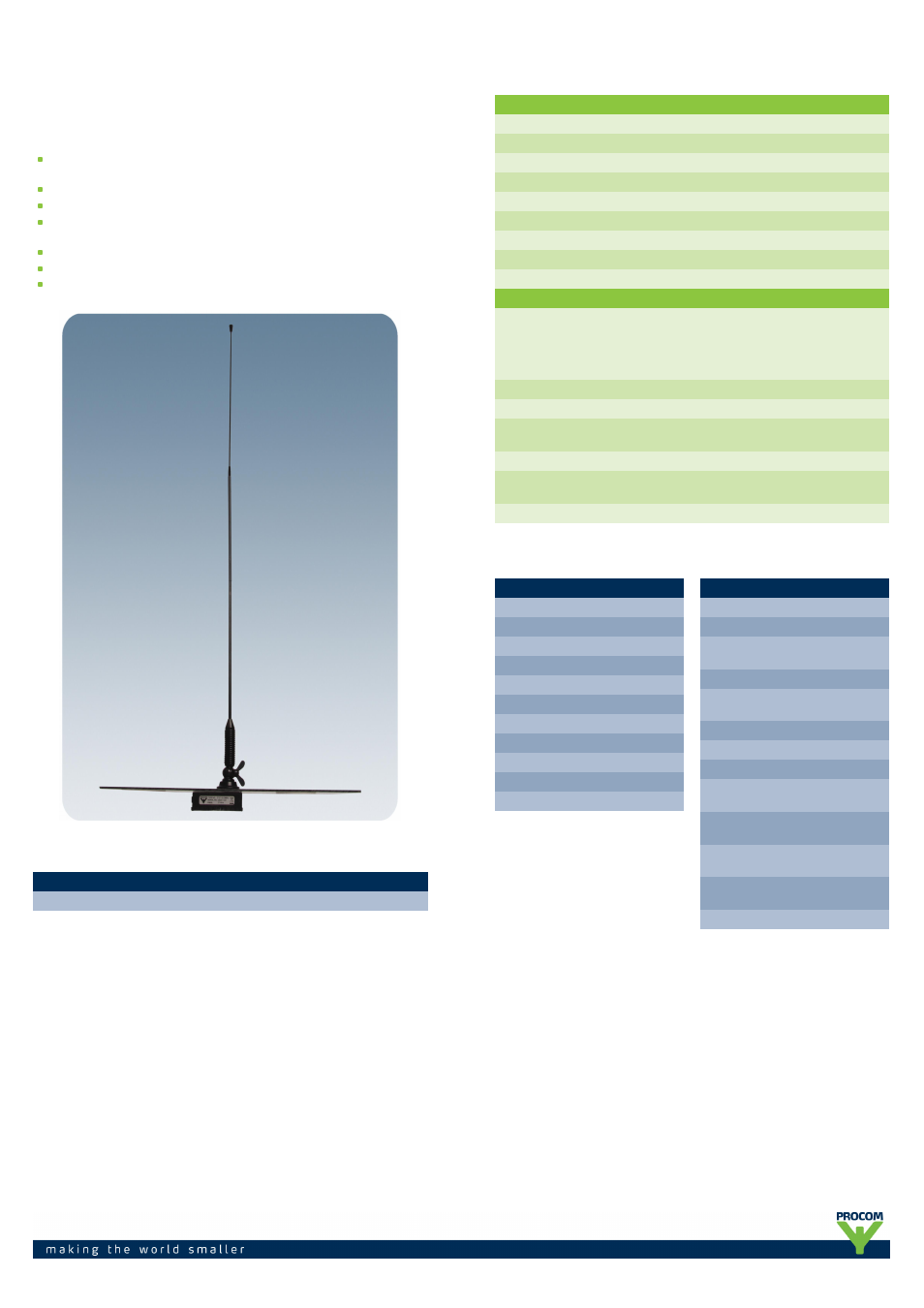

CT 27 1/2-BZ-BBMU
Mobile Roof Antenna for the 27 MHz Band
DESCRIPTION
Shortened high-performance half-wave mobile antenna for the 27 MHz
band for roof mounting, whip only 95 cm long.
For installation on glass fibre roofs - no ground plane required.
Broad-band matching unit placed under the roof.
High positioning gives performance equal to conventionally mounted
roof antenna.
Simple tuning procedure by trimming capacitor.
Easily removable whip for cleaning in car-washing machine.
Swivel joint for 180° angle adjustment.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
CT 27 1/2-BZ-BBMU 130001763
SPECIFICATIONS
ELECTRICAL
MODEL CT 27 1/2-BZ-BBMU
ANTENNA TYPE Shortened ½ λ mobile roof antenna
FREQUENCY 27 MHz band
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN Equal to shortened roof-mount antennas
BANDWIDTH ≥ 500 kHz @ SWR ≤ 2
SWR ≤ 1.5 @ f.res.
MAX. POWER 10 W
MECHANICAL
MATERIALS Whip:
Polyethylene-covered copper thread/glass fibre
Black-chromed brass
Spring:
Black-chromed stainless steel
CABLE FME-cable to be ordered separately
COLOUR Black
DIMENSIONS Antenna: Approx. 950 mm
BBMU(W x H x D): Approx. 52 x 27 x 80 mm
WEIGHT Approx. 340 g
MOUNTING On roof of agriculture machines or other vehicles with
non-conducting roof (22 mm hole required)
ROOF THICKNESS 5.0 – 7.0 mm
FME-SYSTEM ACCESSORIES
FME-CABLES
TYPE PRODUCT NO.
1 m FME 130000437
2 m FME 130000447
3 m FME 130000457
4 m FME 130000466
5 m FME 130000474
6 m FME 130000483
4 m FME-white 110000064
6 m FME-white 110000066
12 m FME-white 110000068
18 m FME-white 110000069
For further information about other
types of FME-cables and FME-
connectors, please compare the cable
and connector data sheets under
accessories in our catalogue.
FME-CONNECTORS
TYPE PRODUCT NO.
FME-FME 130000583
FME-P
(Prolongation)
130000565
FME-N 130000571
FME-FSMA
(Female-SMA)
130000578
FME-BNC 130000566
FME-TNC 130000569
FME-UHF 130000572
FME-MUHF
(Mini-UHF)
130000573
FME-EMUHF
(Elbow-MUHF)
130000582
FME-EBNC
(Elbow-BNC)
130000580
FME-ETNC
(Elbow-TNC)
130000581
FME-SMA 130000577
