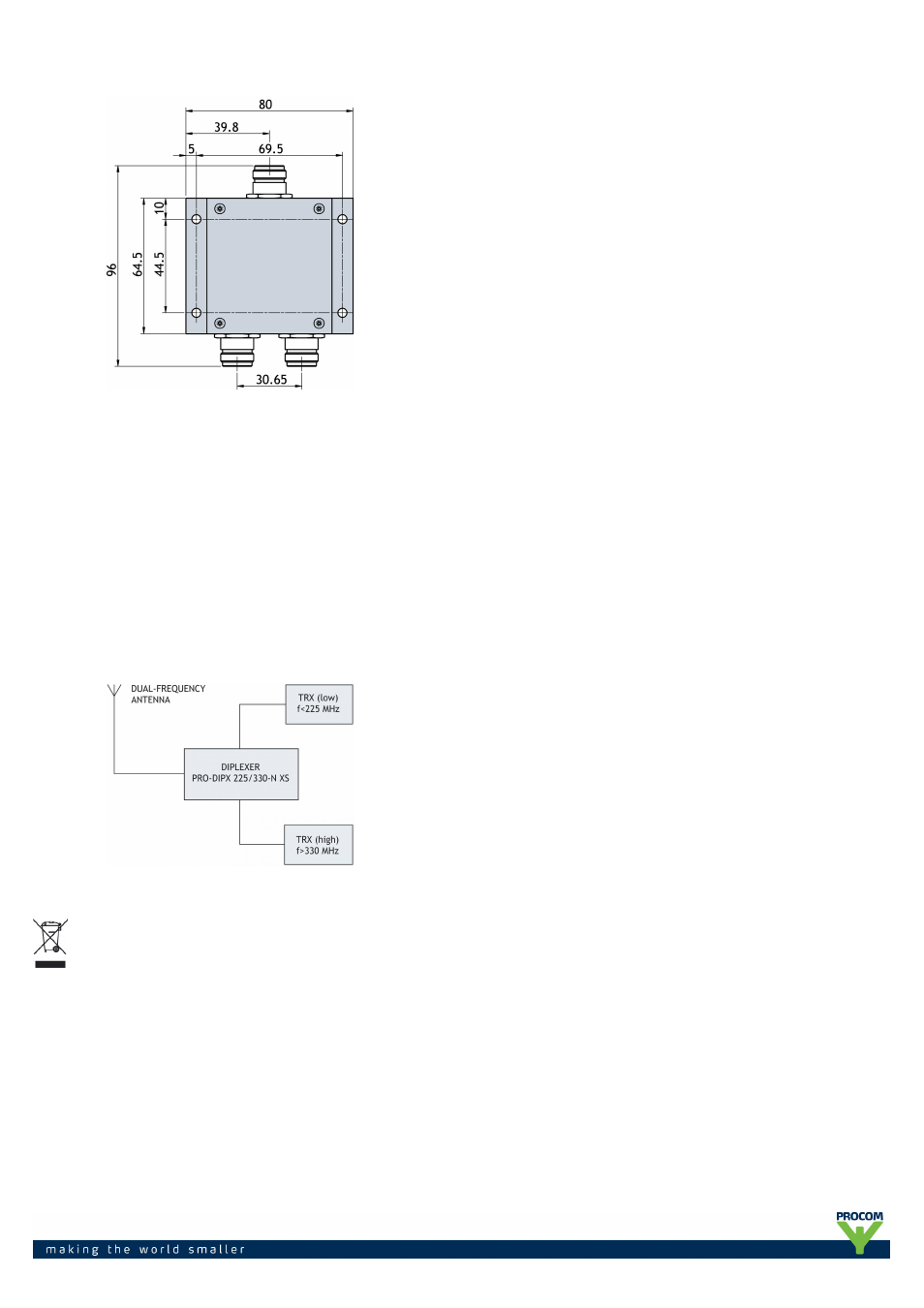

MOUNTING DETAILS
The PRO-DIPX 225/330-N XS makes it possible to use only one antenna for
the operation of two transceivers (one in each range). See the figure below.
The antenna must be a dual-frequency antenna, i.e. it must be resonant on
the actual frequencies in the two bands.
The transceivers may be used independently and will have no degrading
influence on each other. Typically, the diplexer is installed next to the
transceivers and only one cable is used between the diplexer and the
antenna. The diplexer is suitable both for base station and mobile use.
The main tasks of the diplexer are to protect the individual receiver input
from being destroyed by the transceiver in the contrary band and to ensure
a low-loss path between the transceiver and the antenna which is not
loaded by the other branch.
The diplexer can be operated together with any set of transceivers operating
within the 0 - 225 MHz and 330 - 1300 MHz frequency bands.
Dual-frequency antennas are available for both mobile and base station
applications.
