6-1
Ref.
No.
Description CBF100, CBF100DM CBF150, CBF150DM CBF200, CBF200DM
1 Control Valve, Complete, Less Bypass Valve W217530-003-0N W217530-003-0N W217750-003-0N
1a O-ring V3180 V3180 V3180
2 Bypass Valve V3006 V3006 V3006
3 Standard Media Tank w/Base 6236001-1044 6236001-1054 6236001-1252
3a Dome Hole Media Tank w/Base 6238601-1044 6238601-1054 6238601-1252
4 Distributor Tube 6236435 6236437 6236436
5 Gravel Underbed QC-15P QC-15P QC-18P
SECTION 6: COMPONENT PARTS LIST
Items Not Shown
Description of Item Part Number
Wrench V3193-01
Vertical Bypass Adapter V3191-01
Funnel U1006
Tube Extension Device and Cap CENTERINGTOOL
1” Plumbing Connection Fitting
- Straight Male NPT Fitting
- Straight Brass Sweat Connection
V3007-04
V3007-02

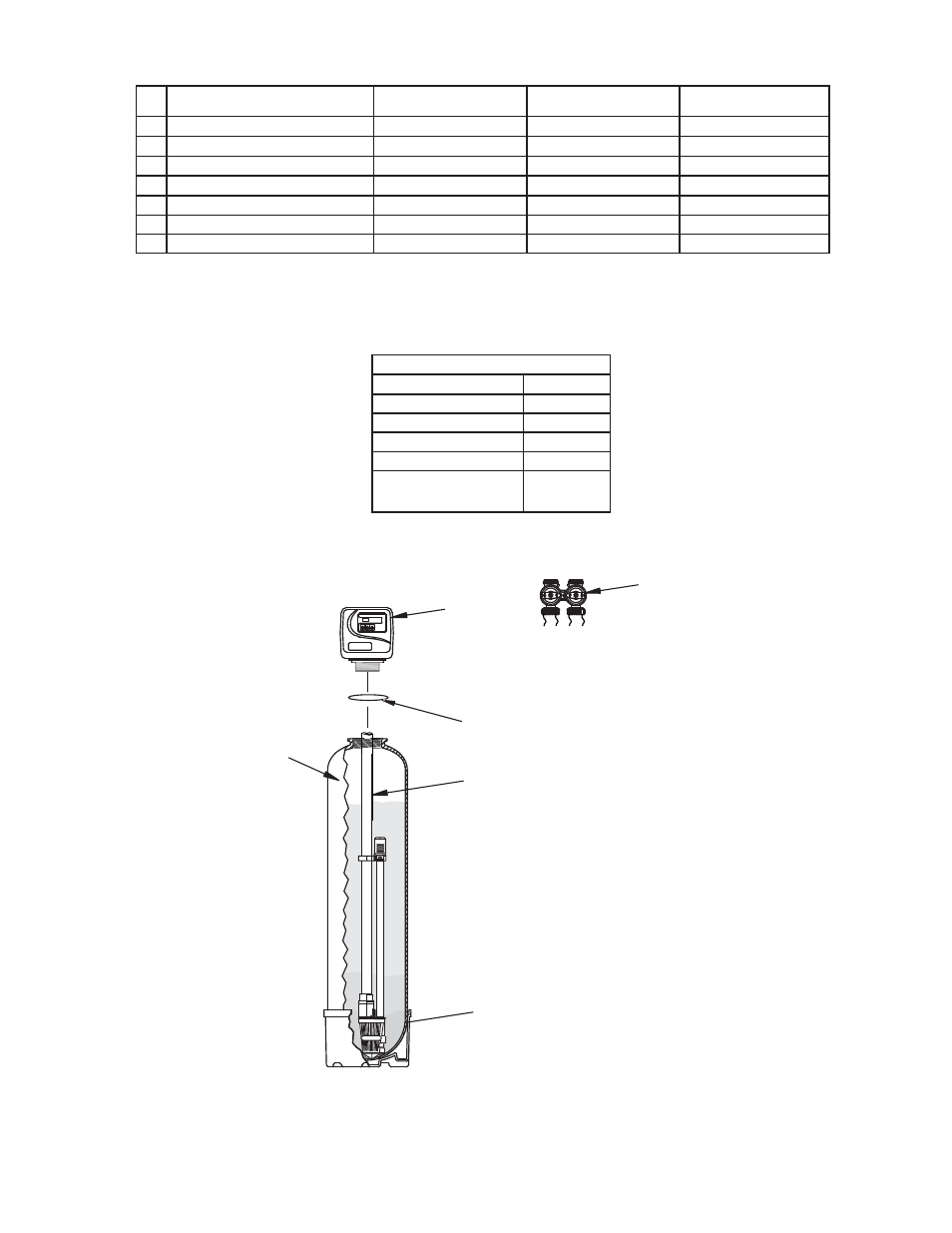

* see assembly drawings for individual components.
1
5
3
4
1a
2
