Promi-SD User Manual – 2. Configurations

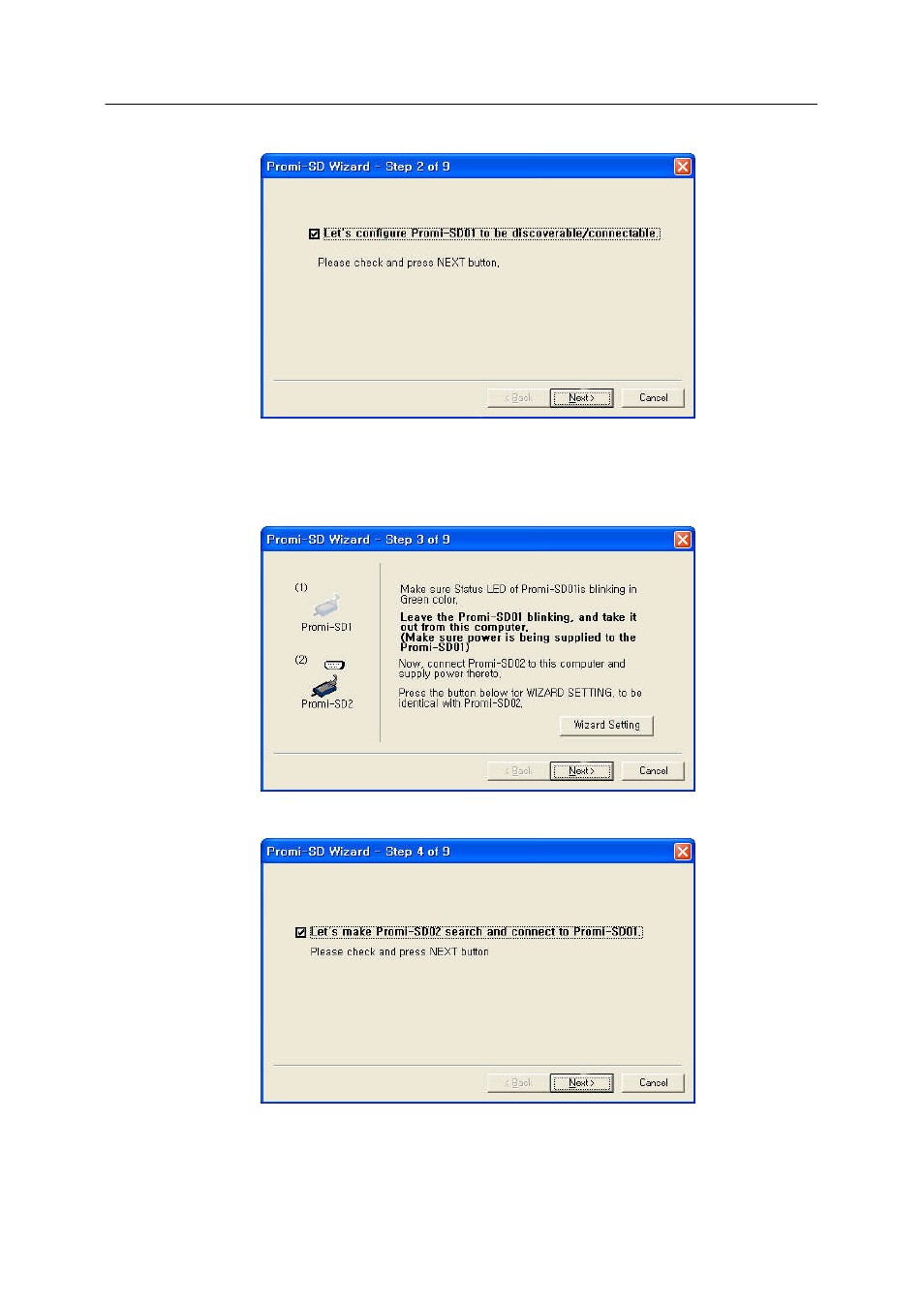

Click [Next] with marking in the check box. SD1 becomes in Scan mode, in which SD1 can be discovered and
connected from other Bluetooth device. Status (Promi -SD101/202) or Standby (Promi-SD205) LED will blink twice in green
every 3 seconds.

Take SD2 out of the host computer. Be careful to keep the power on.

Now, plug SD2 into the serial port of the host computer and power on.

Click [Wizard Setting] button to configure the serial settings of SD2. These settings must be same as those of the host
system, to which SD2 is used. Click [Next], then Status (Promi -SD101/202) or Standby (Promi-SD205) LED will be lit in red.

Click [Next] with marking in the check box. Status (Promi-SD101/202) or Standby (Promi-SD205) LED will blink in green.
SD2 begins to search nearby Bluetooth devices for 30 seconds. The program will show the Bluetooth devices with
Device Address, Device Name and CoD (Class of Device).
