10

2. Getting Started

This chapter describes how to set up the Parani-SD Series for the first time.
- 2.1 Panel Layout explains the panel layout.
- 2.2 Connecting the Hardware describes how to connect the power, the serial device, and the battery

pack (for Parani-SD200 only) to the Parani-SD Series.

Following items are required to get started:
- One DC power adapter, USB power cable or DC power cable (included in the package).
- One PC with RS232 serial port.
- Terminal emulation program running on the PC
- One battery pack and two ‘AA’ batteries (optional accessory for Parani-SD200 only)

2.1. Panel Layout

This section describes the panel layout of the Parani-SD.

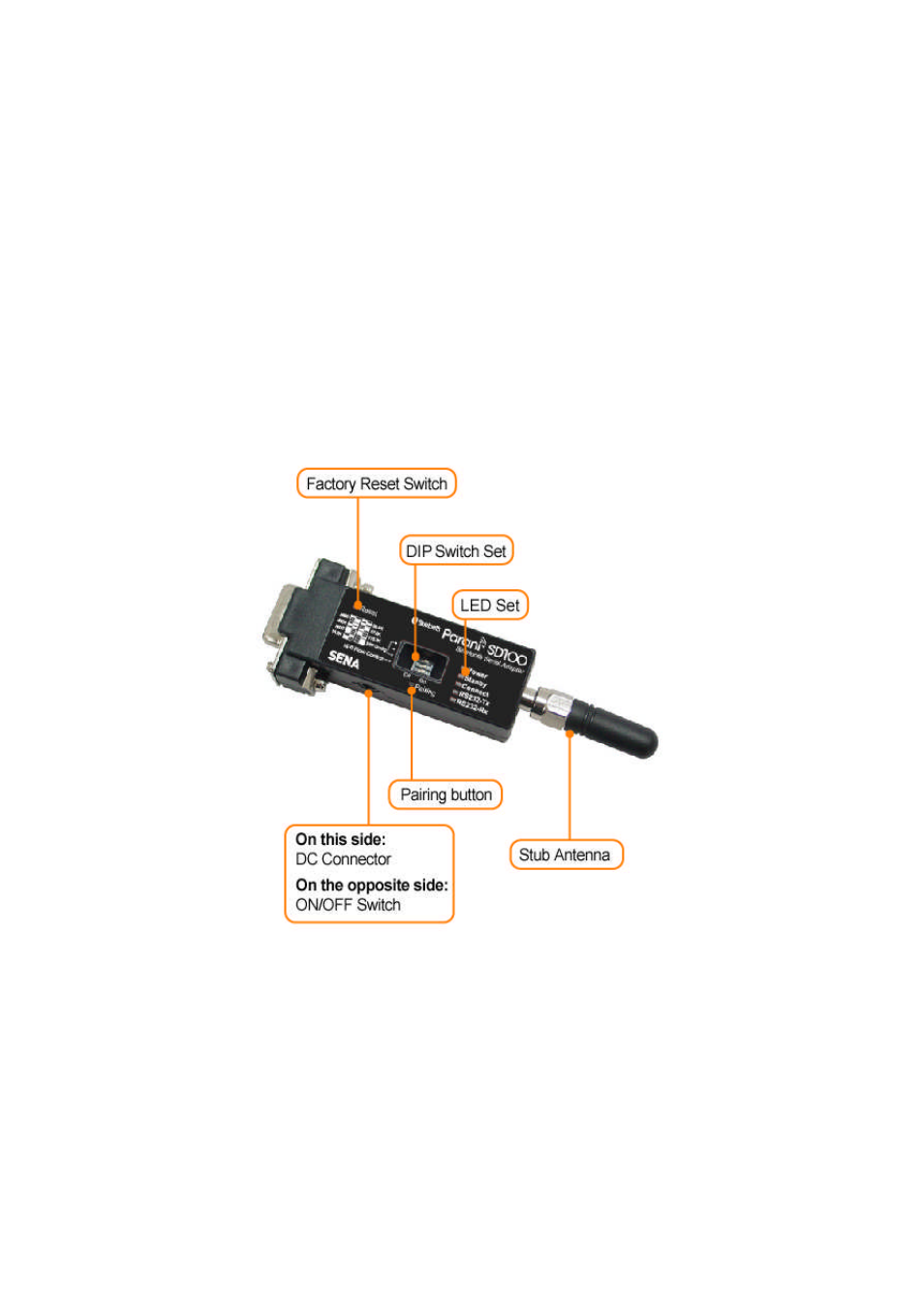

Figure Error! Style not defined.-1 The panel layout of Parani-SD100
