Zanussi ZBB24430SA - Manual (Page 24)

Hb
Ha
8 mm

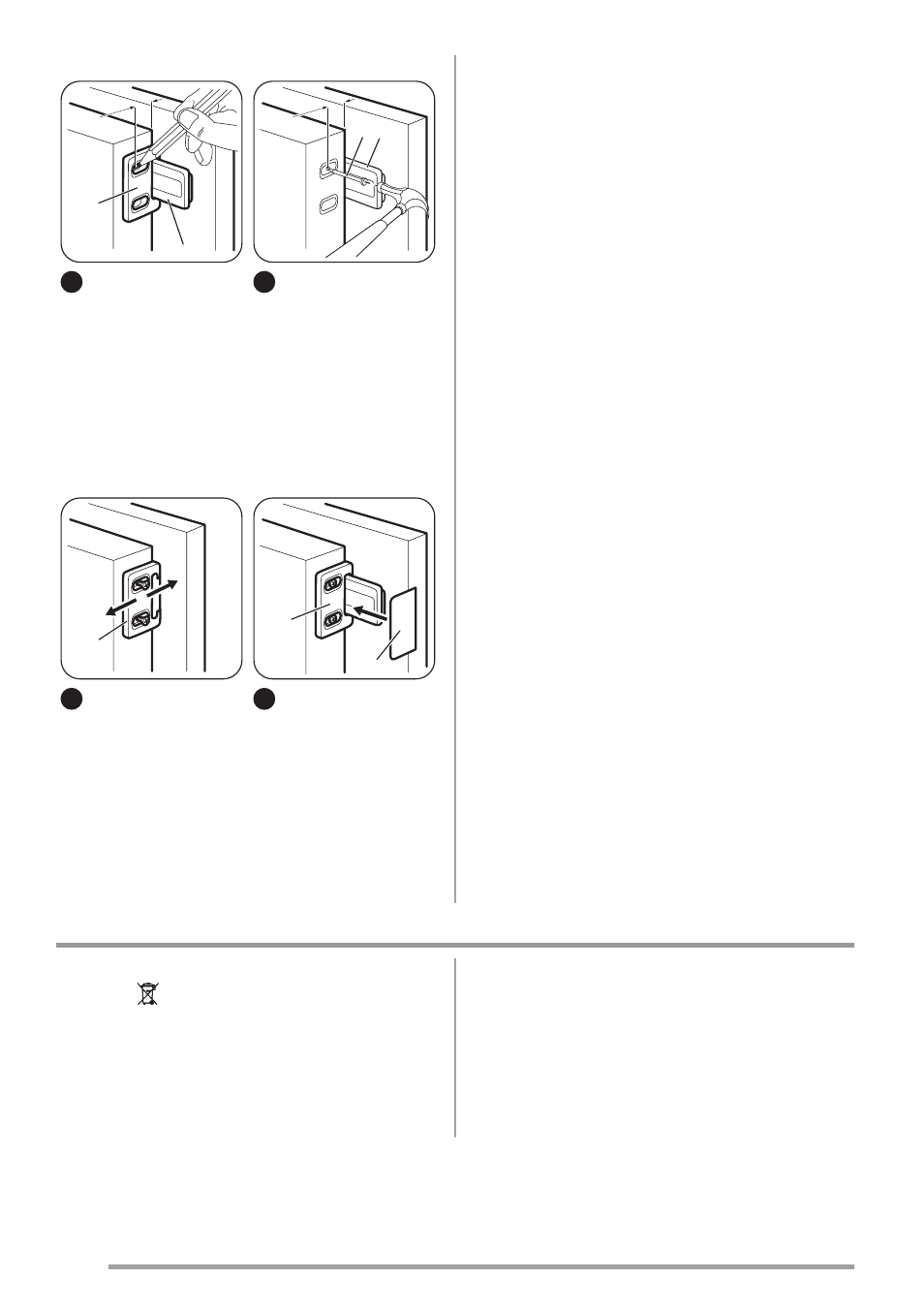

11 Open the appliance
door and the kitchen furni-
ture door at an angle of
90°.
Insert the small square
(Hb) into guide (Ha).
Put together the appliance
door and the furniture
door and mark the holes.
Ha
8 mm
K
12 Remove the brackets
and mark a distance of 8
mm from the outer edge of
the door where the nail
must be fitted (K).
Hb
13 Place the small square
on the guide again and fix
it with the screws sup-
plied.
Align the kitchen furniture
door and the appliance
door by adjusting the part
Hb.
Hb
Hd
14 Press the part (Hd) on
the part (Hb).
Do a final check to make sure that:
• All screws are tightened.
• The magnetic sealing strip is attached tightly to the
cabinet.
Important! If the ambient temperature is low (for example,
in the Winter), the size of the gasket decreases. The size of
the gasket increases when the ambient temperature
increases.
Environmental concerns
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of electrical
and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and human
health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed
information about recycling of this product, please contact
your local council, your household waste disposal service
or the shop where you purchased the product.
24
