ABY781N - Clayton™ 60” x 32” Soaker Bathtub
■ STYLE
Designed to match the our line of
residential bathroom products, TOTO’s
®
tubs complete any bathroom suite.
Lucite cast acrylic construction provides
the ultimate in strength and durability,
while a slip-resistant surface enhances
safety in the bath.
■ SPECIFICATIONS
Size: 60"L x 32"W
Depth: 21-3/8"
Warranty: 5 Year Limited Warranty
on Acrylic Tub
1 Year Limited Warranty
on Components and Parts
Material: Lucite Cast Acrylic
Shipping Weight:
ABY781N
110 lbs.
Shipping Dimensions:
ABY781N
67-1/4"L x 38-1/4"W
x 26"H
Gallons: ABY781N
65 to overflow
Fixture meets ANSI/ASME standard Z124.1,
ETL, and C-UPC requirements.
These dimensions and specifications are
subject to change without notice.
Use TOTO ® cut template to assure rough
in dimensions.
ABY781N
Clayton™ 60'' x 32'' Soaker Bathtub
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 02/06 #DXXXXX
Printed on recycled paper
REV 02/06

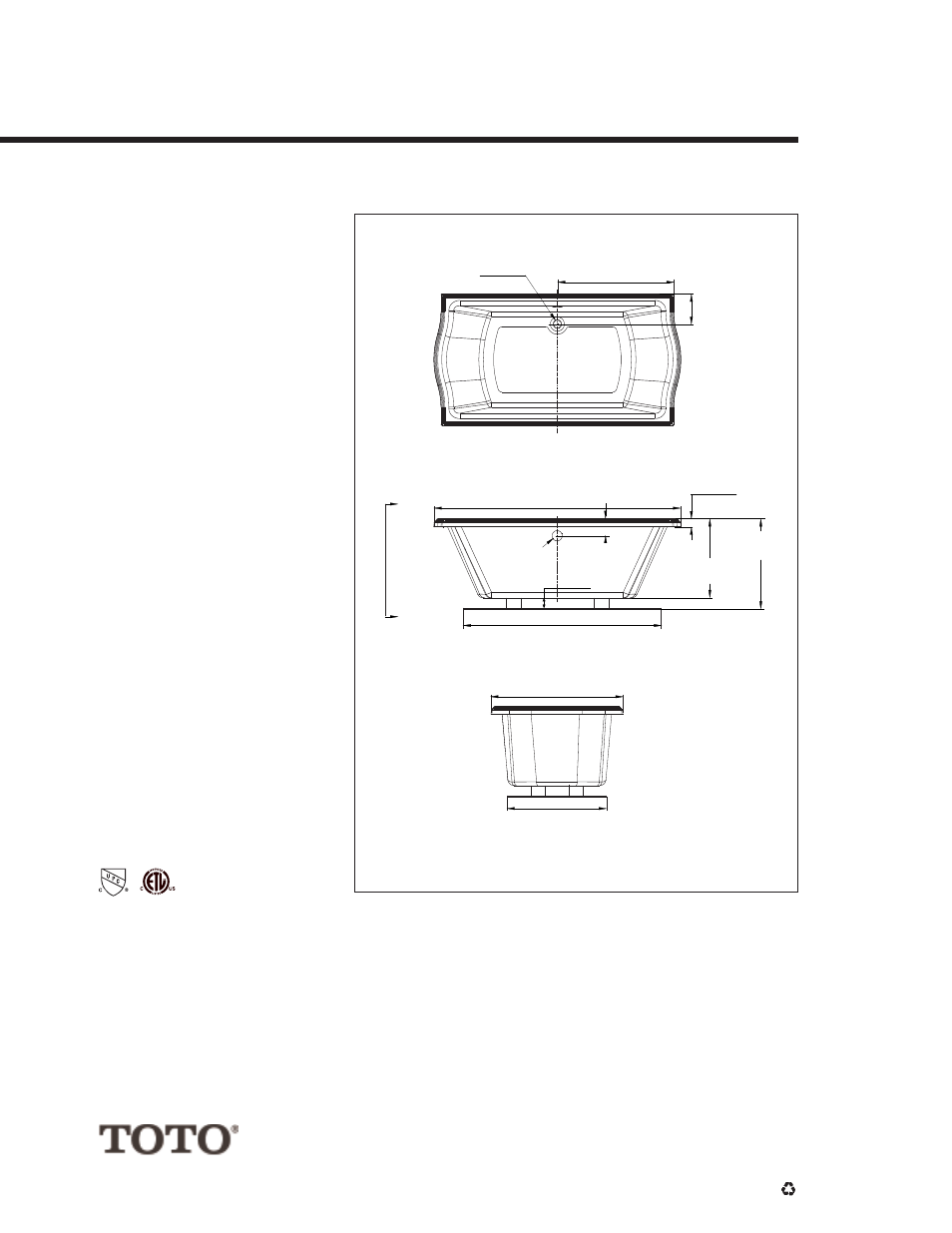

2”
(51mm)
24-3/8”
(619mm)
21-3/8”
(543mm)
7-3/8”
(188mm)
2 1/4” (718mm)
ø
) C
C
2”
(51mm)
3”
(76mm)
24-3/8”
(619mm)
21-3/8”
(543mm)
7-3/8”
(188mm)
28-1/4” (718mm)
ø1-7/8”
(48mm)
60” (1524mm)
48” (1219mm)
32” (813mm)
24” (610mm)
SECTION C-C
ø2-1/2”
(64mm)
4-1/4”
(108mm)
