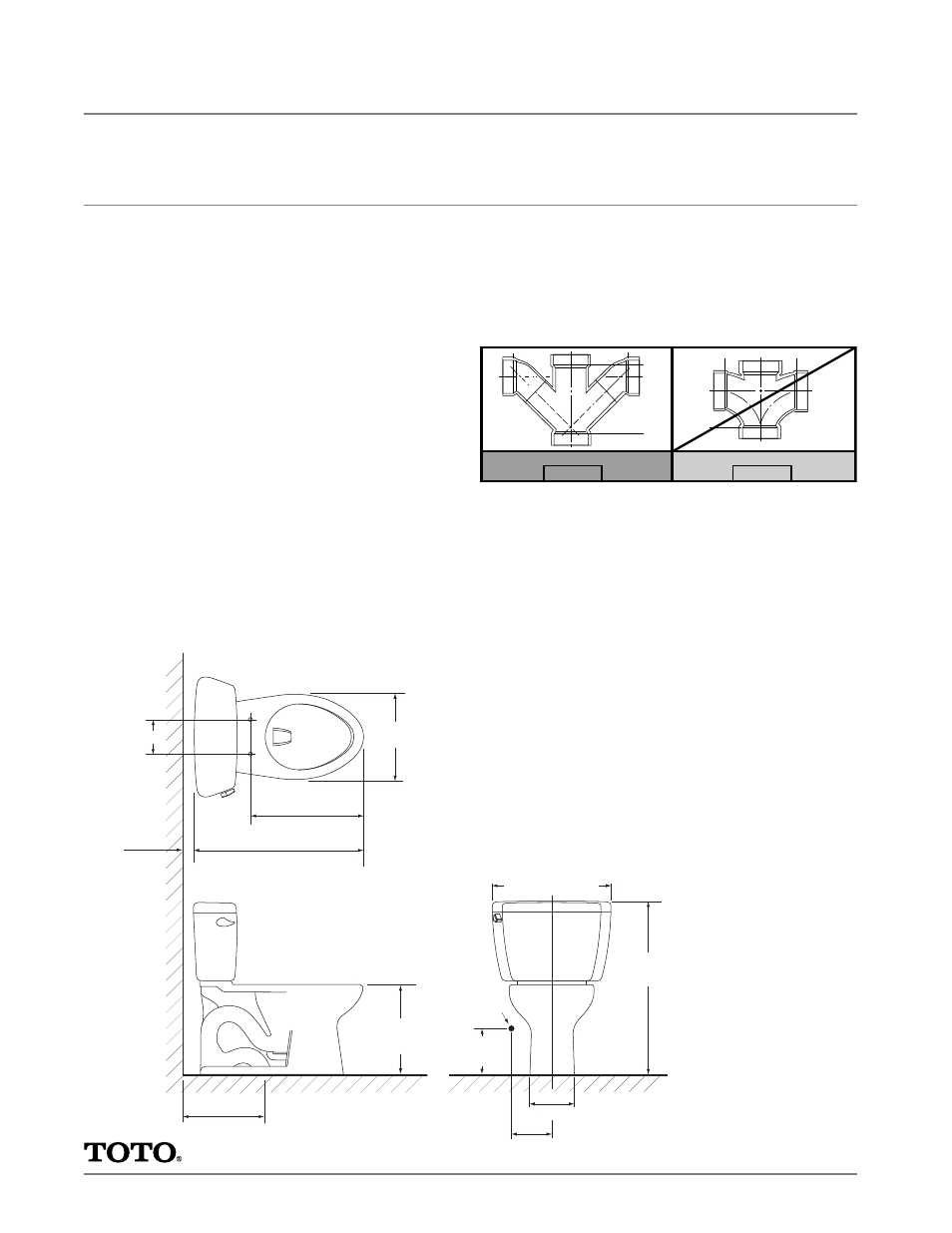

SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System E-Max ®
• Min. Water Pressure 8 psi (static)
• Water Surface 10-1/4" x 8-1/2"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-3/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight C744E(G) - 52lbs
ST743E(R)(B) - 35lbs
• Shipping Dimensions C744E(G)
29-1/2"L x 16"W1
x 10-1/4"W2 x 18-1/4"H
ST743E(R)(B)
20-1/8"L x 8-1/4"W
x 15-1/2"H
CST744E(G)(R)(B)
Eco Drake ® Close Coupled Toilet, 1.28GPF/4.8 GPF
Double Sanitary Tee / Sanitary Cross Double Combination Wye / 1/8 Bend
YES NO
# SS-00215 v.04
Printed in U.S.A. | © TOTO USA 02/10 | Printed on recycled paper ƛ
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
These dimensions and specifi cations are subject to change without notice
14-5/8"
(370mm)
12" (305mm)
28" (710mm)
18-1/2" (470mm)
1-1/8"
(30mm)
5-1/2" (140mm)
14"
(355mm)
19-1/2" (494mm)
9"
(228mm)
28-1/2"
(724mm)
*8"
(202mm)
1/2" Supply
*6"
(153mm)
