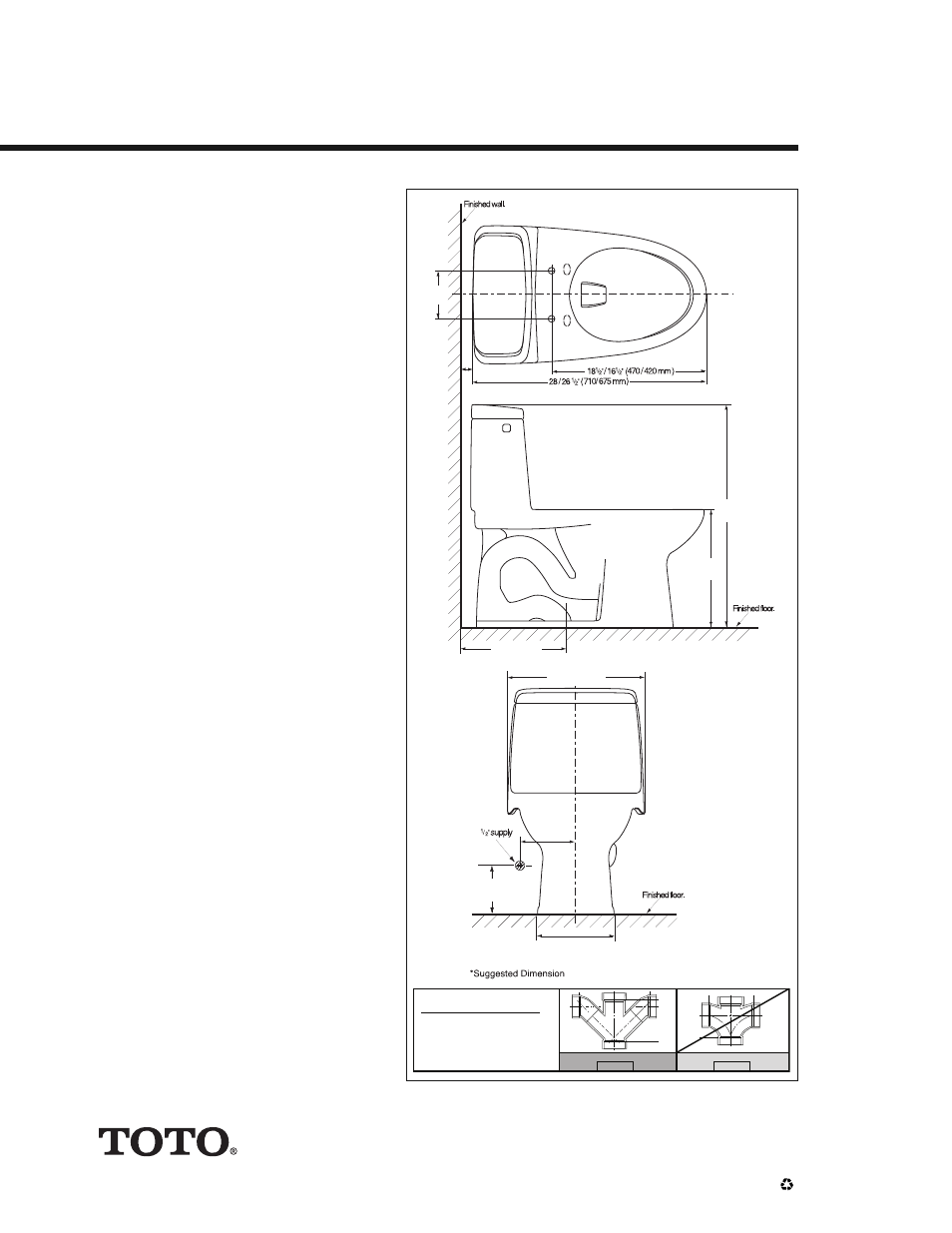

MS854114S(G) / MS853113S(G) - UltraMax Toilet with SoftClose Seat

PERFORMANCE

The TOTO G-Max System offers outstanding

commercial grade performance. The TOTO low

consumption one piece toilet received high ratings

during ANSI/ASME testing at independent

laboratories. Designed with a powerful siphon jet

flushing action, the bowl offers a large water

surface and a 100% glazed trapway.

SPECIFICATIONS

Water Use:

1.6 Gpf / 6.0Lpf

Flush System:

Gravity Feed

(G-Max System)

Min. Water Pressure:

8 psi (Static)

Water Surface: 10

1

/

4

" x 8

1

/

4

"

Trap Dia.:

2

1

/

8

"

Rough-in:

12"

Trap Seal:

2

5

/

8

"

Warranty:

One Year Limited Warranty

Material:

Vitreous China

Shipping Weight: MS854114S(G) / MS853113S(G)

89 lbs. (Includes SoftClose Seat)

Shipping Dimensions:

MS854114S(G) / MS853113S(G)

30

3

/

4

"L x 18

1

/

8

"W x 27

1

/

8

"H

Fixture dimensions and hydraulic performance meet

or exceed ANSI/ASME standard A112.19.2M and

CAN/CSA B 45 requirements.

Listing / Approvals: IAPMO/UPC, CSA, City of Los

Angeles, State of Massachusetts, and others.

These dimensions and specifications are subject to

change without notice.

U.S. Patent:

D379.496

D406.329

5.918.325

5.983.413

MS854114S(G) / MS853113S(G)

UltraMax One Piece Toilet, 1.6 GPF

(MS854114S / MS853113S)

(MS854114 S/ MS853113S)

TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260

Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com

Printed in U.S.A. © TOTO LTD. 08/03 #A10090

Printed on recycled paper

REV 03/09

Double Sanitary Tee / Sanitary Cross

Double Combination Wye / 1/8 Bend

YES

NO

Important Note:

Back-to-Back Toilet Installations:

TOTO USA, Inc. recommends the use

of a nationally listed, double sanitary

tee-wye only, in vertical waste stacks,

in accordance with the stipulations noted

in the majority of nationally recognized

plumbing codes.

!
