SPECIFICATIONS
• Water Use 1.6 GPF & 1.0GPF
(6.0 LPF & 3.8LPF)
• Flush System Dual-Max
• Min. Water Pressure 8 psi (fl owing)
• Water Surface 7-3/8" x 9-3/8"
• Trap Diameter 1-7/8"
• Rough-in 12"
• Trap Seal 2"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight C405F - 47lbs
ST405M - 35lbs
• Shipping Dimensions C405F 26-1/2" x 16" x 17"
ST405M 20-1/2” X 8” X 18-3/4”

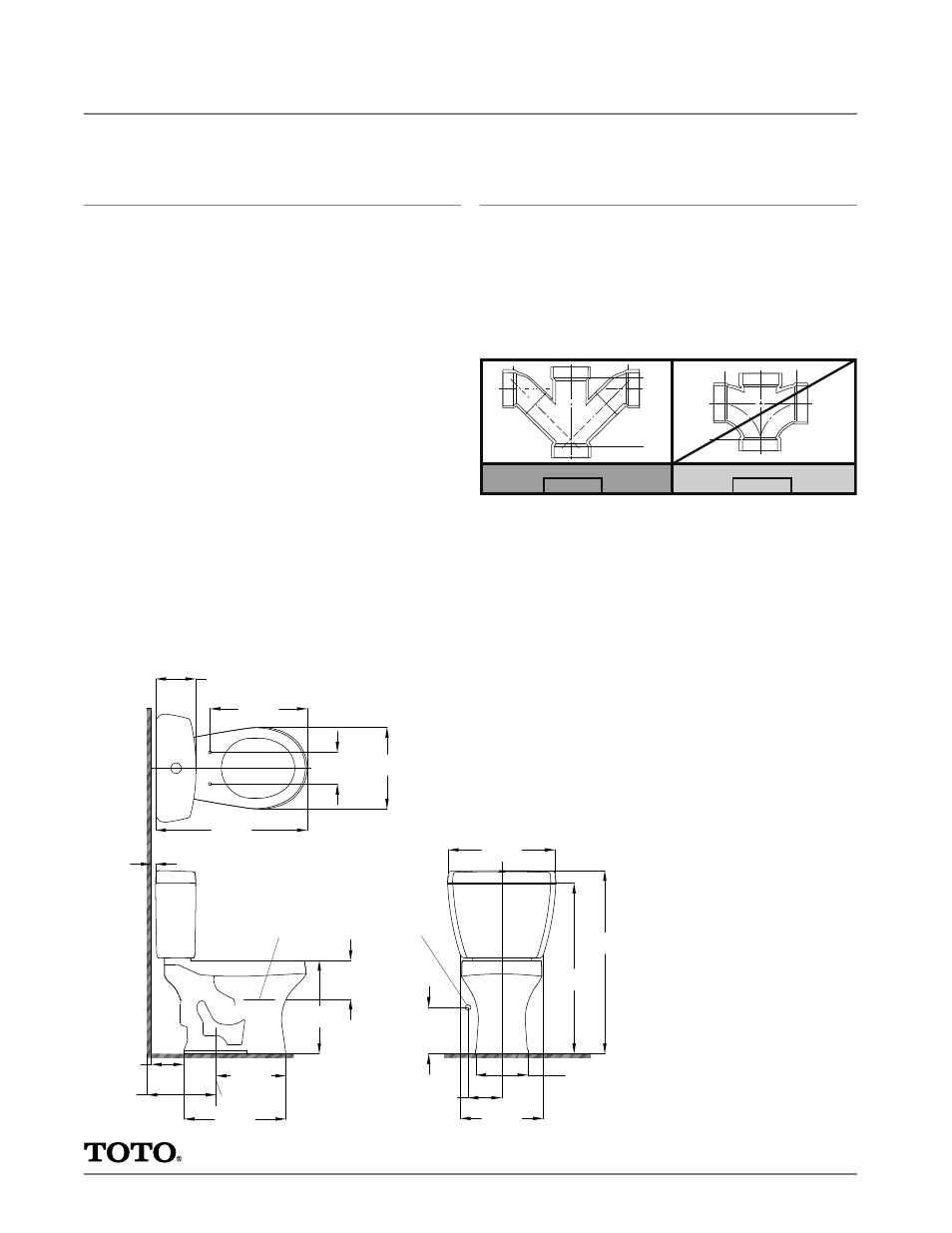

CST405MF
Rowan ™ High-Effi ciency Toilet, 1.6GPF & 1.0 GPF
*16 1/8"
(410mm)
31 11/16"
(805mm)
9 1/16"
(230mm)
18 1/2"
(470mm)
5 7/8"
(149mm)
8"
(203mm)
12"
(304mm)
16 7/8"
(428mm)
14 3/16"
(360mm)
5 1/2"
(140mm)
26 1/4"
(667mm)
7"
(177mm)
3/4"
(20mm)
6 11/16"
(170mm)
WATER LEVEL
C/L OF OUTLET
12 1/8"
(307mm)
17 5/8"
(448mm)
5 11/16"
(145mm)
SUPPLY AS REQ'D
14 3/8"
(366mm)
29 1/2"
(750mm)
*
* SUGGESTED DIMENSION
* FLOOR TO SEAT HEIGHT
W/ SS113 SEAT: 17-1/4"
Double Sanitary Tee / Sanitary Cross Double Combination Wye / 1/8 Bend
YES NO
# SS-00577 V.01
Printed in U.S.A. | © TOTO USA 02/12 | Printed on recycled paper ♻
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
These dimensions and specifi cations are subject to change without notice
