CT705EN(G)
Flushometer Toilet, 1.28GPF when used with
High Efficiency 1.28GPF Flushometer Valve)
# SS-00452 v.04
Printed in U.S.A. | © TOTO USA 06/09 | Printed on recycled paper ♻
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifications are subject to change without notice
• Water Use 1.28GPF/4.8LPF
• Flush System Siphon jet flushing action
• Min. Water Pressure 35 psi (flowing)
• Min. Flow Rate
23 GPM
• Water Surface 10-1/4" x 9-5/8"
• Trap Diameter 1-7/8"
• Rough-in 12", or 10"
• Trap Seal 2-3/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CT705EN(G) - 52.5lbs

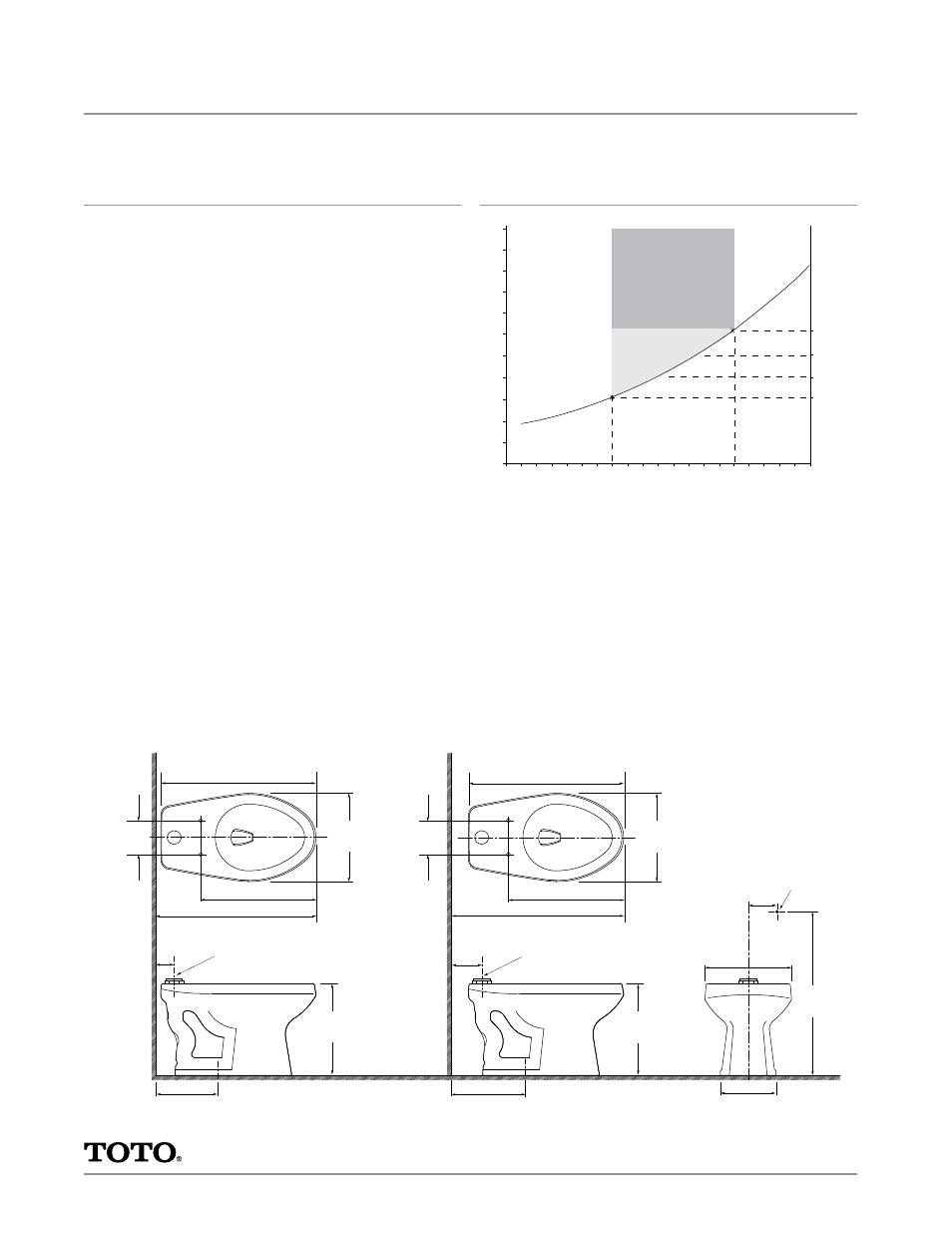

• Shipping Dimensions CT705EN(G)
26-1/2"L x 9-1/2" W 1 x 16-
1/4"W 2 x 17"H
14-3/8"
(365mm)
9-1/8"
(232mm)
1" (25.4mm)
I.P.S.
4-3/4"
(121mm)
26-1/2"
(673mm)
15"
(380mm)
12"
(305mm)
10"
(254mm)
15"
(380mm)
3"
(76mm)
5"
(127mm) 1-1/2" (38mm)
I.P.S.
18-1/2" (470mm)
28-1/8" (714mm)
14-3/8"
(365mm)
5-1/2"
(140mm)
25-1/4" (642mm)
18-1/2" (470mm)
26-1/8" (663mm)
14-3/8"
(365mm)
5-1/2"
(140mm)
25-1/4" (642mm)
1-1/2" (38mm)
I.P.S.
with 10" rough-in with 12" rough-in
Flowing Pressure (psi
)
Screw
Adjustment (turn)
Flow Rate (Gpm)
5
10 15 20 25 30
10
15
20
25
30
35
ORIGINAL
POSITION
3/4 CCW
1/4 CCW
1/2 CCW
40
45
55
50
60
MINIMUM OPERATING
RANGE WITH SCREW
ADJUSTMENT
OPERATING RANGE
WITHOUT SCREW
ADJUSTMENT
Water pressures over 80 psi are not recommended for
most plumbing fixtures.
SPECIFICATIONS INSTALLATION NOTES
