TOTO

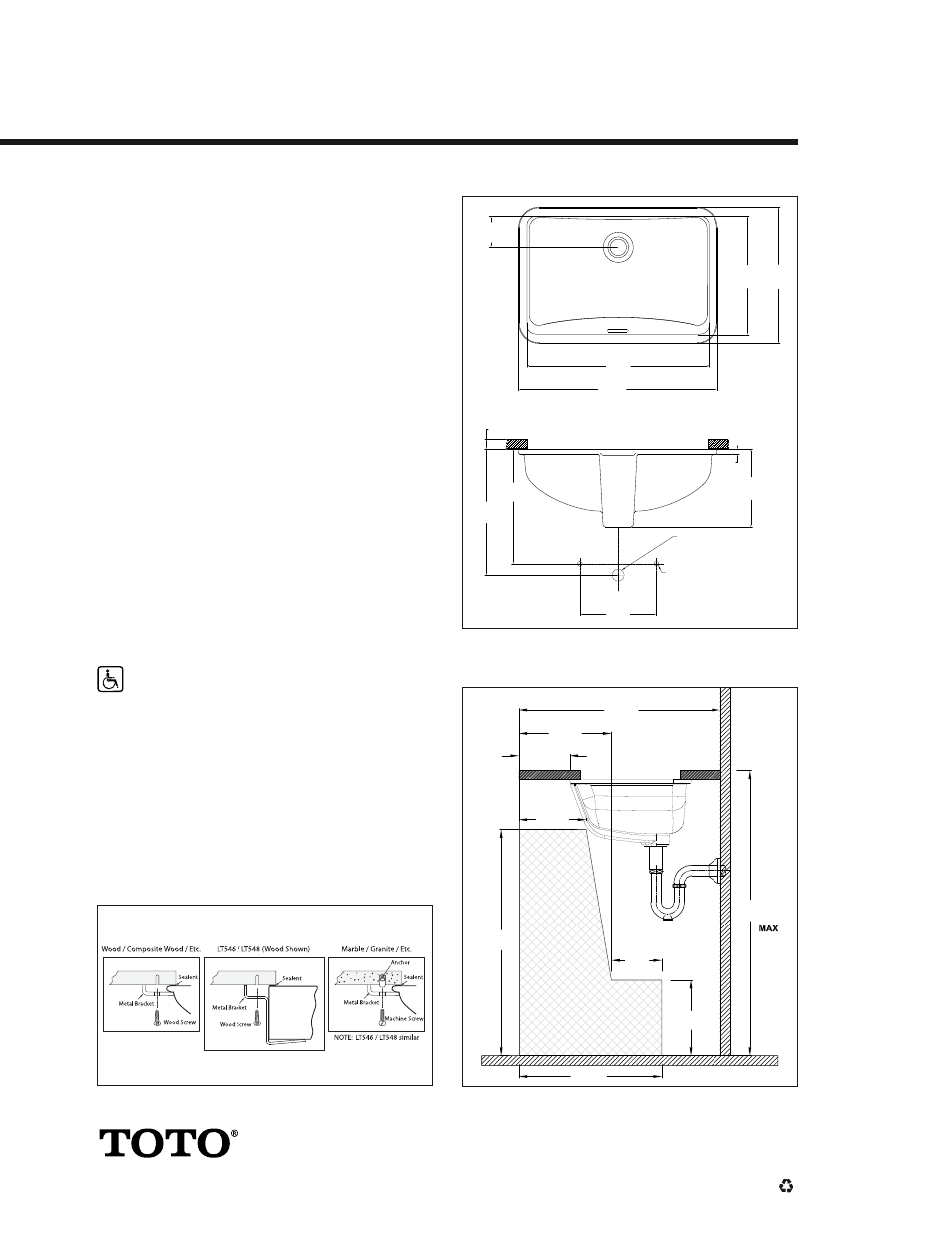

3-1/4”
(82mm)
20-7/8”
(529mm)
19”
(483mm)
14-3/8”
(364mm)
12-3/8”
(316mm)
*12”
(305mm)
*13-1/8”
(335mm)
1”
(25mm)
1-1/4”
Waste
Outlet
Supplies
*8”
(203mm)
*Suggested Dimension
1/2”
(13mm)
8-1/8”
(206mm)
LT542G
■ DESIGN
Space saving rectangle undercounter design ideal
for narrow countertops.
■ FUNCTION
Durable vitreous china offers years of quality use.
■ SPECIFICATIONS
Waste: 1-1/4" O.D.
Size:
20-7/8"W x 14-3/8"D
Basin: 19"W x 12-3/8"D
Material: Vitreous china
Warranty: Five Year Limited Warranty
Shipping Weight: LT542G 19 lbs.
Shipping Dimensions: LT542G
24"W x 17-1/8"D
x 8-5/8"H
Fixture dimensions meet ANSI/ASME standard
A112.19.2 and CAN/CSA B 45 requirements.
Listing / Approvals: IAPMO/UPC, City of Los Angeles,
State of Massachusetts, c-UPC for Canada, and others.
Meets the American Disabilities Act Guidelines and ANSI
A117.1 requirements when countertop installed 864mm
(34") from finished floor and lavatory installed 152mm
(6") minimum from front edge.
These dimensions and specifications are subject to
change without notice.
LT542G
Undercounter Lavatory
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 10/07 #C30505
Printed on recycled paper
REV 03/06
