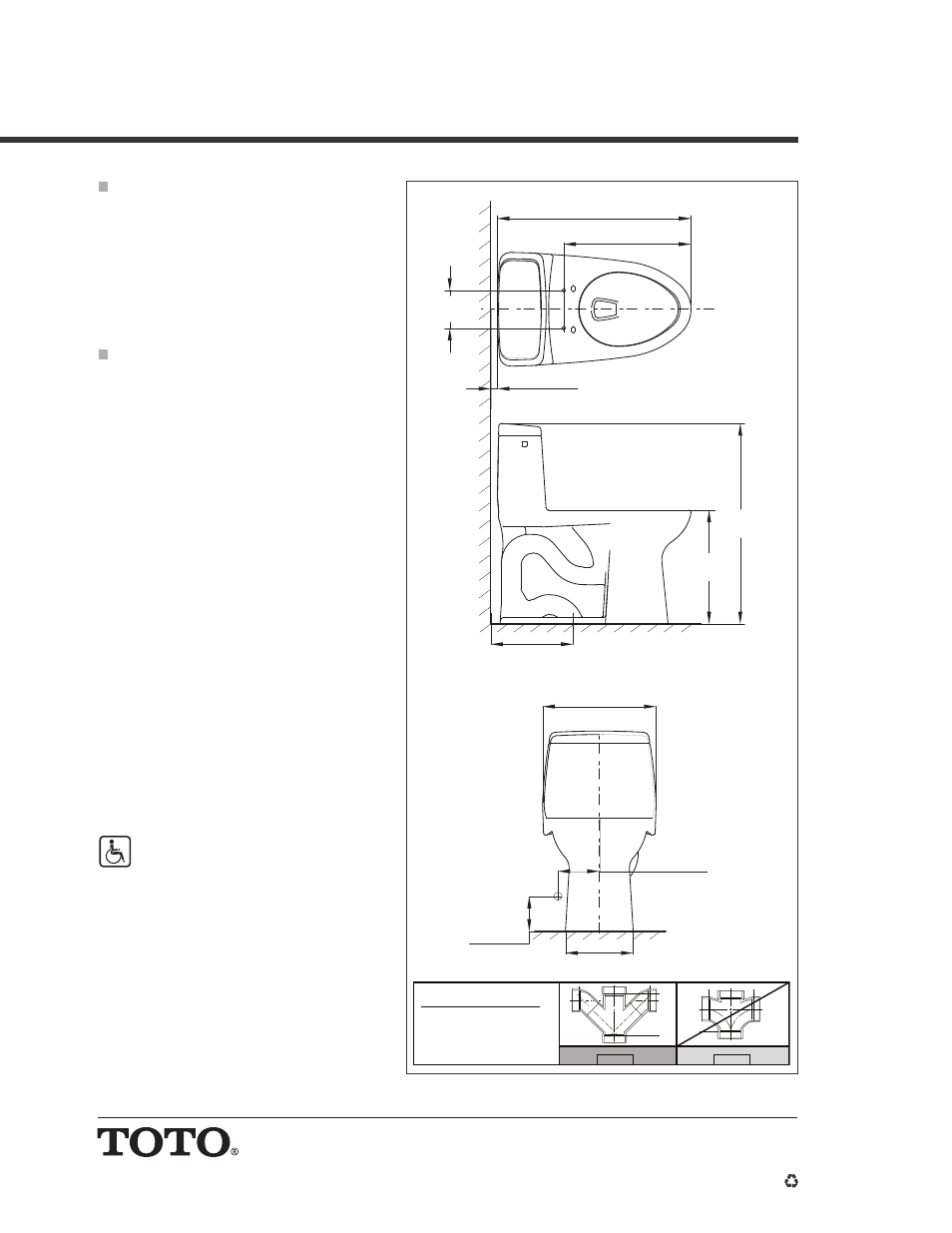

5-1/2"
(140mm )
1" (25mm)
18-1/2" (470mm)
28-1/4" (715mm)
29-1/4"
(740mm)
16-1/2"
(420mm)
12" (305mm )
16-1/2" (420mm)
9-3/4" (250mm)
6" (153mm)
5" (130mm)
MS854114SL - Ultramax® ADA Height Toilet with SoftClose® Seat
PERFORMANCE
The TOTO
®
G-Max
®
system offers outstanding
commercial grade performance. The TOTO
®
low
consumption one piece toilet received high ratings
during ANSI/ASME testing at independent
laboratories. Designed with a powerful siphon jet
flushing action, the bowl offers a large water
surface and a 100% glazed trapway.
SPECIFICATIONS
Water Use:
1.6 Gpf / 6.0 Lpf
Flush System:
Gravity Feed
(G-Max
®
System)
Min. Water Pressure:
8 psi (Static)
Water Surface:
10-5/16" x 8-1/4"
Trap Dia.:
2-1/8"
Rough-in:
12"
Trap Seal:
2-5/8"
Warranty:
One Year Limited Warranty
Material:
Vitreous China
Shipping Weight: MS854114L
99 lbs.
Shipping Dimensions:
MS854114L
31-3/8"L x 19-5/16"W
x 28-15/16"H
Fixture dimensions and hydraulic performance meet
or exceed ANSI/ASME standard A112.19.2 and
CAN/CSA B 45 requirements.
Listing / Approvals: C-UPC, City of Los Angeles,
State of Massachusetts, and others.
Meets the American Disabilities Act Guidelines and
ANSI A117.1 requirements where installed so top of
seat is 17”-19” from the finished floor. For
installation condition with approach from the left
hand side.
These dimensions and specifications are subject to
change without notice.
MS854114SL
Ultramax® One Piece Toilet, ADA Height, 1.6 GPF
Printed on recycled paper
TOTO
®
U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 10/05 #A10250
SS-00370, V.02
Double Sanitary Tee / Sanitary C ross
Double C ombination Wye / 1/8 Bend
YES
N O
Important Note:
Back-to-Back Toilet Installations:
TOTO USA, Inc. recommends the use
of a nationally listed, double sanitary
tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted
in the majority of nationally recognized
plumbing codes.
!
