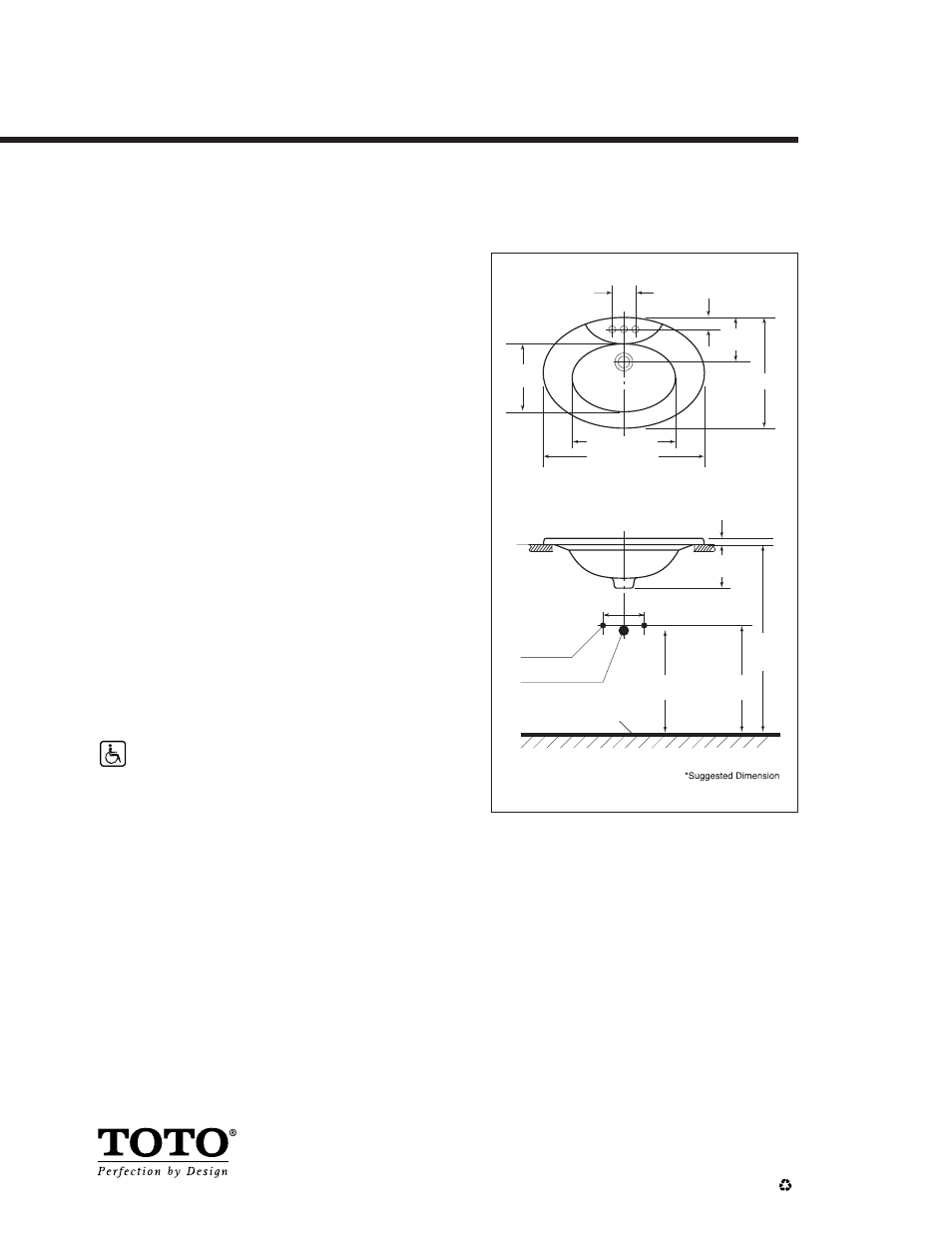

SUPPLIES
1-1/4" O.D. WASTE
4"(102mm)
1" (25mm)
6-7/8"
(175mm)
8"*(203mm)
32" to 34"
(813mm to
864mm)*
20-7/8"
(530mm)*
19-1/8"
(485mm)*
Finished floor
2-3/8" (60mm)
7-1/2"
(190mm)
17-7/8" (455mm)
25-5/8" (650mm)
10-5 /8"
(270mm)
16-1/2" (420mm)
LT909.4 - Pacifica Self Rimming Lavatory
■ DESIGN
Luxurious, wide basin with distinctive styling.
Pacifica self rimming lavatories are designed to match
the Pacifica Suite One Piece Toilet. Durable vitreous
china offers years of quality use.
■ SPECIFICATIONS
Waste: 1-1/4" O.D.
Size: 25-5/8"W x 17-7/8"D
Basin: 16-1/2"W x 10-5/8"D
Warranty: Five Year Limited Warranty
Material: Vitreous china
Shipping Weight: LT909 / LT909.4 / LT909.8
22 lbs.
Shipping Dimensions: LT909 / LT909.4 / LT909.8
26-3/8"L x 18-3/4"W x 10"H
Fixture dimensions meet ANSI/ASME standard
A112.19.2M and CAN/CSA B 45 requirements.
Listing / Approvals: IAPMO/UPC, CSA, City of Los
Angeles, State of Massachusetts and others.
Meets the American Disabilities Act Guidelines and
ANSI A117.1 requirements when lavatory rim installed
864mm (34") from finished floor and front of lavatory
51mm (2") minimum from front edge.
These dimensions and specifications are subject to
change without notice.
LT909
Pacifica Self-Rimming Lavatory
